Singer 398054 - TWIN NEEDLE SEWING AND NEEDLE POSITION; Twin Needle Usage and Position Adjustment

EN– 35

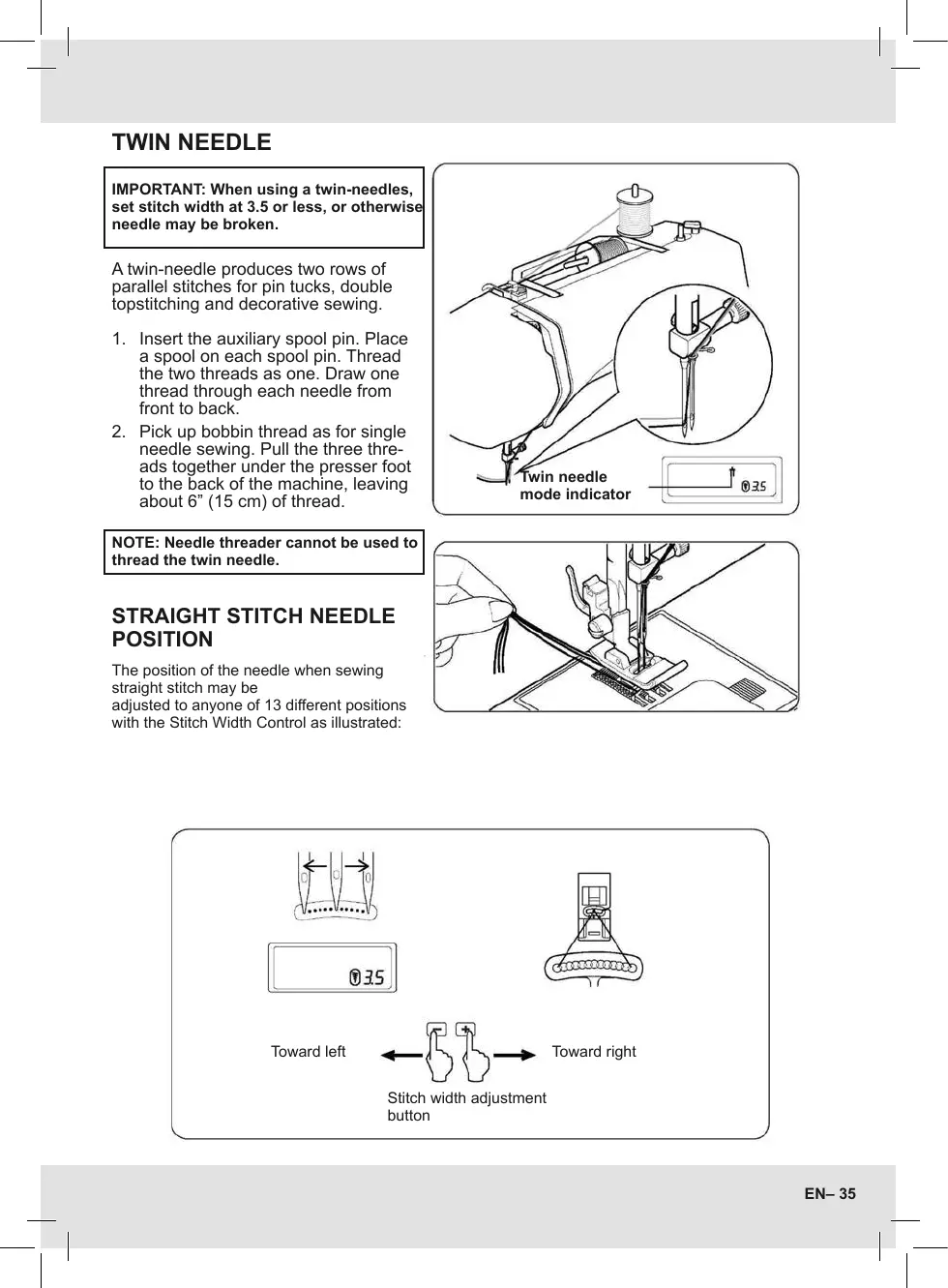

TWIN NEEDLE
IMPORTANT: When using a twin-needles,
set stitch width at 3.5 or less, or otherwise
needle may be broken.
A twin-needle produces two rows of
parallel stitches for pin tucks, double
topstitching and decorative sewing.
1. Insert the auxiliary spool pin. Place
a spool on each spool pin.
Thread
the two threads as one. Draw one
thread through each needle from
front to back.
2. Pick up bobbin thread as for single
needle sewing. Pull the three thre-
ads together under the presser foot
to the back of the machine, leaving
about 6” (15 cm) of thread.
NOTE: Needle threader cannot be used to
thread the twin needle.
STRAIGHT STITCH NEEDLE
POSITION
The position of the needle when sewing
straight stitch may be
adjusted to anyone of 13 di󰀨erent positions
with the Stitch Width Control as illustrated:
Twin needle
mode indicator
Toward left
Stitch width adjustment
button
Toward right
