Singer 398054 - MACHINE CONFIGURATION AND BOBBIN WINDING; Free-Arm Conversion and Bobbin Winding

EN– 9

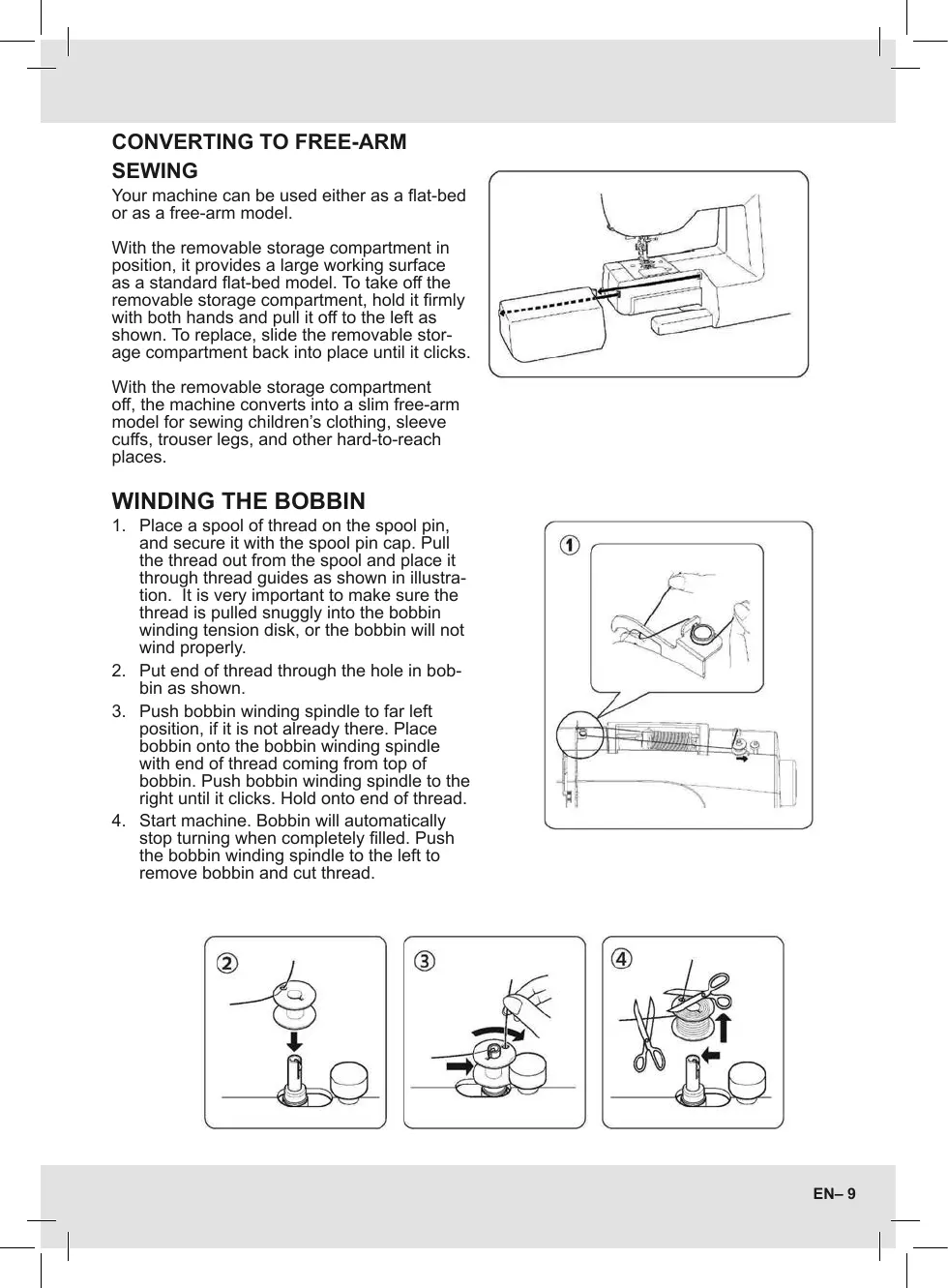

CONVERTING TO FREE-ARM
SEWING
Y
our machine can be used either as a at-bed
or as a free-arm model.
With the removable storage compartment in
position, it provides a large working surface
as a standard at-bed model. To take o󰀨 the
removable storage compartment, hold it rmly
with both hands and pull it o󰀨 to the left as
shown. To replace, slide the removable stor-
age compartment back into place until it clicks.
With the removable storage compartment
o󰀨, the machine converts into a slim free-arm
model for sewing children’s clothing, sleeve
cu󰀨s, trouser legs, and other hard-to-reach
places.
WINDING THE BOBBIN
1. Place a spool of thread on the spool pin,
and secure it with the spool pin cap. Pull
the thread out from the spool and place it
through thread guides as shown in illustra-
tion. It is very important to make sure the
thread is pulled snuggly into the bobbin
winding tension disk, or the bobbin will not
wind properly.
2. Put end of thread through the hole in bob-
bin as shown.
3. Push bobbin winding spindle to far left
position, if it is not already there. Place
bobbin onto the bobbin winding spindle
with end of thread coming from top of
bobbin. Push bobbin winding spindle to the
right until it clicks. Hold onto end of thread.
4. Start machine. Bobbin will automatically
stop turning when completely lled. Push
the bobbin winding spindle to the left to
remove bobbin and cut thread.
