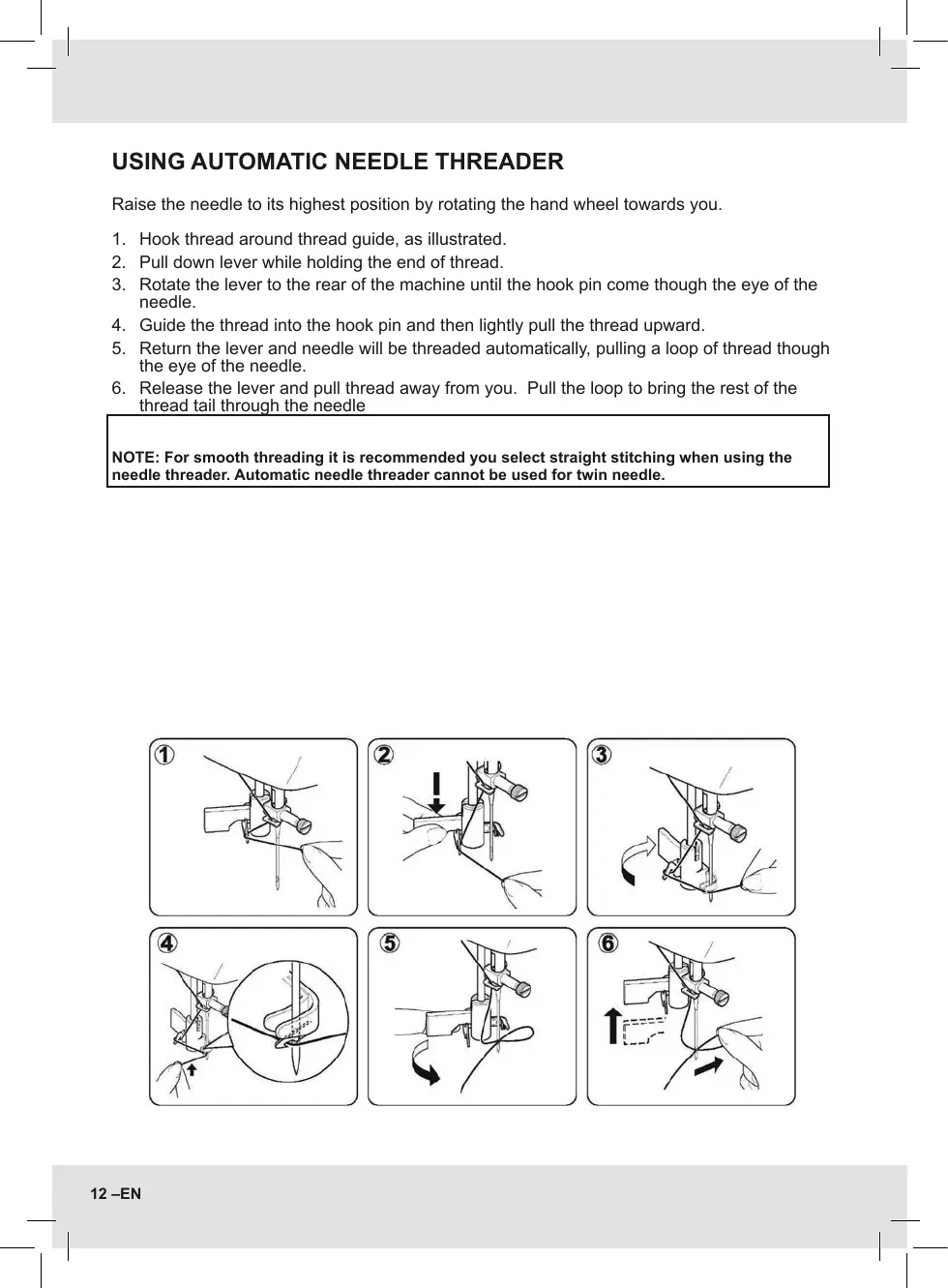

USING AUTOMATIC NEEDLE THREADER
Raise the needle to its highest position by rotating the hand wheel towards you.
1.
Hook thread around thread guide, as illustrated.
2. Pull down lever while holding the end of thread.
3. Rotate the lever to the rear of the machine until the hook pin come though the eye of the
needle.
4. Guide the thread into the hook pin and then lightly pull the thread upward.
5. Return the lever and needle will be threaded automatically, pulling a loop of thread though
the eye of the needle.
6. Release the lever and pull thread away from you. Pull the loop to bring the rest of the
thread tail through the needle
NOTE: For smooth threading it is recommended you select straight stitching when using the
needle threader
. Automatic needle threader cannot be used for twin needle.
