Changerl'ampoule
Attention: avantdechangerl'ampoule,
débranchezlamachine,retirezlaplaquedeface;
cetteplaquedevraêtreremiseenplaqueaprès
avoirchangél'ampoule,avantdemettrela
machineenmarche.
Pourcettemachine,utilisezuneampouleà
bayonettede15wattsmaximum.
•Dévissezlavis(1)delaplaquedeface.
•Retirezlaplaqueenlatirantverslagaucheet
verslebas.
•N'essayezpasdedévisserl'ampoule.
•Poussezl'ampouleverslehautdansladouille
ettournezdanslesensdelaflèche.
•Retirezl'ampoule.
•Mettezenplacelanouvelleampouledansla
douilleettournezdanslesensdelaflèche
pourverrouillerenposition.
•Assurez-vousquelereleveurdupeidpresseur
estenpositionhaute.Replacezlaplaquede
faceenguidantl’angleavantsouslecouvercle
supérieur:poussezpouralignerlaplaqueavec
lecouverclesupérieur.
•Replacezetserrezlavis.
1
14

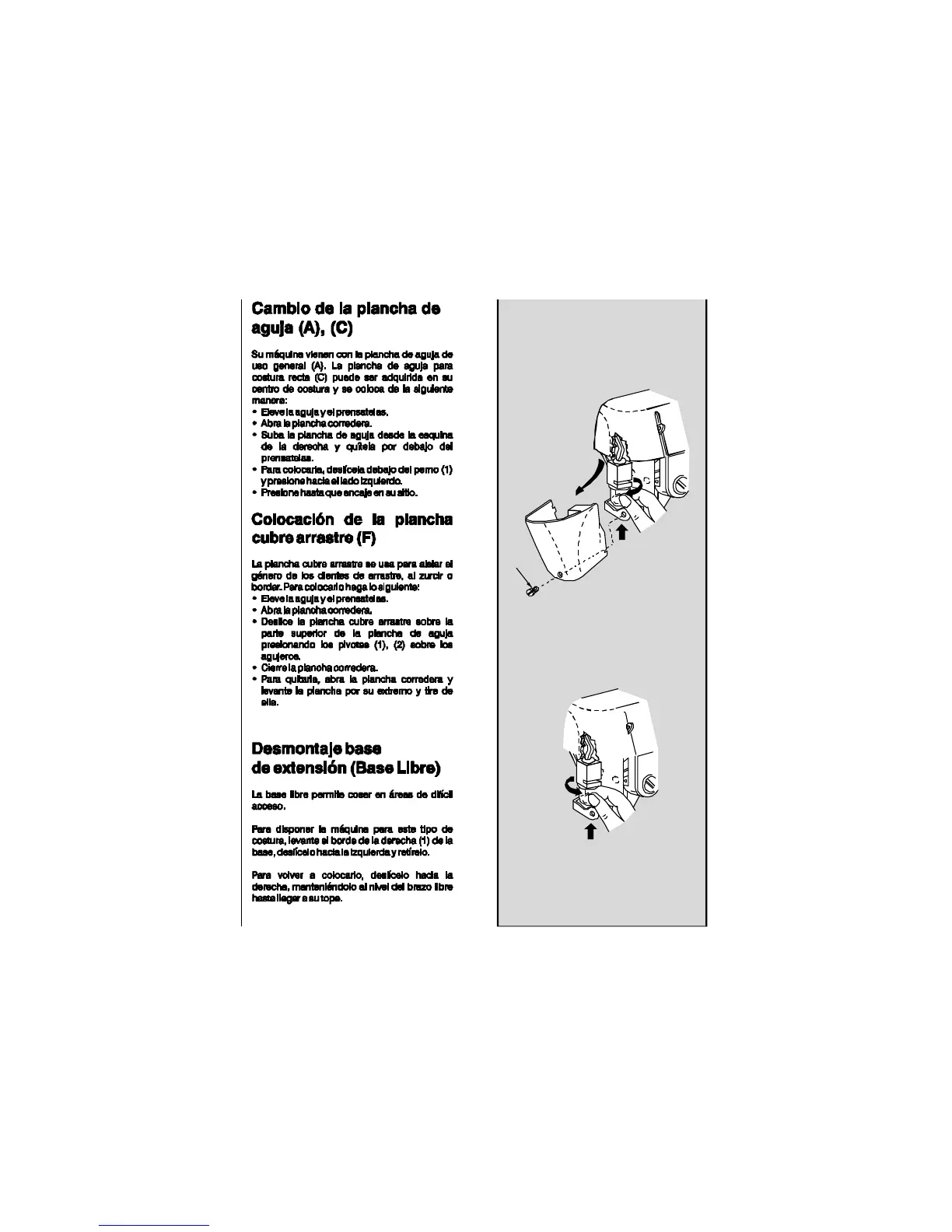

Changingtheneedleplate
(A),(C)
YourmachinecomeswiththeGeneralPurpose
NeedlePlate(A)attached.TheStraightStitch
NeedlePlate(C)maybepurchasedfrontyour
sewingretailerandcanbeattachedasfollows:
•Raiseneedleandpresserfoot.
•Openslideplate.
•Liftupneedleplatefromrightcornerandslide
outfromunderfoot.
•Toreplaceneedleplate,slideitunderpin(1)
andpushitfirmlytotheleft.
•Pressdownuntilitsnapsintoplace.
Attachingthefeed
cover(F)
Thefeedcoverisusedtokeepthefeedfrom
movingthefabricwhenattachingabutton,
darningorsewingfree-motionembroidery.To
attachit,followthedirectionsbelow:
•Raiseneedleandpresserfoot.
•Openslideplate.
•Slidefeedcoverontopofneedleplate,
pressingtabs(1)and(2)intoholes.
•Closeslideplate.
•Toremove,openslideplateandliftfrontedge
ofcover;pullitaway.
Freearmsewingmakesiteasiertosewhard-to-
reachareas.
Tochangemachineforfree-armsewing,liftright
edge(1)ofextensiontable,slideittotheleftand
offthemachine.
Toreplacetheextensiontable,slideittotheright
keepingitevenwiththefree-arm,untilthetabs
ontherightlockintoplace.
Removingthe
extensiontable(Free-Arm)
