Quantum
®
XL-6000
Multiple Hoop Embroidery
- 47 -

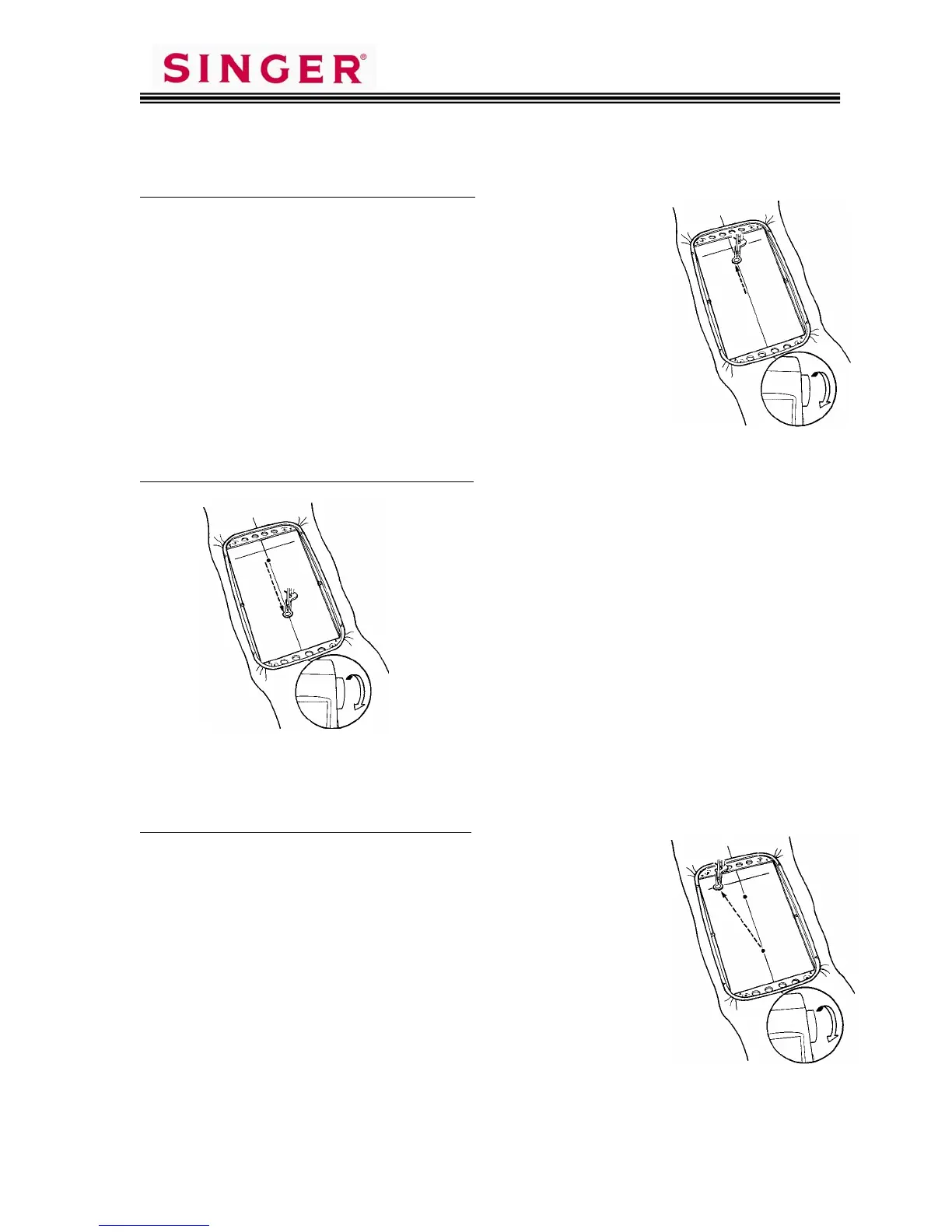

Specifying Point d on the Y-axis line:
1. Touch on screen at one end of the vertical line, to
move the frame.
2. If needle is not directly on the vertical line, use the
Position Keys on the sewing machine screen to
move the needle until it is directly over the vertical
line drawn on the fabric.
3. Turn handwheel to check that needle touches the
vertical line drawn on the fabric.
4. When needle is in correct position, touch the Y-1
Position Memory key on screen to register this
point.
Specifying Point e on the Y-axis line:
1. Touch on screen at the opposite end of the
vertical line, to move the frame.
2. If needle is not directly on the vertical line,
use the Position Keys on the sewing
machine screen to move the needle until it
is directly over the vertical line drawn on
the fabric.
3. Turn handwheel to check that needle
touches the vertical line drawn on the
fabric.
4. When needle is in correct position, touch
the Y-2 Position Memory key on screen to
register this point.
Specifying Point f on the X-axis line:
1. Touch on screen at one end of the horizontal line,
to move the frame.
2. If needle is not directly over the horizontal line, use
the Position Keys on the sewing machine screen to
move the needle until it is directly over the
horizontal line drawn on the fabric.
3. Turn handwheel to check that needle touches the
horizontal line drawn on the fabric.
4. When needle is in correct position, touch the X-1
Position Memory key on screen to register this
point.
5. Stitch out the design elements.
d
f
e
