table an arbitrary distance along X axis.
5. Key , refer to the display and move along Y axis until the displayed
value become zero.
6. Adjust the angle of the working piece and bring the scale reading into zero.
For example: Align the bank angle of the working piece to 45° as shown
in Fig. (b).

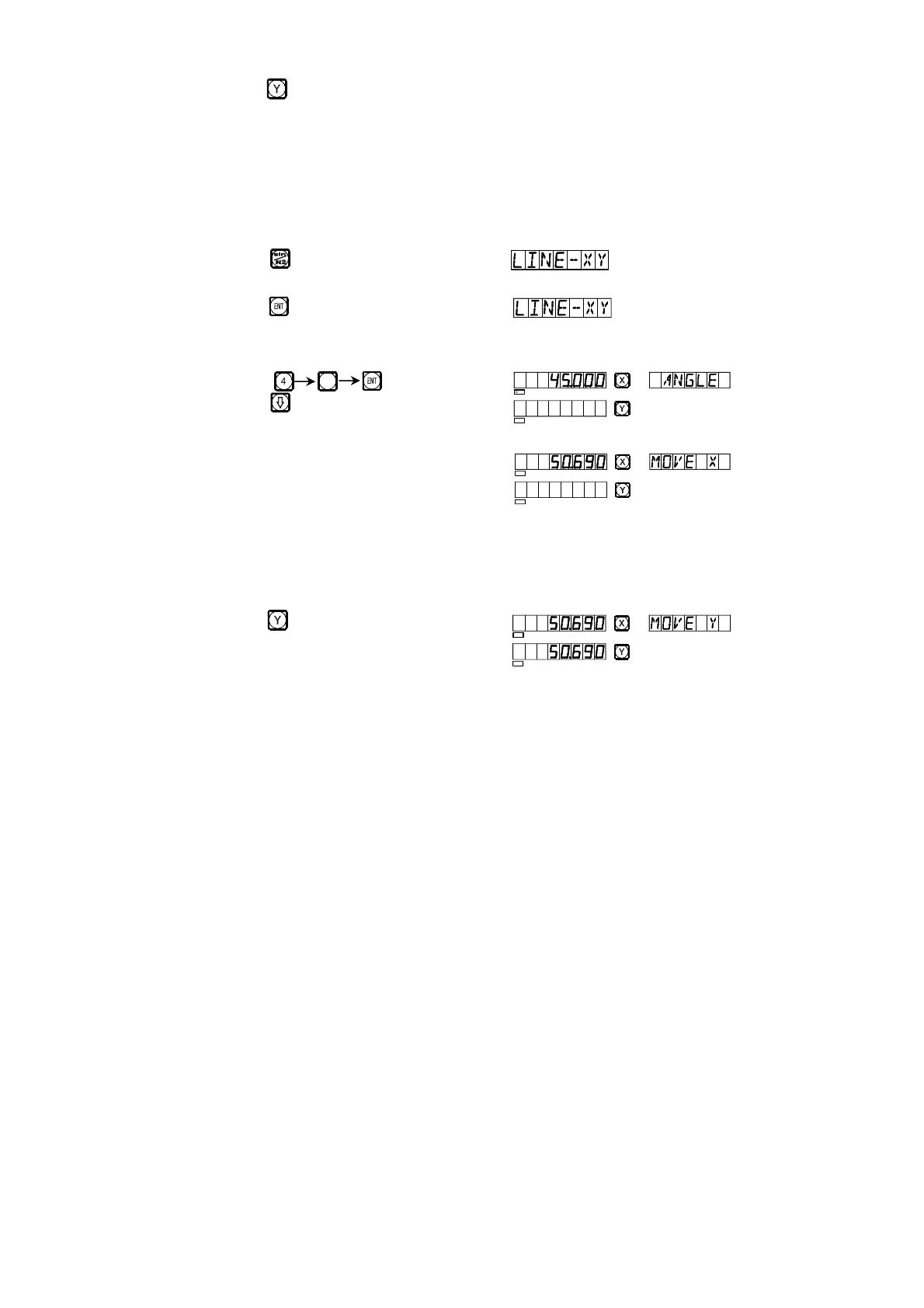

1) Set the working piece on the machine table with a bank
angle equal roughly 45°
Key
2) Select Plane XY.
Key
3) Enter the angle of the angle surface
Key
Key
4) Move the machine table along X axis.
Let the metering tool come just in contact
with the working piece, and adjust the
scale reading into zero, then move the
machine table an arbitrary distance along X axis.
5) The moving distance on Y axis is displayed.
Key
6) Move the machine tool along Y axis.
Adjust the bank angle of the working piece, let the reference plane
being aligned come just in contact with the metering tool and the scale
reading be zero.
7) Move the machine table to bring the displayed value on Y axis into zero.
