Searching the datum zero mark of the working point when turn on again
power interruption or switching off.

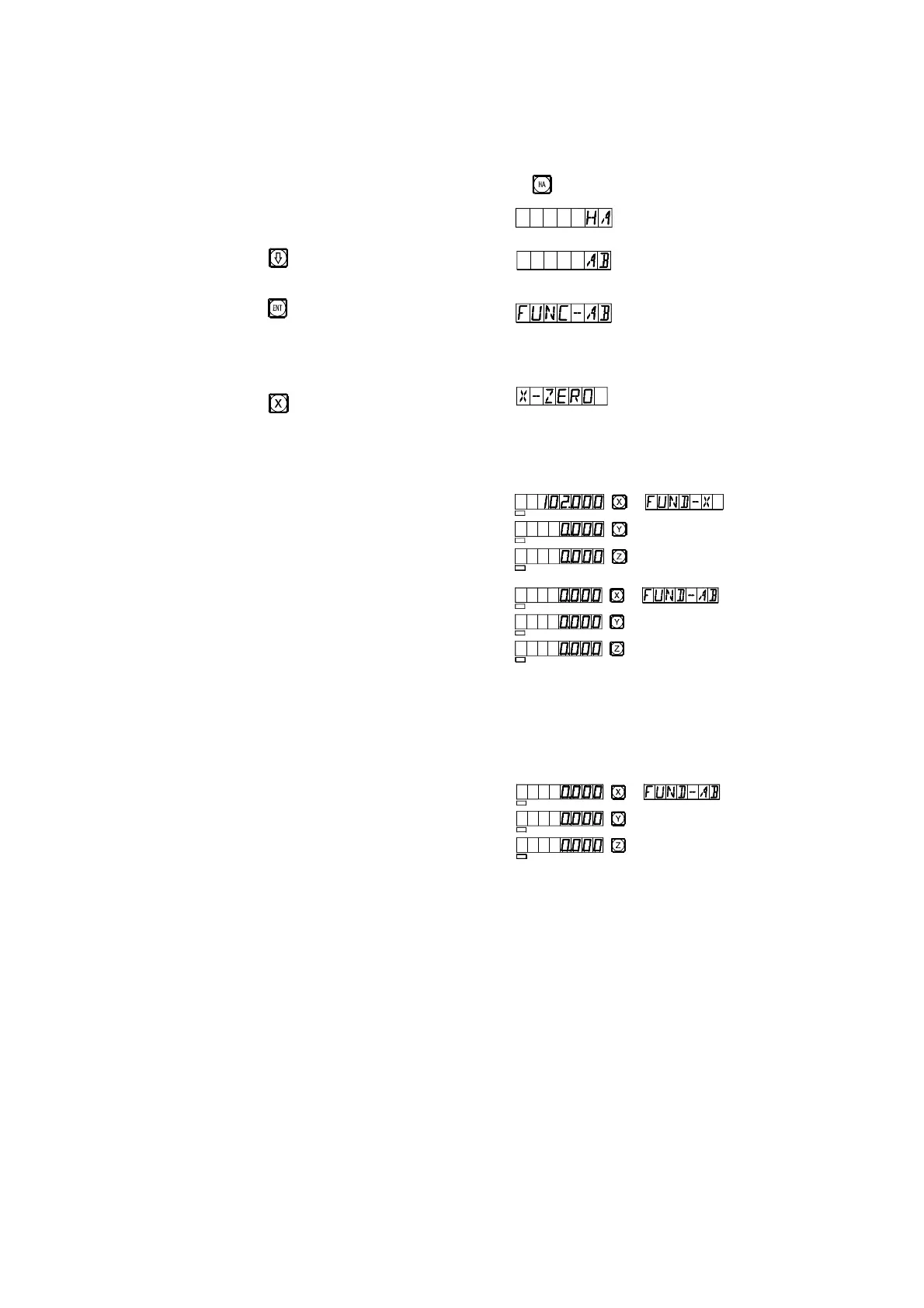

1) At first, to enter the absolute mode, then key
to enter the searching state.
2) Key
3) Key
4) Searching X axis the reference point of
grating ruler.
Key
5) Move the machine table along X axis direction.
6) The X axis reference point of the grating
ruler is found as point C in Fig. (d) the
position of is displayed as “102.000”.
7) Move the machine table to bring the
displayed value on X axis into zero.
Point D is X axis absolute coordinate
zero point, as Fig. (d) shown.
8) Operate the same step, can continue to find Y axis absolute coordinate zero
point.
9) When the display values on both X- and
Y-axis are all zero, the point reached is
the absolute coordinate zero position O.
SEL
SEL
SEL
SEL
SEL
SEL
SEL
SEL
SEL
