© Nov. 2020 8-2 GTTZ10EJ Operation Manual
TRANSPORTING AND LIFTING THE MACHINE
LIFTING THE MACHINE
WITH A CRANE
Follow these requirements when lifting the machine by
crane:
1. The machine must be in stowed position while lifting
the machine with a crane.
2. Ensure the boom is positioned in the same direction
as the chassis travels.
3. Remove all loose parts of the machine.
4. Determine the center of gravity of the machine (X:
513mm/1ft 8.2in; Y: 510mm/1ft 8.1in).

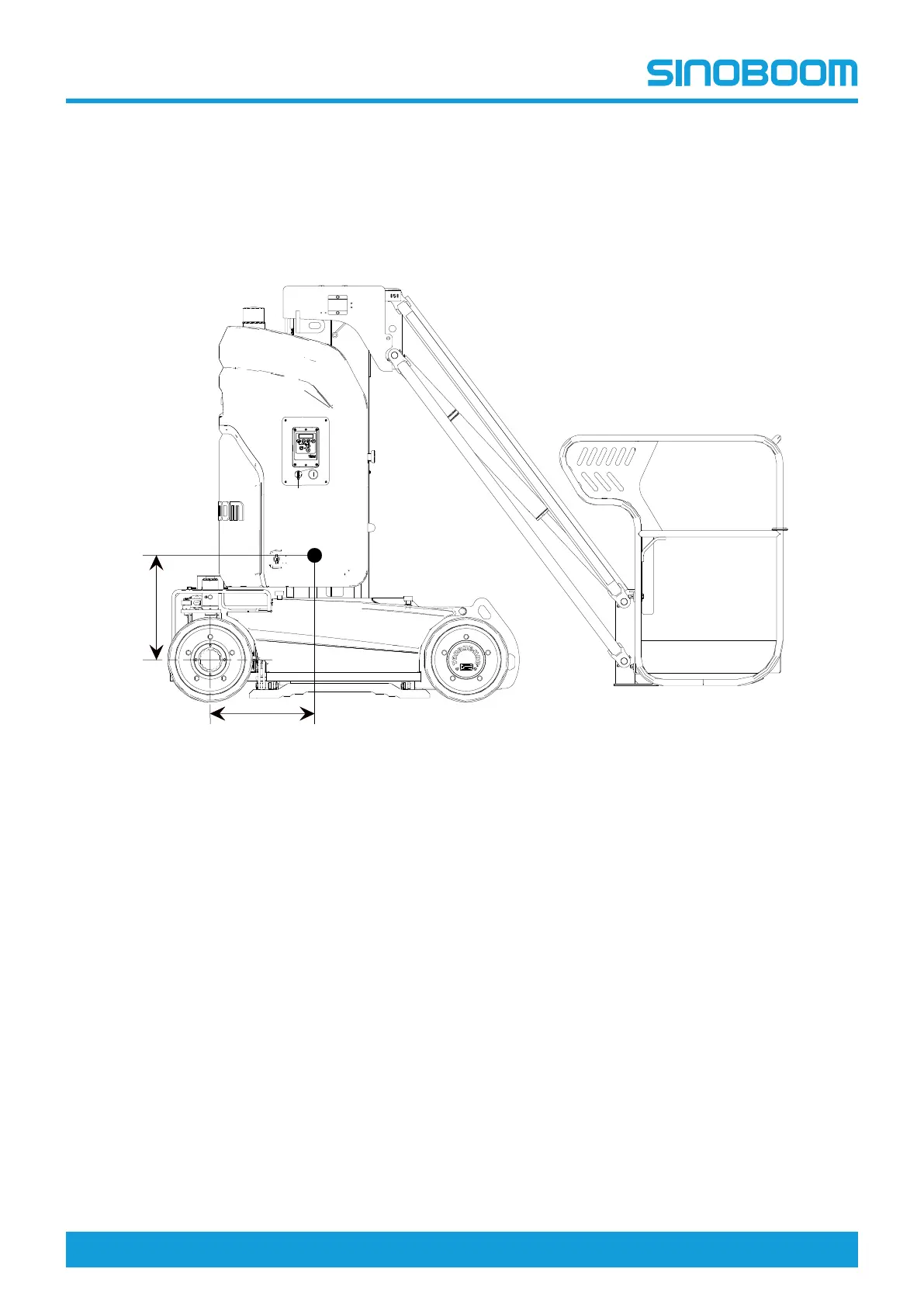

Figure 8-1
5. Attach the rigging to the both lifting eyes.
