21
Step 3: Connect the Home Dock to a Stereo System or
Powered Speakers
The Home Dock can be connected to your stereo system, or to a set of powered
speakers. If you are connecting to a stereo system, see the following section. If
you are connecting to a set of powered speakers, see “To Connect the Home Dock
to Your Powered Speakers” on page 22.

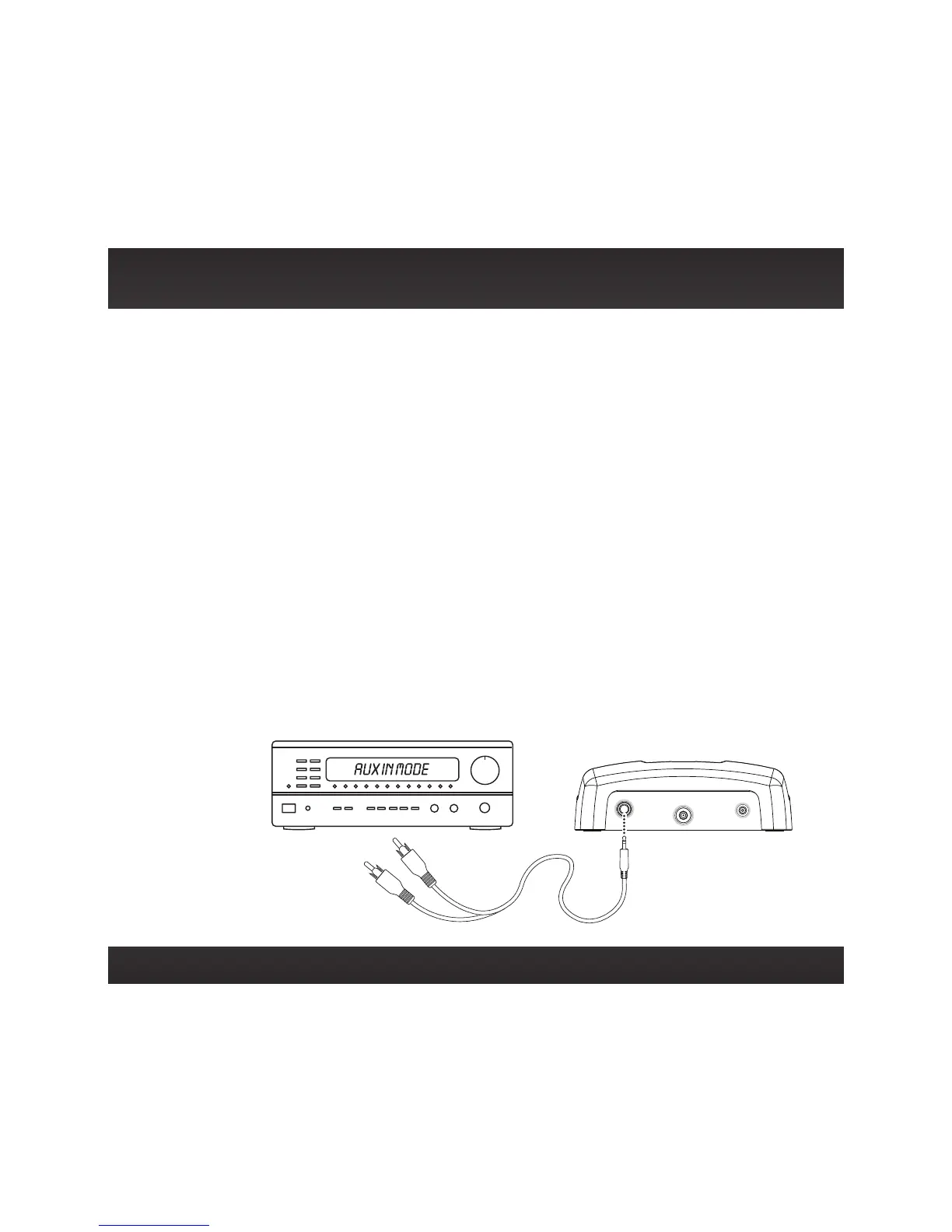

To Connect the Home Dock to Your Stereo System
The Home Dock can be connected to your stereo system through the AUX In or
LINE In connection of your stereo system, using the provided Stereo Audio Cable.
1 Take the provided Stereo Audio Cable and connect the single 1/8” (3.5 mm)
connector to the green AUDIO connector at the rear of the Home Dock.
2 Connect the white left and red right Stereo Audio Cable connectors (“L”
and “R” are also on each respective tip) to any available input other than
PHONO on your stereo system. (If your stereo’s inputs are marked red and
black, simply connect the white plug to the black input.)
3 Turn the stereo system On, and make sure you select the correct input on
your stereo system for the AUX In or LINE In connection.
ANTAUDIO POWER
L
R
