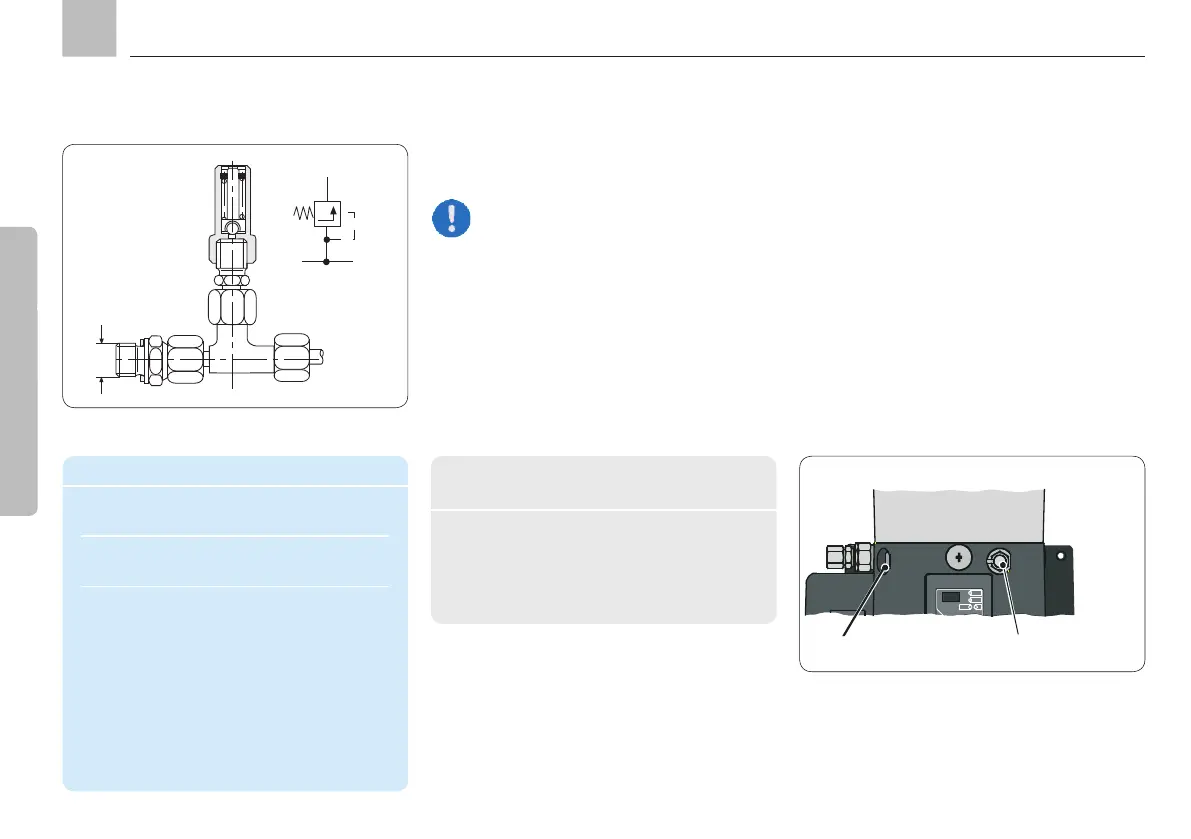

Assembly instructions



lubricants can result in severe system
malfunction.

ways based on the design.


DIN 71412-AM10x1 conical head nipple (1)
and a conventional grease press.
The conical head nipple can be twisted onto
the position (2), for example to gain better
access. As an alternative, the connection (2)
can be used to mount a lubricant return or

2
1
Filler sockets/lubricant return
R
A
P
R
P
A
Pressure regulating valve with T connector
Connections for pressure regulating valve
with T connector
A Connection for pipe Ø
P Pipe thread for pump element
R Grease discharge at overpressure
Cracking pressure........ 300 ± 20 bar
Nominal pipe sizes Ø .. 6, 8, 10 mm
pressure regulating valve
Pressure regulating valve
with T connector output
Pipe Ø Cracking pressure Order number
[mm] [bar]
6 300 161-210-038
6 200 161-210-032
8 300 161-210-039
8 200 161-210-031
10 300 161-210-016
10 200 161-210-030
