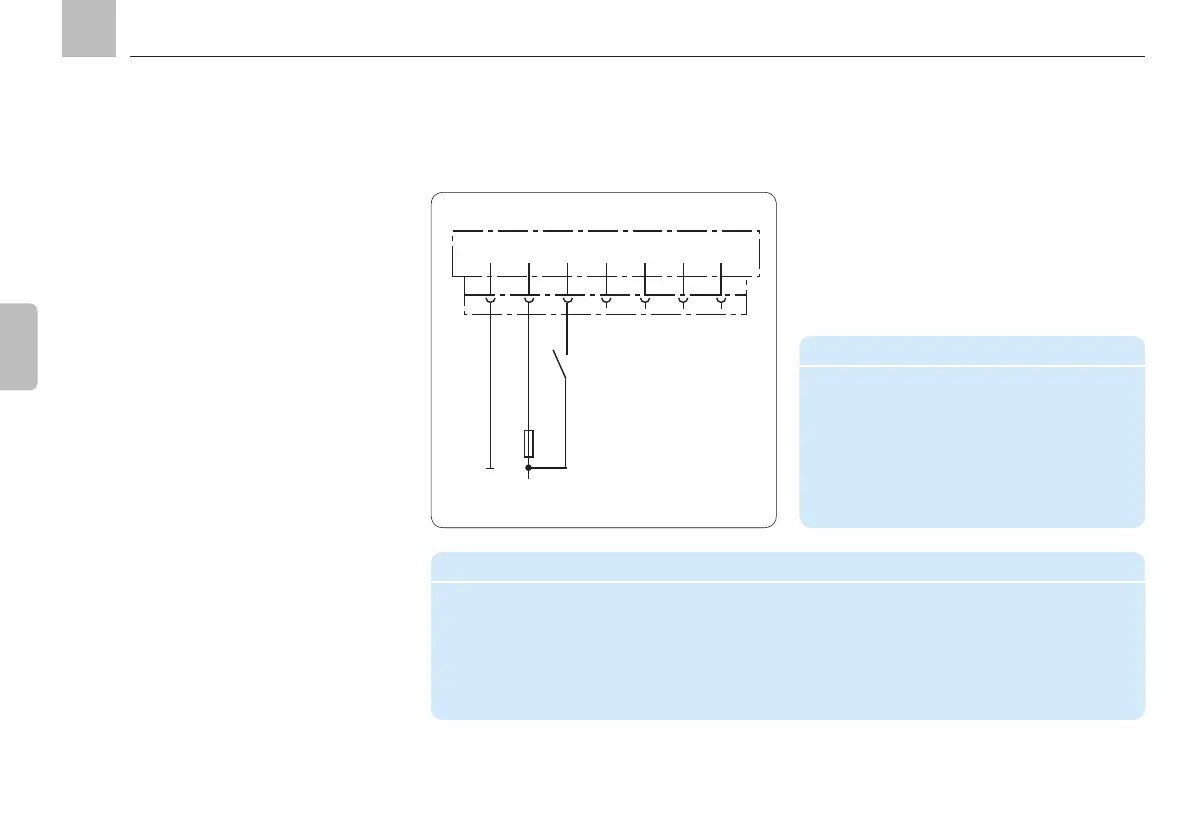

4.5.3.2 Connectivity for counter operation
without system monitoring
1
BN
KFGS...
F
2 3 4 5 6 7
X1
RD-BK
BU
M L+
(Please consider the starting current
!)
MK-machine contact
The interval depends on the number of pulses.
The pump cycle time is time-dependent.
Connector pin assignment
PIN Code Assignment
1 M - Supply voltage potential (0 V, GND)
2 L+ + Supply voltage potential
3 L+/MK + Machine contact potential
Programming:
cPA, tCO, COP = OFF - see Chapter 6
Accessories
Description Order No.
Cable harness, in corrugated pipe,
with pump-side socket
8 m length 997-000-760
13.12 yd length 997-000-630
17.50 yd length 997-000-650
Settings for progressive lubrication
KFGS
Assembly instructions
