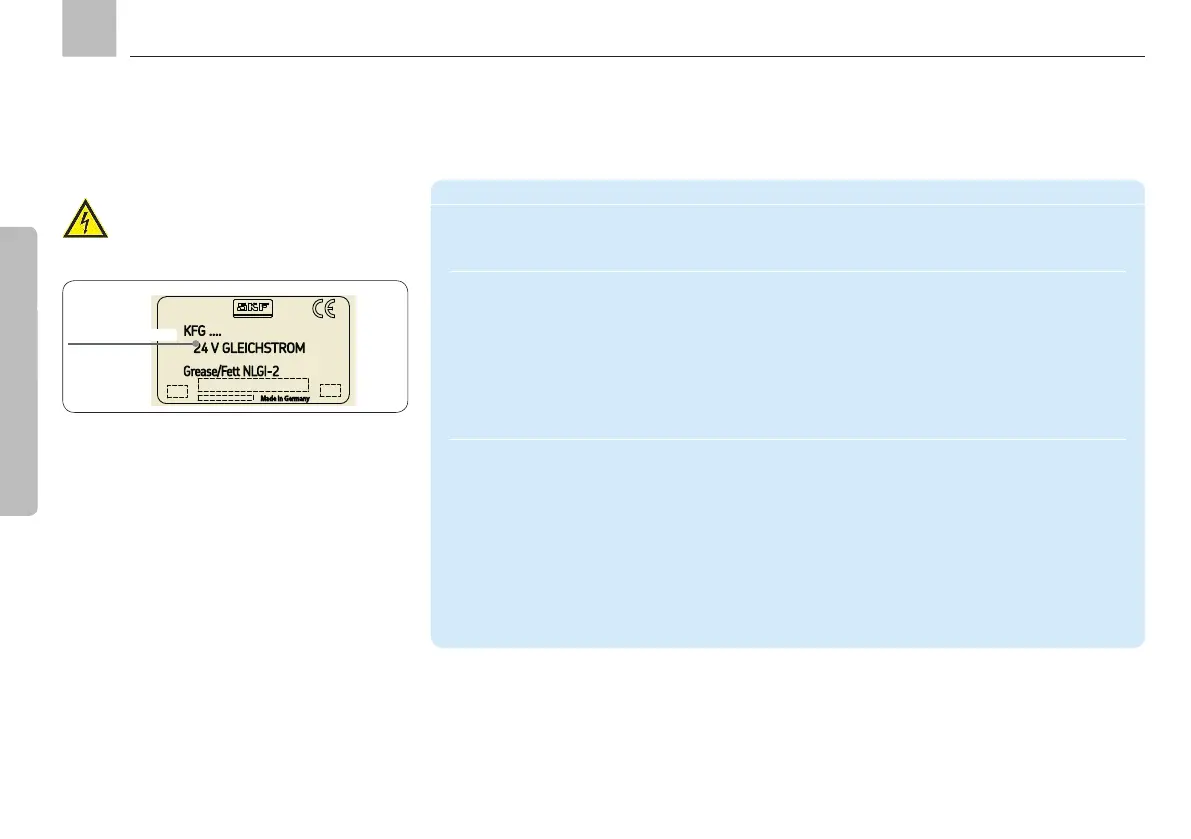

4.5 Electrical connection
Warning!
Compare the operating voltage with the
4.5.1 General conditions for electrical connections
KFG; KFGS; KFGC, general conditions for electrical connections
Nominal Power Power Pump Max.
voltage consumption consumption starting current pre-connected fuse
(load-dependent) (max.) (approx. 20 ms)
24 VDC
1
) 1.25 A
2
) < 2.5 A 4.5 A 4 A
3
)
4
)
12 VDC
1
) 2.4 A
2
) < 5 A 9 A 6 A
3
)
4
)
115 VAC N/A
5
) 1.5 A 20 A C6A
230 VAC N/A
5
) 0.9 A 40 A C6A
KFGC (CAN bus)
Switching outputs: Type: Solid-state output, short-circuit-proof and overload-proof
Max. current-carrying capacity: - with simultaneous operation of 4 outputs 1.0 A
- with simultaneous operation of 2 outputs 1.25 A
- with operation of 1 output 1.5 A
Modes of operation: - Single operation
- Parallel connection of multiple outputs while simultaneously
increasing output current
Signal inputs: Type: digital solid-state input, short-circuit-proof
Connectivity: - Switching contact, no detection of wire breakage
- Dual wire sensors (e.g., piston detector),
detection of wire breakage
1) Protective measures that must be applied for designated usage: "Functional Extra Low Voltage,"
"Protective Extra Low Voltage“ (PELV) Standards: EN 60204 Part 1: IEC 60204-1:
DIN VDE 0100 Part 410 / IEC 364-4-41: HD384.4.41
2) Typical value at ambient temperature = 25°C and operating pressure = 150 bar
3) Fuse per DIN 72581 T.3
4) Conductor: cross-section 1.5 mm
2
, length ≤ 12 m
5) No specification
Operating voltage
Operating voltage specification on rating plate
KFGS
KFG
KFGC
Assembly instructions
