9. Display and control elements of control screen
9.1 KFGS series
The display and control unit is protected from
water splashes and mechanical damage by
a transparent plastic cover. The cover must
be removed to program the unit and then
remounted afterwards.

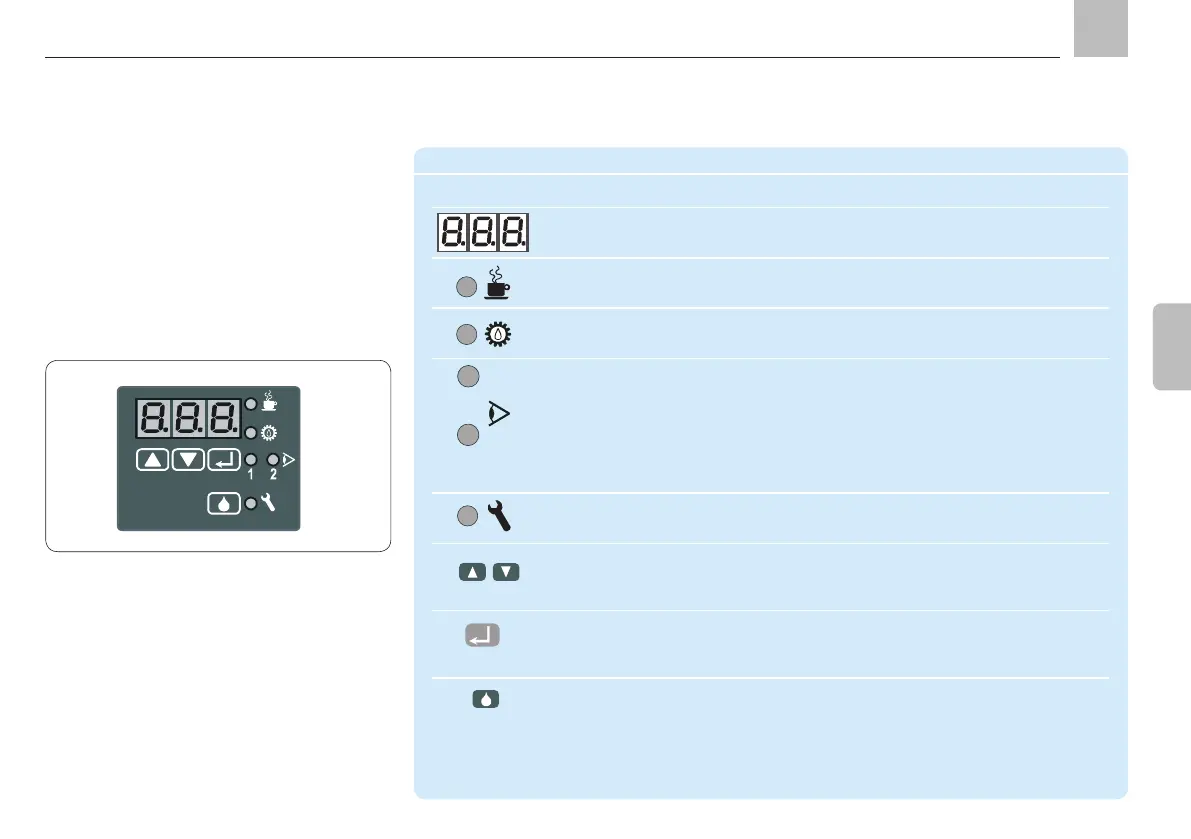

Display and control elements of the KFGS control screen
Symbol Description Function
Three-digit LED display Values and operating status
PAUSE LED Interval time
CONTACT LED Display contact time (pump operation)
1 = CS LED Monitors system function via an external
piston detector
CS = Cycle Switch, piston detector
2 = PS LED Monitors function with an
external pressure switch
PS = Pressure Switch
FAULT LED Fault notification
UP or DOWN key
 Switch on display
 Display values and parameters
 Set values and parameters
SET key  Switch between programming mode
and display mode
 Confirm values
DK key  Trigger interim lubrication
 Delete fault notification
