4 - 4 QuickCollect
User Manual
 Tap the THRESHOLDS: Acceleration Enveloping field to navigate to the
Acceleration Enveloping table.

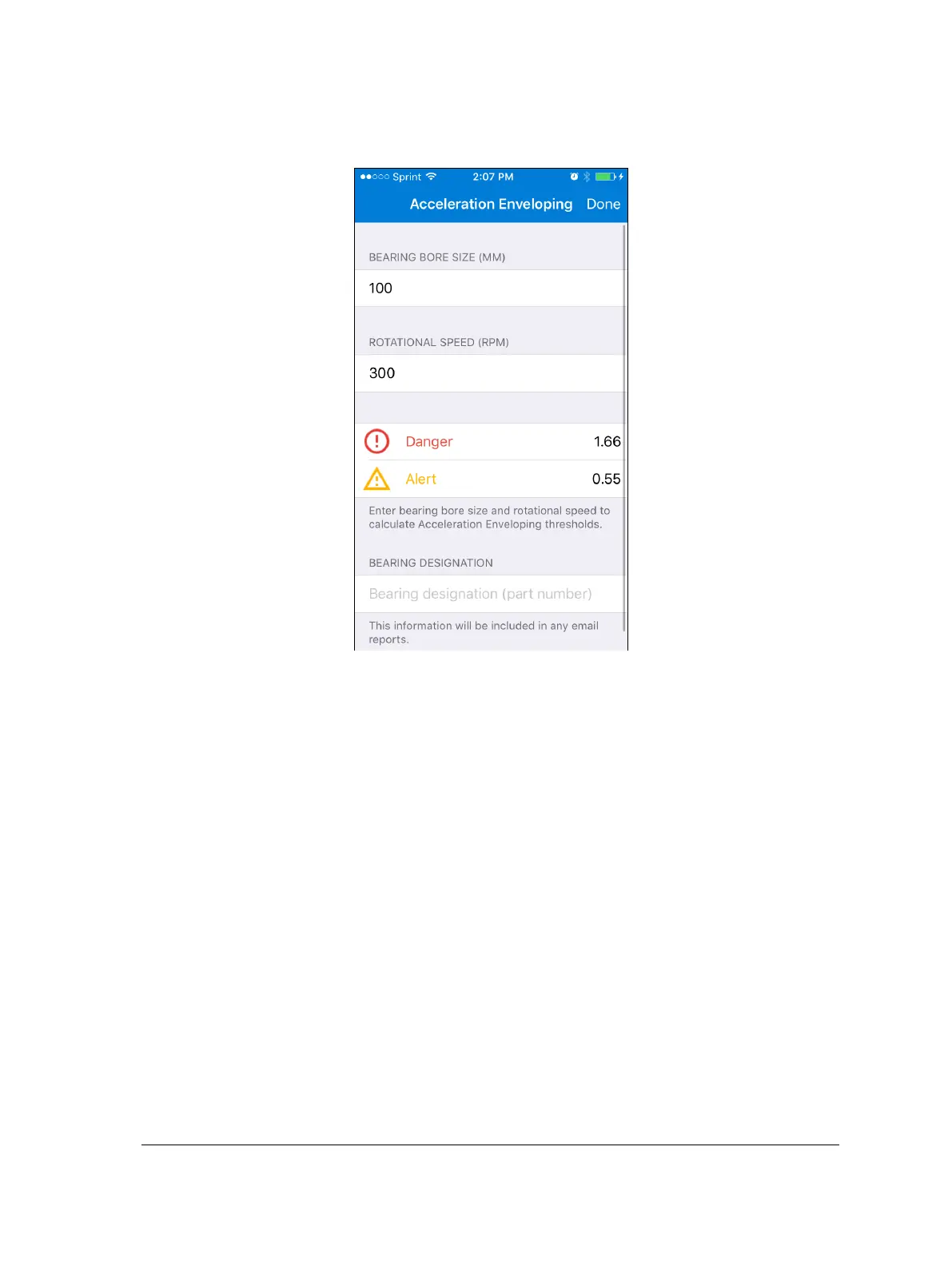

Figure 4 – 4.
Acceleration Enveloping table.
 Make selections and/or enter values for Acceleration Enveloping measurement
thresholds and other information:
Tap within the BEARING BORE SIZE text box to bring up a keyboard, and
enter the bore size of the bearing that your sensor will be measuring according
to the units currently designated (millimetres or inches, indicated next to field
label).
Tap within the ROTATIONAL SPEED text box to bring up a keyboard, and
enter the bearing rotational speed, in RPM, at which your sensor will be
measuring.
The app automatically calculates the acceleration enveloping thresholds for the
bearing at the speed indicated.
Tap within the BEARING DESIGNATION text box to bring up a keyboard, and
enter the bearing’s part number for reference purposes.
 Tap Done to set all configurations and return to the Settings table.
