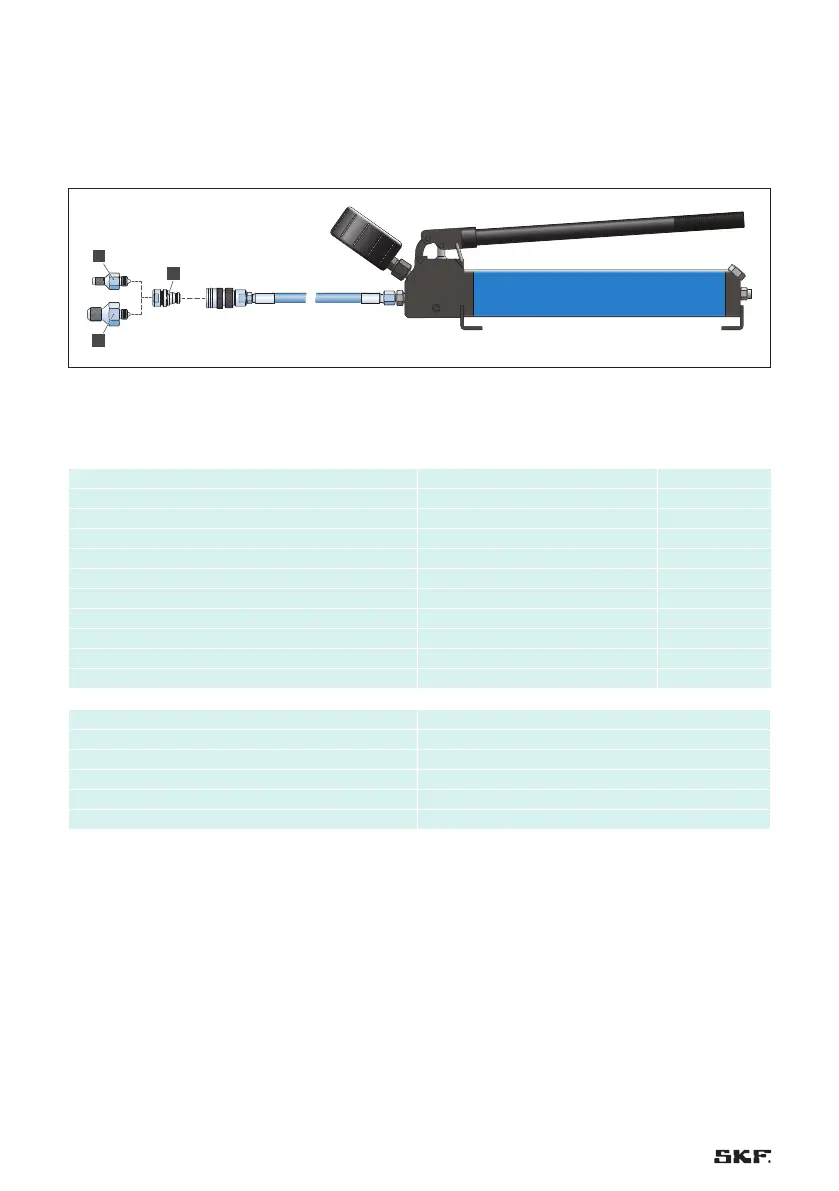

2.4 Suggested connections
The THHP comes complete with all components to
connect it to the most common applications with
G1/4 or G3/4 connections. The recommend way to
connect is shown in
fig. 2 below.
F
E
G
Fig.2 – Connections
2.5 Spare parts and optional accessories
Spare parts Designation Parts
Assembly of hydraulic pump body and pressure gauge THHP 300-1 A, C
High pressure hose 2 m long THHP 300-2H (M16x1.5m – G1/4f) B
Pressure gauge (0-300 MPa/ 43500psi) 1077589 C
Pressure gauge protection sleeve TMJG 100S C
Connection nipple M16m - G1/4m THPN M16G1/4 E
Connection nipple M16m - G3/4m THPN M16G3/4 F
Quick connection coupling (loose item) THPC 300-1 D
Quick connection nipple (loose item) THPN 300-1 G
Mounting fluid (1 litre) LHMF 300/1 H
Carrying case THHP 300-9 I
Optional accessories Designation
Connection nipple M16m – G1/8m THPN M16G1/8
Connection nipple M16m - G3/8m THPN M16G3/8
Connection nipple M16m – G1/2m THPN M16G1/2
Mounting fluid (5 litre) LHMF 300/5
Dismounting fluid (5 litre) LHDF 900/5
