4.3 Prepare the application
Screw the appropriate THPN nipple, with G thread,
to the application. Screw on the loose quick
connection nipple (THPN 300-1) to the
THPN nipple: Maximum torque for M16 thread is
40-50 Nm / 29.5-36.9 ft-lb
(† fig. 2).
For dismounting of components make sure that
with the built up of oil pressure these are not
suddenly released and can’t freely fly away from
the application. Position retaining or locknuts if
necessary.
4.4 Connecting and using the pump
1. Make sure the hose and pump are
depressurised.
2. Connect the quick connection coupling on the
hose to the quick connection nipple. Check the
locking of this connector.
3. Close the oil release valve clockwise
(† fig. 6).
4. Release the stop lever clip († fig. 7).
5. Operate the handle to pressurise the application
carefully watch the pressure increase on the
gauge and the check the application. You can
now mount or dismount your application.
6. When finished the job at hand, open the oil
release valve to depressurise the application.

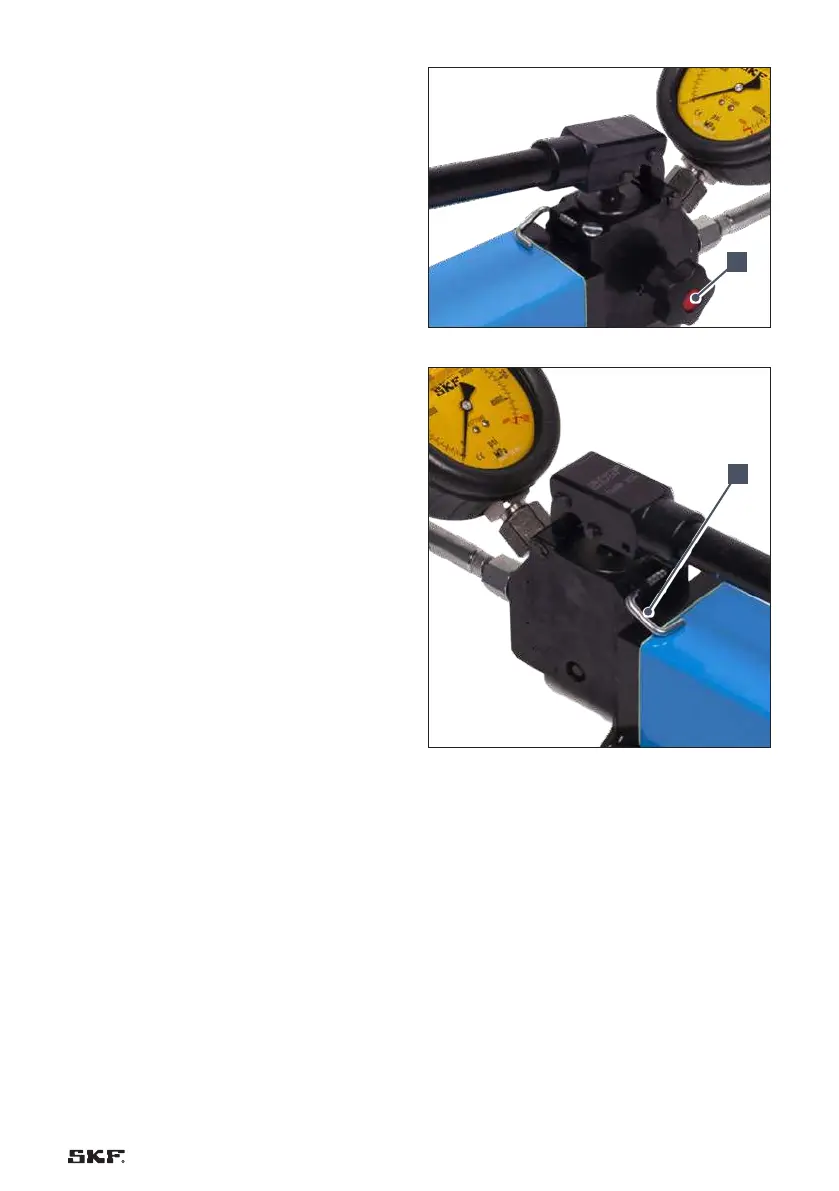

6
Fig.6 – Oil release valve
7
Fig.7 – Stop lever clip in released position
