In figure 27 below, the hot spot SH is set as the reference R, the spot 1 and spot 2 will
show the temperature difference with the hot spot.

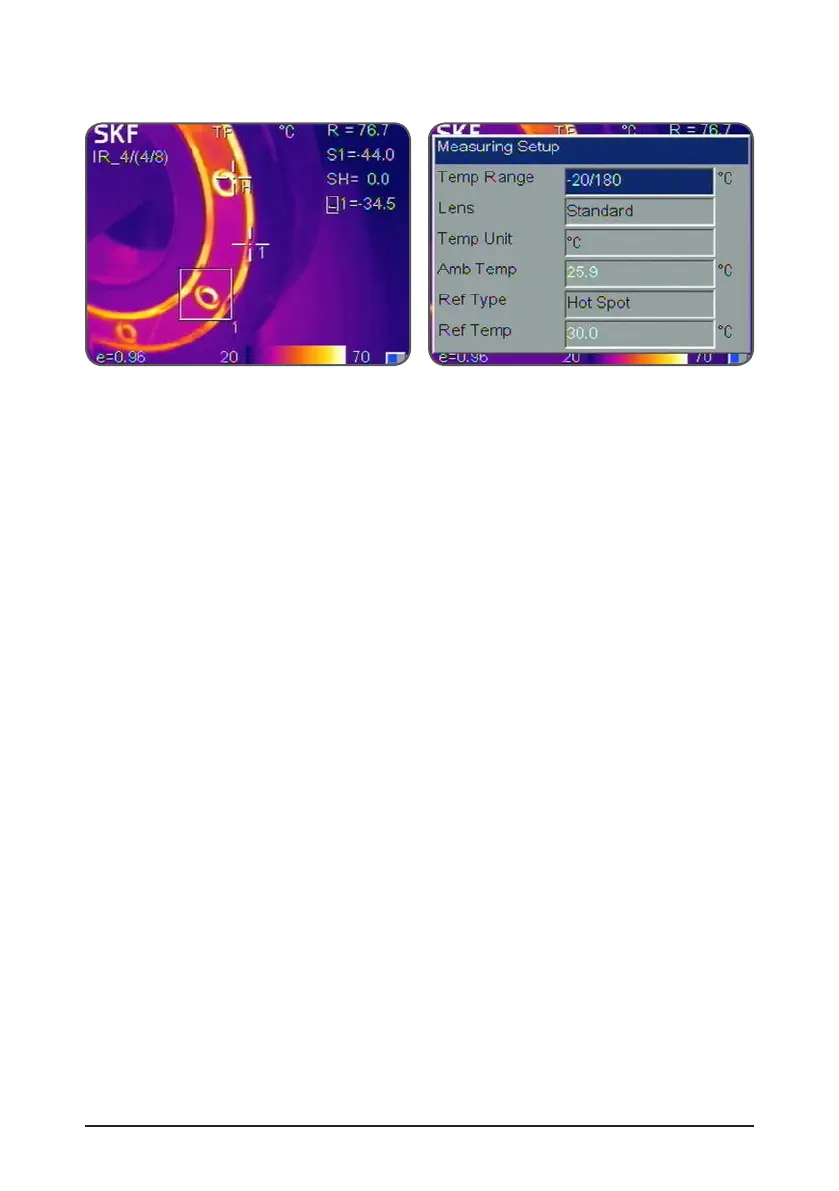

Figure 26 Reference spot example Figure 27 Measurement settings
Select Setup->Measurement to show the Measuring Setup dialog box.
• Temp Range: Select the temperature range best suited to the temperature of the
object being measured. The ranges available are:
- TKTI 21: -20°/350 °C (-4 °F to 662 °F)
- TKTI 31: -20°/180 °C (-4 °F to 356 °F) Low Temp Range
or 100°/600 °C ( 212 °F to 1112 °F) High Temp Range
Note:
After changing the temperature range, calibrate by pressing the A button until Calibrating
is displayed on the screen
• Lens: The cameras are supplied with a standard lend.
• Temperature unit: Select between °C, °F and K units.
• Ambient temperature: The camera will display the internal camera temperature
automatically. This is used for automatic calibration and is not editable by the user.
• Reference type: The user can manually set the reference temperature in
Ref Temp or choose which cursor will be used as reference. When Ref Type is “On”,
the temperature of the measured object displayed by the cursors on the screen is
the difference from the selected reference or the reference temperature set below.
