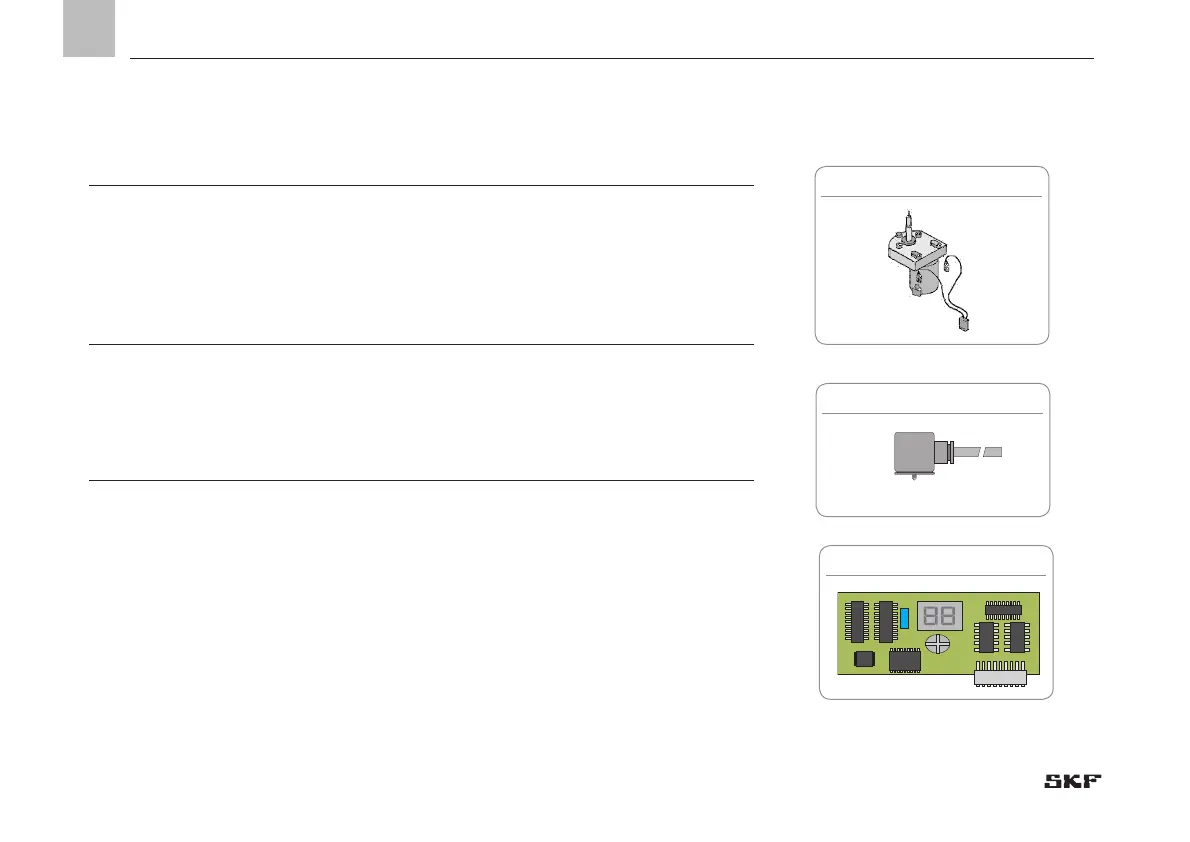

Fig. 11.8
Fig. 11.6
Fig. 11.7
11.10 V DC motors
Designation Qty. Part number
Pump motor 24 V DC with motor connection cable 1 TLMP 1-M24
11.11 Electrical connections
Designation Qty. Part number
Square plug with connection socket (black) with 10 m cable 1 TLMP 1-S
11.12 Control printed circuit board replacement kit
Voltage Jumper Qty. Part number
120 V AC NO 1 TLMP 1-C120
230 V AC NO 1 TLMP 1-C230
24 V DC NO 1 TLMP 1-C24
A replacement kit consists of: Control printed circuit board, housing sealing, corresponding number of
microencapsulated housing screws and service instructions for replacement of control printed circuit
board,
