Description of the operation

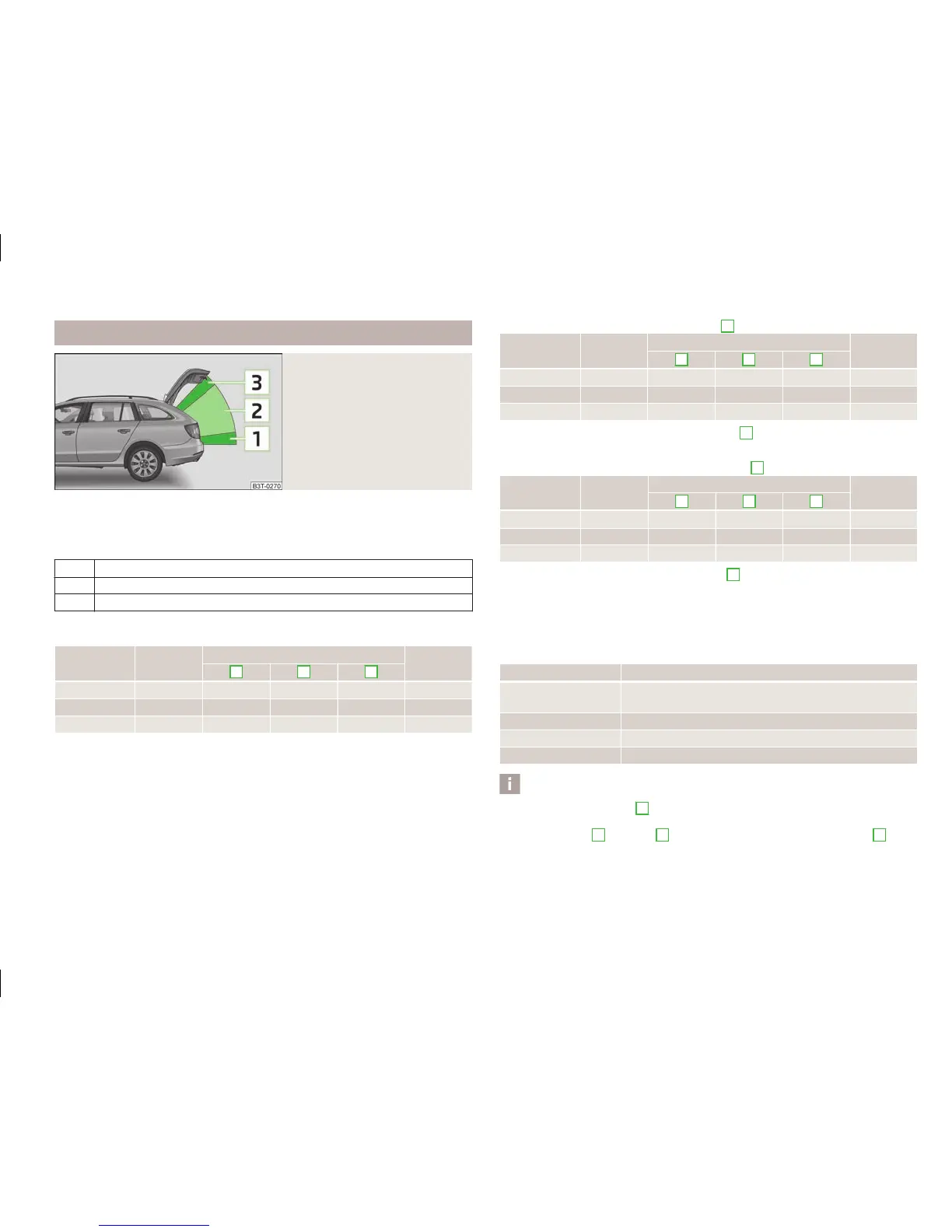

Fig. 24
Designation of the areas
When operating the lid, the system distinguishes 3 areas » Fig. 24 where the
function of the individual operating elements changes. The end positions of the
lid - fully closed in the secured lock and fully opened - differ as well.
Explanation of symbols
 Feasible action
 Non-feasible action
 Movement in the opposite direction to the previous movement
Operation of the boot lid using the remote control key and the button on the
centre console
Action
Closed
lid
Area
Open
lid
1 2 3
Opening     
Stop     
Closing     
When the ignition is switched on, the operation of the boot lid does not function
using the remote control key.
If the vehicle was locked from the outside, the operation of the boot lid does not
function using the button on the centre console » Fig. 23.
If a trailer is coupled to the vehicle, the operation of the boot lid does not func-
tion using the remote control key or the button on the centre console.
Operation of the boot lid using the handle
A
Action
Closed
lid
Area
Open
lid
1 2 3
Opening     
Stop     
Closing     
The operation of the boot lid, using the handle
A
is only possible when the vehi-
cle is unlocked » Fig. 22.
Operation of the boot lid using the inner button
B
Action
Closed
lid
Area
Open
lid
1 2 3
Opening     
Stop     
Closing     
Operating the boot lid with the inner button
B
is only possible when the boot lid
is opened » Fig. 22.
Audible signals
Audible signals are active during the electrical operation of the lid. They serve as
a safety function and provide information about the success of a performed ac-
tion.
Signals Status
Interrupted tone Open (using the button on the remote control key or the
button on the centre console » Fig. 23)
1 continuous tone Force limiter
3 rising tones Confirmation of the storage of the lid position
3 identical tones fault
Note
The expansion of the area
3
» Fig. 24 changes proportionally, depending on the
setting of the top position of the lid » page 46. When setting the top position of
the lid in the area
2
, the area
3
is not active, the expansion of the area
2
changes proportionally to the set top position of the lid.

45
