Seat backrest with through-loading channel

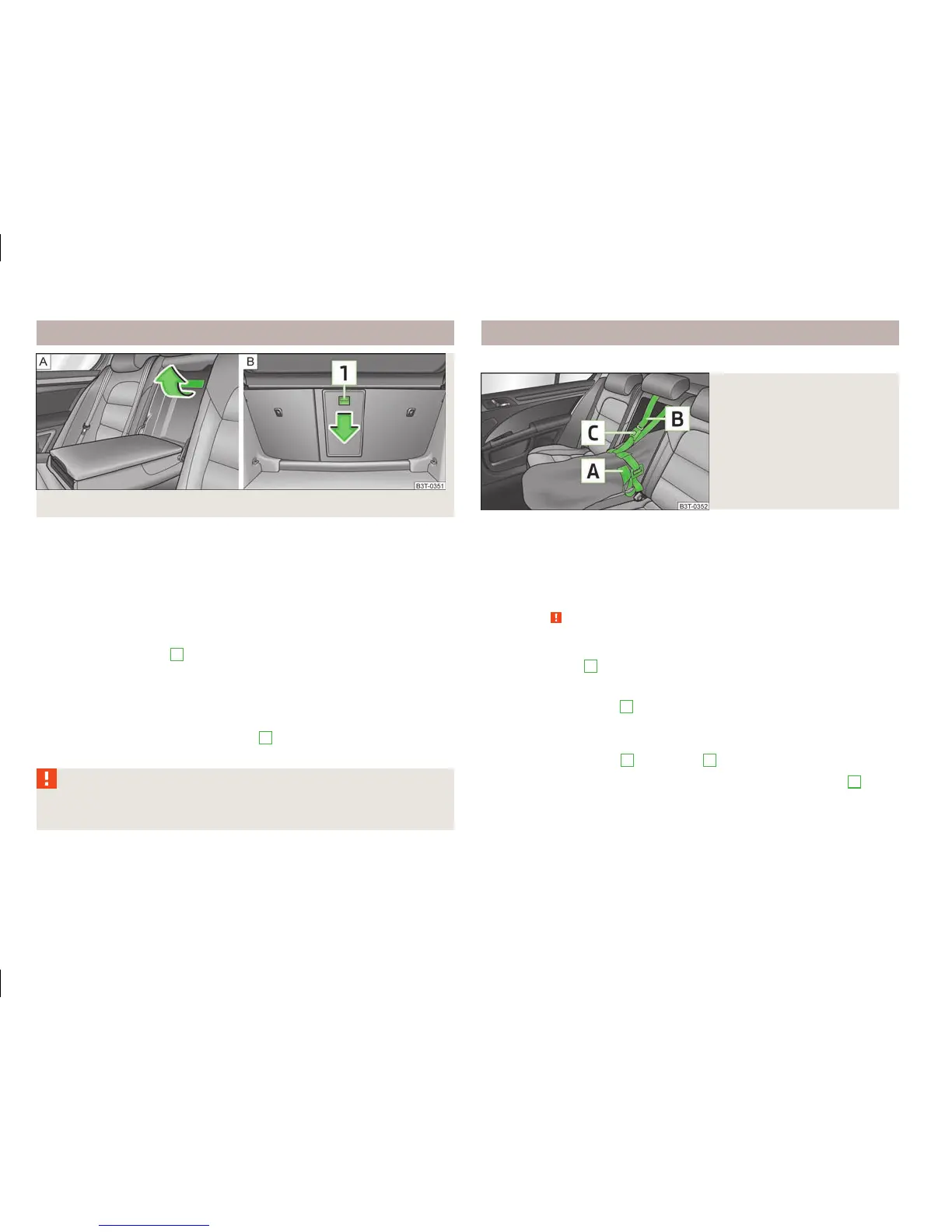

Fig. 100 Rear seats: Cover handle/luggage compartment: Unlock button
After folding the rear armrest and cover up, an opening in the seat backrest be-
comes visible through which the removable through-loading bag with skis can be
pushed. The armrest and cover can be folded forward from the passenger or lug-
gage compartment.
Opening from the passenger compartment
›
Fold down the rear armrest » Fig. 63.
›
Pull the handle upwards to the stop and fold the cover down » Fig. 100 - .
Opening from the luggage compartment
›
Push the unlock button
1
» Fig. 100 down and fold the cover (including the
armrest) forwards.
Closing
›
Fold the cover and armrest upwards to the stop - the lid must click into place.
Ensure that the armrest is always locked into place after closing. This is apparent
as the red field above the unlocking button
1
is not visible from the luggage
compartment.
WARNING
The through-loading channel is only intended for transporting skis that are
placed in a properly secured, removable through-loading bag » page 96.
Through-loading bag
The removable through-loading bag is solely used for transporting skis.
Fig. 101
Securing the through-loading
bag
Loading
›
Open the boot lid.
›
Fold the rear armrest and the cover in the seat backrest downwards » page 96,
Seat backrest with through-loading channel.
›
Place the empty, removable through-loading bag in such a way that the end of
the bag with the zip is in the boot.
›
Push the skis into the removable through-loading bag from the luggage com-
partment » .
›
Close the through-loading bag.
Securing
›
Tighten the strap
A
on the free end around the skis in front of the bind-
ings » Fig. 101.
›
Fold the seat backrest a little forward.
›
Guide the securing strap
B
through the opening in the seat backrest around
the upper part of the seat backrest.
›
Then push the seat backrest back into the upright position until the unlocking
button clicks into place - check by pulling on the seat backrest.
›
Insert the securing strap
B
into the lock
C
until it clicks into place.
On vehicles fitted with a luggage net partition, guide the securing strap
B
around the housing when the net partition is rolled up. After fixing the net parti-
tion in place, it is not longer possible to unroll the net partition.
£
96
