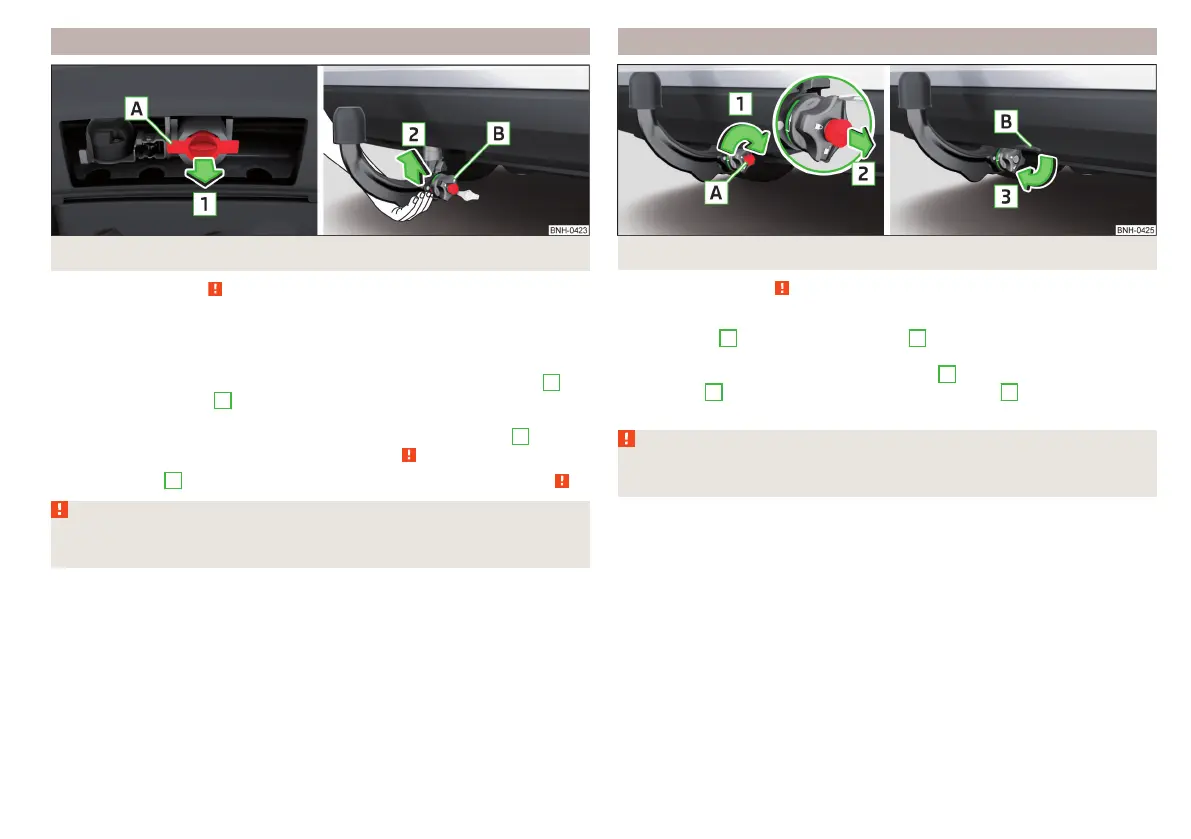

Assembling the tow bar – Step 1
Fig. 139 Remove cap for receiving shaft / use ball bar
Read and observe on page 111 first.
The tow bar must be set to the standby position » page 112, Check the setting
of the standby position. If this is not in the standby position, then it must be
set to the standby position » page 112, Adjusting the ready position.
›
To prepare for the installation, remove the cap for the receiving shaft
A
in
the direction of arrow
1
» Fig. 139.
›
To install, hold the ball rod from underneath » Fig. 139.
›
Push the ball rod into the receiving shaft in the direction of arrow
2
until it
stops. The ball rod must audibly snap into place » .
The hand wheel
B
rotates back automatically and rests on the ball rod » .
WARNING
Do not hold the hand wheel with your hand when attaching the ball bar -
there is a risk of finger injury.
Assembling the tow bar – Step 2
Fig. 140 Secure the lock and remove key / place cap on lock
Read and observe
on page 111 first.
›
First perform step 1 of the tow bar assembly » page 113.
›
Turn the key
A
in the direction of arrow
1,
so that the arrow on the key
symbol
» Fig. 140 shows.
›
Remove the key in the direction of the arrow
2
.
›
Fit the cap
B
on the lock in the direction of the arrow
3
.
›
Check that the ball rod is securely attached » page 114.
WARNING
After fitting the tow bar, always secure the lock and remove the key. The
tow bar must not be operated with the key inserted.
