Page 20 December 2007
DC Electric Full-size RTs
Component Identification (Special Options) Section 2 - Operation
2.6 Component Identification
(Special Options)
This following descriptions are for identification,
explanation and locating purposes only of optional
equipment.
2.6-1 Outrigger Control Console (If Equipped)
The outrigger control console are located next to the
platform control console. These switches control the
outriggers’ extension and retraction.
3
1
4
2

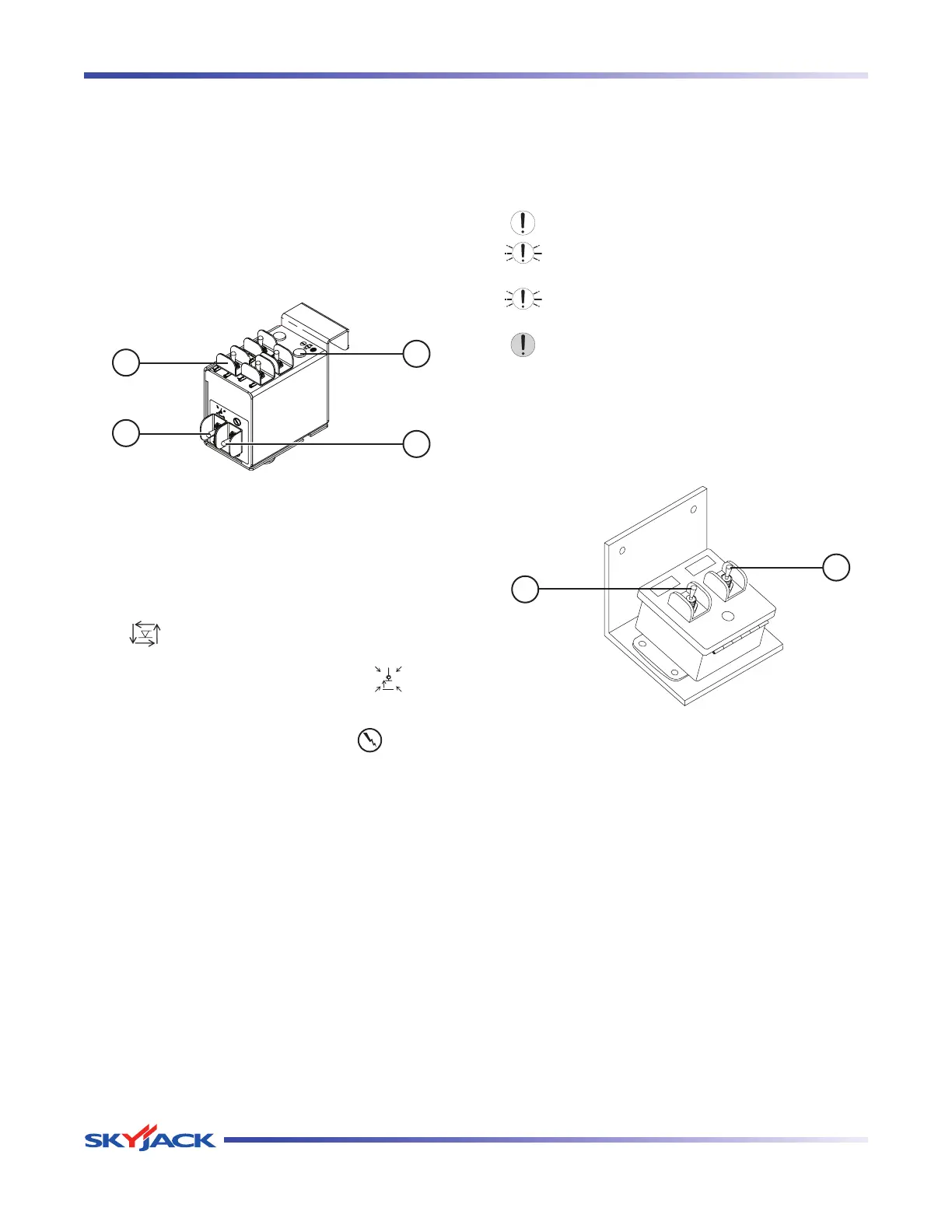

Figure 2-12. Outrigger Controls with All Options on
Auxiliary Control Console
1. Outrigger Extend/Retract Switches - These
switches control the extension and retraction of
each individual outrigger.
2. Auto-level Switch - When this switch is in the
“
“ extend position, each outrigger will extend
and automatically adjust until the aerial platform
is level. When the switch is in the “
” retract
position, the outriggers will retract.
3. Outrigger Enable Switch - This “
” outrigger
enable switch, when in the extend or retract
position, activates the functions on the auto-
level switch and the outrigger extend/retract
switches.
4. Leveling Indicator Light - This light functions
when the auto and manual level functions are in
use and illuminates to display the status of the
auto-leveling outriggers. The indicator light has
the following states:
Off: The outriggers are fully retracted.
Flashing Rapidly: The outriggers are extending
but the platform is not level.
Flashing: The outriggers are extended but the
platform is not yet level.
Solid: The outriggers are extended and the
platform is level.
2.6-2 Powered Extension Control Console
(If Equipped)
This control console is mounted on one of the extension
platform guardrails. It contains the following controls:
2
1
Figure 2-13. Powered Extension Control Console
Enable Switch1. - This switch, when activated and
held, allows the extension platform extend/retract
switch functions to operate.
Extend/Retract Switch2. - This switch, when
activated, extends or retracts the powered
extension platform. Refer to Section 2.10-8 on
how to extend/retract the powered extension
platform.
