DC Electric Full-size RTs
Section 2 - Operation Start Operation
2.10-7 To Extend or Retract Manual Extension
Platform
1
2
3

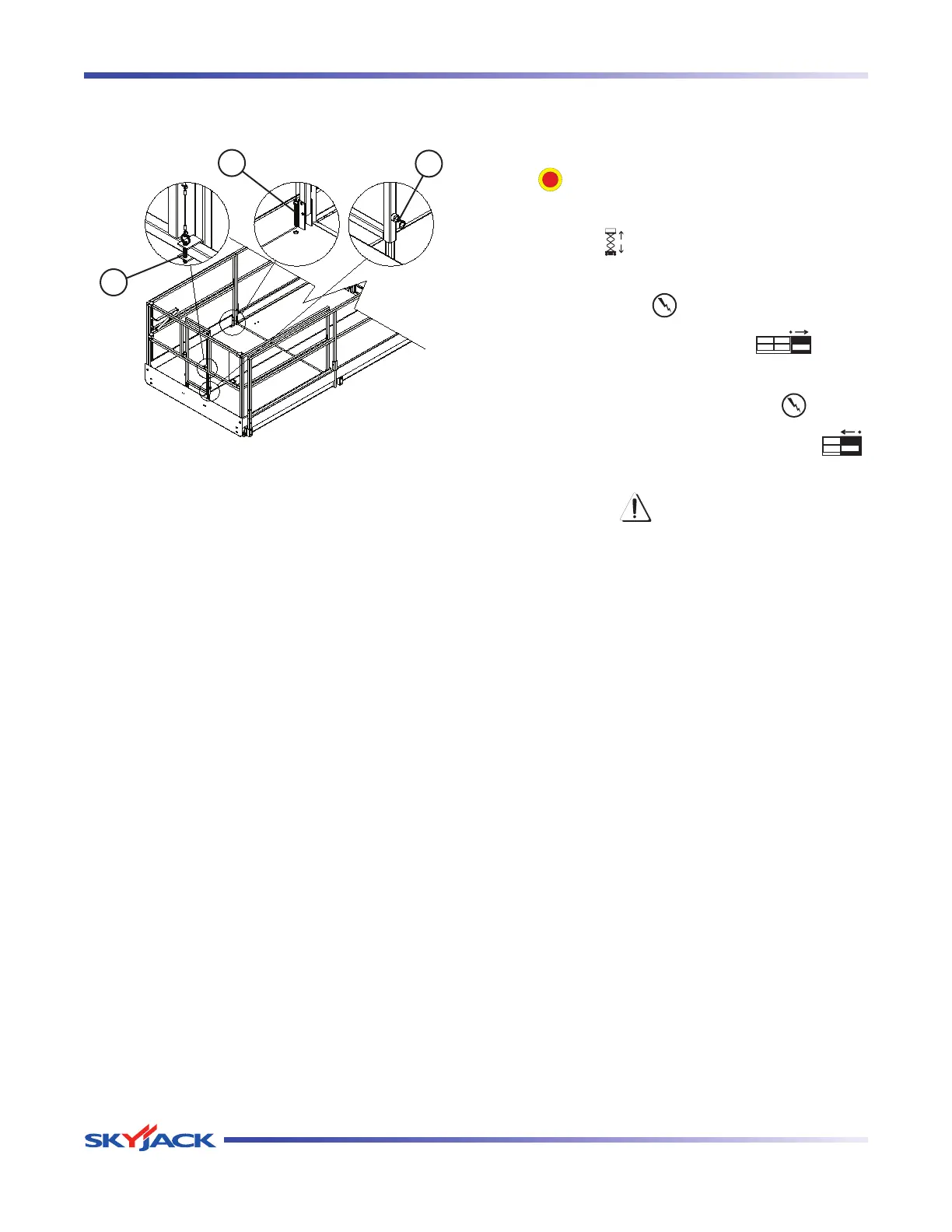

Figure 2-15. Manual Extension Platform
To extend/retract the manual extension platform, 1.
remove the locking pin (item 1) then remove the
push bar locking pins (item 2) and rotate the push
bar towards the main platform. Extend the push
bar until it locks at full extension and push/pull the
extension platform using the push bar.
Upon full extension or retraction, reinsert the 2.
locking pin on the platform (item 1) to prevent
accidental movement of the manual extension
platform during travel or transport.
When the push bar is not in use, pull the plungers 3.
(item 3) on the push bar and retract it, then rotate
it back to its resting position and lock it into place
with the locking pins (item 2).
2.10-8 To Extend or Retract Powered
Extension Platform (If Equipped)
1. To extend the powered extension platform, ensure
“
” emergency stop button is pulled out.
2. On platform control console, select lift/off/drive
switch to “
” lift position.
3. On the powered extension control console,
select and hold “
” enable switch, then push
the extend/retract switch to the “
“ extend
position. Release switch to stop.
4. To retract platform, select and hold “
” enable
switch, then push extend/retract switch to “
“
retract position. Release switch to stop.
WARNING
To protect against unintended movement of
the aerial platform, push in the emergency
stop button after you have arrived at your
desired location or elevation.
