Skyjack SJ4726 Service Manual

121
SJ3220, SJ3226, SJ4720, SJ4726, SJ4732 223198ABA
Platform Section 5 – Procedures
5.2 Platform

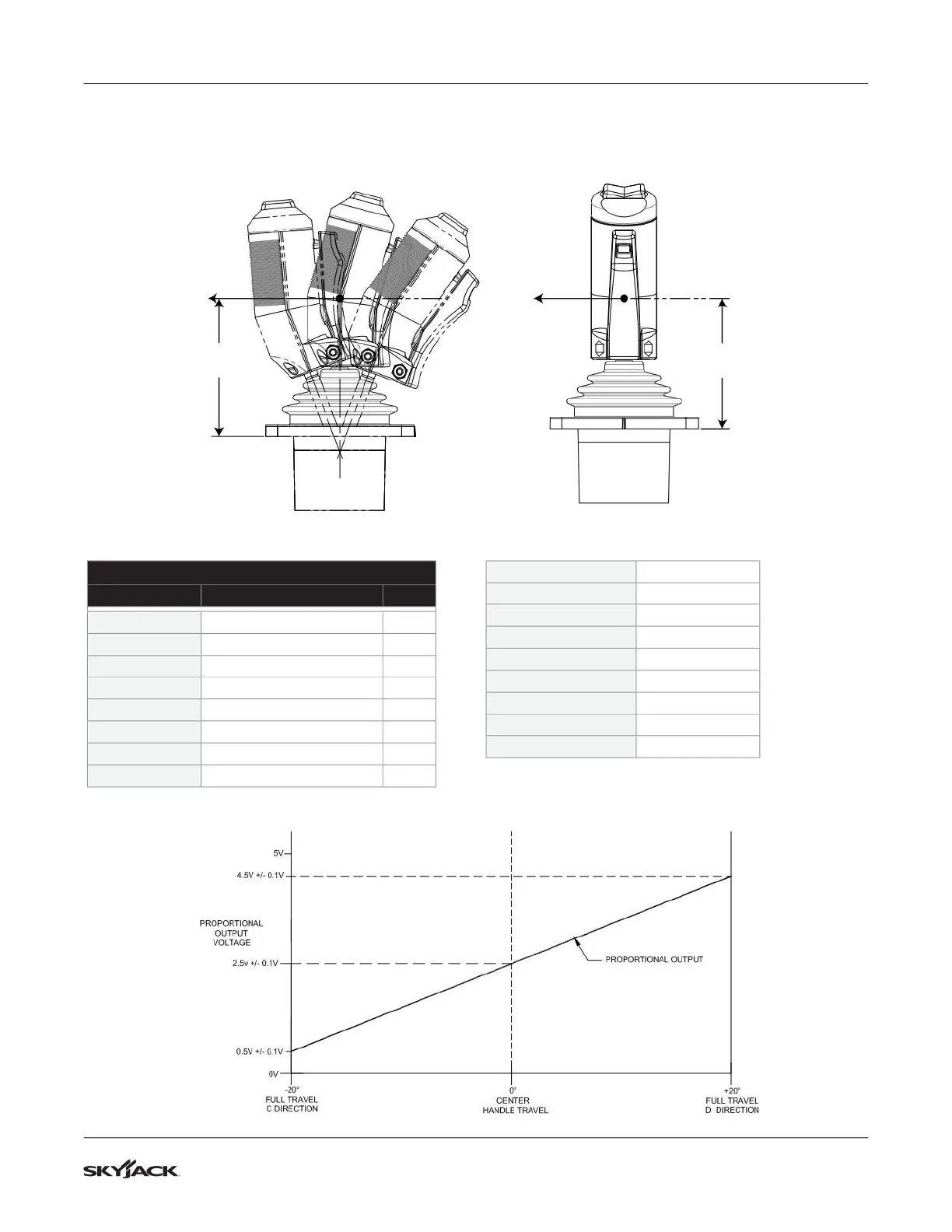

5.2-1 Single Axis Joystick
9 cm
(3.5”)
9 cm
(3.5”)
Max
Axial
Load
Max
Side
Load
Joystick Output Graph
Joystick Switch Wiring
WIRE CHART
COLOR FUNCTION PIN #
WHITE/RED STEER LEFT 1
NONE N/A 2
WHITE STEER RIGHT 3
WHITE/BLUE ENABLE TRIGGER 4
WHITE/BLACK HANDLE COM (+24V) 5
GRAY GROUND 6
BLUE PROPORTIONAL OUTPUT 7
YELLOW POWER (+5V) 8
Joystick Specications
Input Votlage 5.0V
Center 2.40V to 2.60V
C DIR Full 0.40V to 0.60V
D DIR Full 4.40V to 4.60V
*Side Load Max 15.8 Nm (140 ft-lb)
*Axial Load Max 15.8 Nm (140 ft-lb)
Operating Temperature -40°C to 85°C
Storage Temperature -40°C to 85°C
IP Rating IP 57
*Load applied at dimensions shown on the diagram
