SJ3220, SJ3226, SJ4720, SJ4726, SJ4732
223198ABA

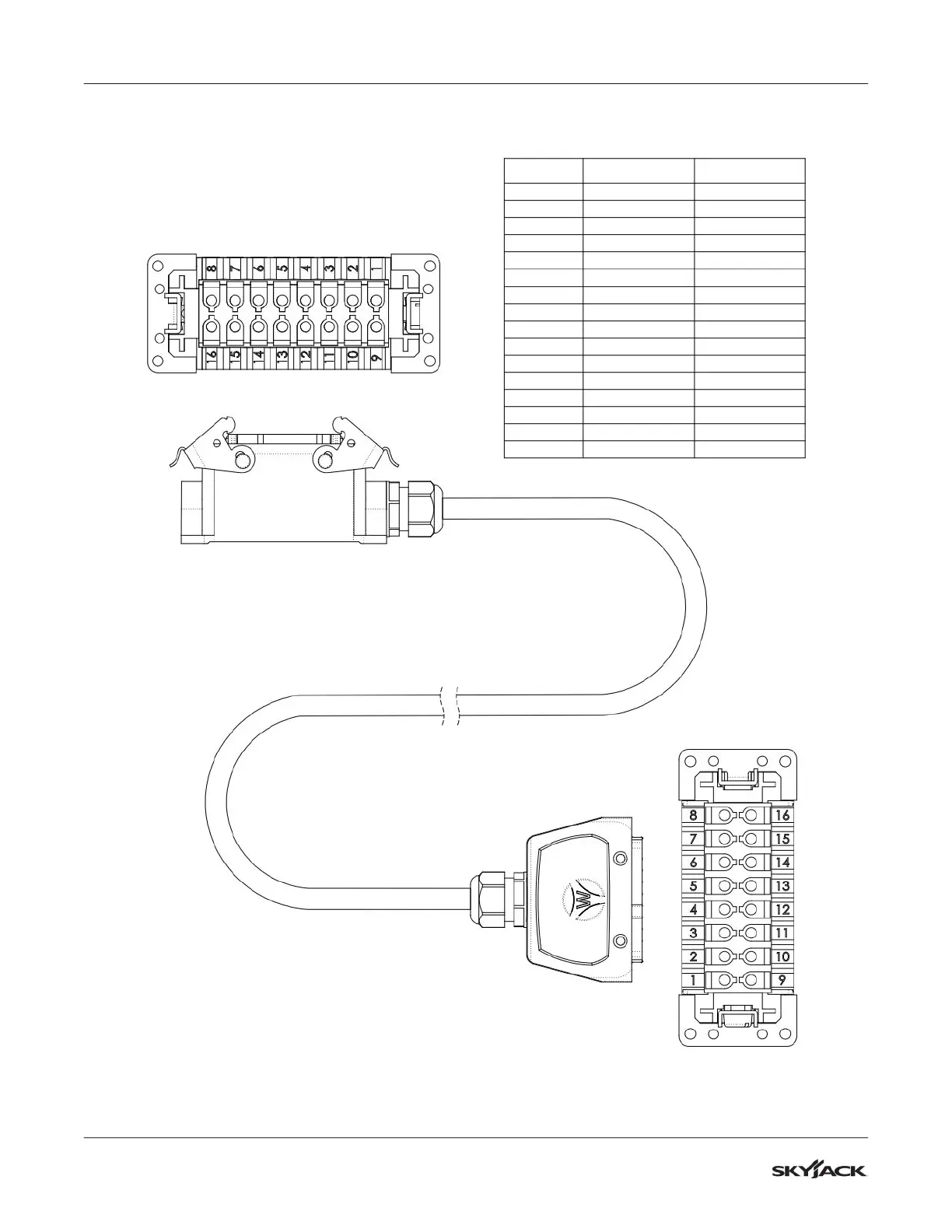

Section 3 – System Component Identication and Schematics
Base to Platform Control Cable
3.16
Base to
Pla
tform
Cont
rol
Cable
M211921AB
CAVITY NO
.
COLOUR
CIRCUIT NO.
1
WHITE
00
2
BLUE
12
3
ORANGE
09
4
BLACK
08A
5
RED
07
6
BLUE/WHITE
08
7
GREEN/WHITE
49
8
GREEN
08B
9
NOT USED
10
WHITE/BLACK
00B
11
RED/BLACK
18
12
ORANGE/BLACK
59
13
GREEN/BLACK
-
14
BLUE/BLACK
24
15
BLACK/WHITE
23
16
RED/WHITE
60
61
63
