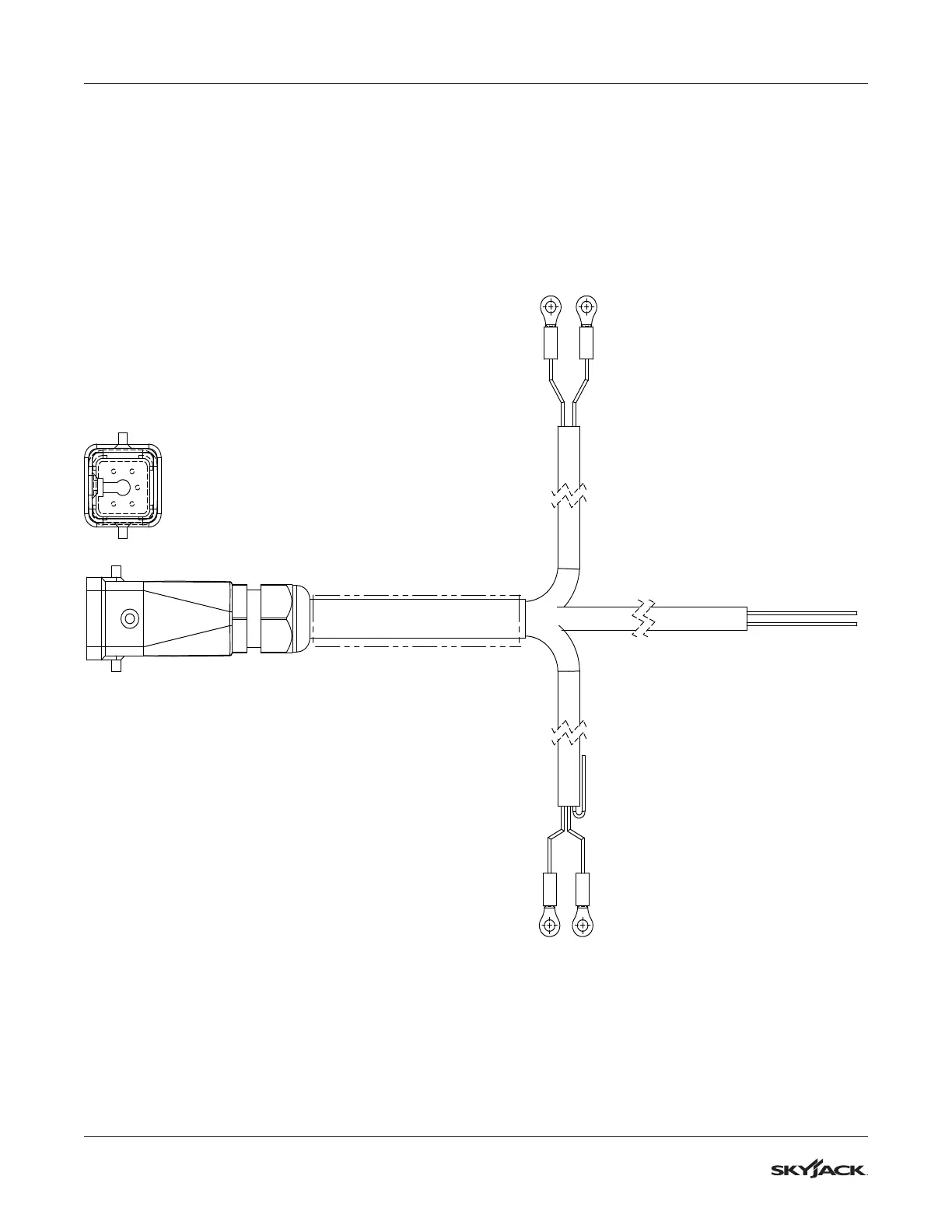

3.25 Interlocks Harness (ANSI/CSA ACPP)
1
2
3 4
5
TO FRONT GATE LIMIT SW.
TERM. 1 - 07 BLACK
TERM. 2 - 7A WHITE
TO EXTENSION PLATFORM
WHISKER LIMIT SW.
TERM. 1 - 8E BLACK
TERM. 2 - 8A WHITE
TO REAR GATE LIMIT SW.
TERM. 1 - 7A WHITE
TERM. 2 - 7B BLACK
TO CONTROL BOX
PIN 1 - 8A WHITE
PIN 2 - 8E BLACK
PIN 3 - 07 BLACK
PIN 4 - 7B BLACK
PIN 5 - N/U
7A WHITE + 7A WHITE - SOLDER
AND HEATSHRINK INSIDE CONNETOR
USE STRAIGHT END OF RETRACTABLE
CORD AT 5 PIN CONNECTOR
