SJ3220, SJ3226, SJ4720, SJ4726, SJ4732 223198ABA

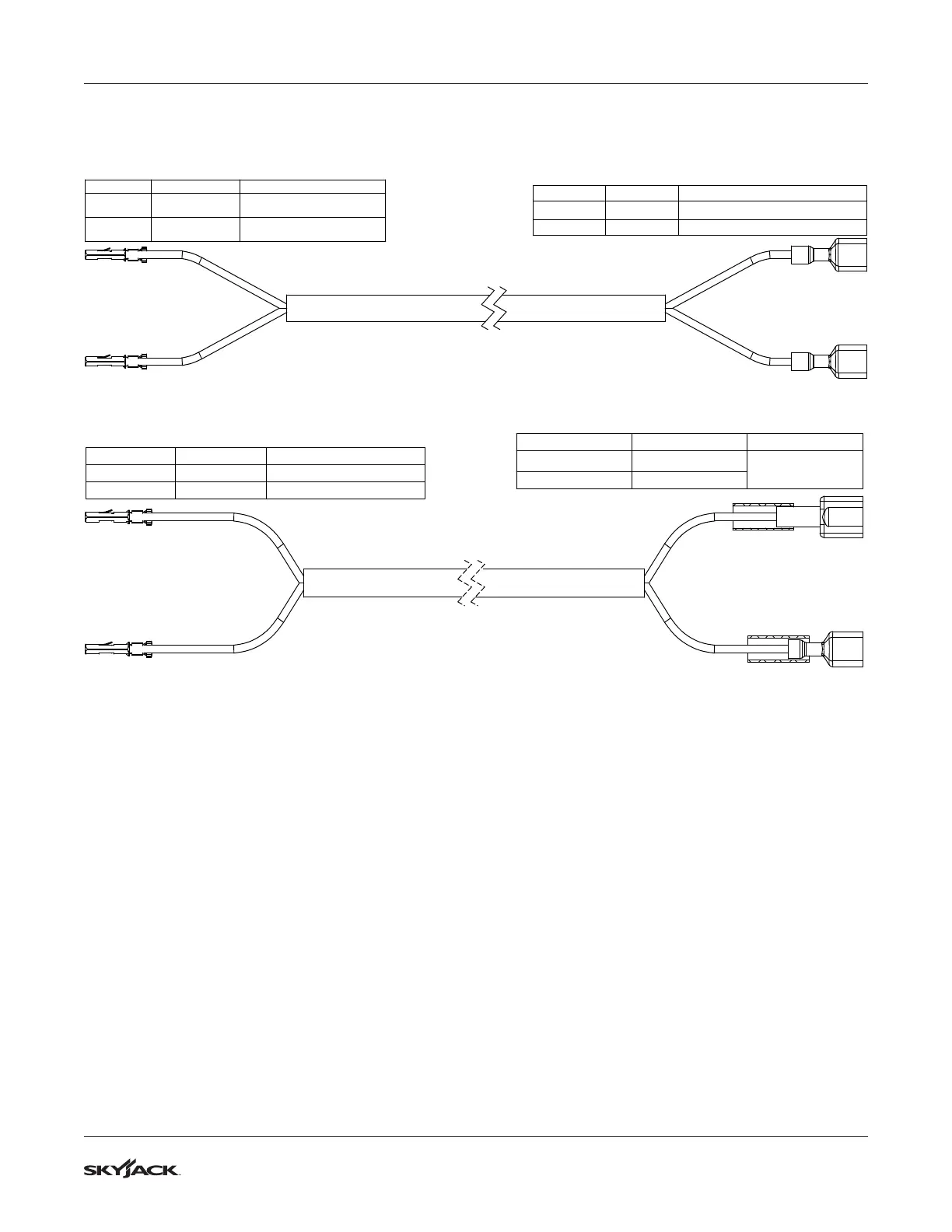

Powerdeck Harnesses Section 3 – System Component Identication and Schematics
CIRCUIT #
COLOR DESCRIPTION
26B
WHITE
TO PIN7 ON CONTROLLER P5
27B BLACK TO PIN10 ON CONTROLLER P5
CIRCUIT #
COLOR DESCRIPTION
26B
WHITE
TO POWERDECK EXTEND SOLENOID
27B BLACK TO POWERDECK RETRACT SOLENOID
Powerdeck Valve
CIRCUIT #
COLOR DESCIPTION
26A
WHITE
TO PIN2 ON EZ-LIFT P4
27A BLACK TO PIN3 ON EZ-LIFT P4
CIRCUIT #
COLOR DESCRIPTION
26A
WHITE
TO BASE CONTROL
HARNESS
27A BLACK
Powerdeck Base Control
M216896AB_M216895AB
Powerdeck Harnesses (continued)
