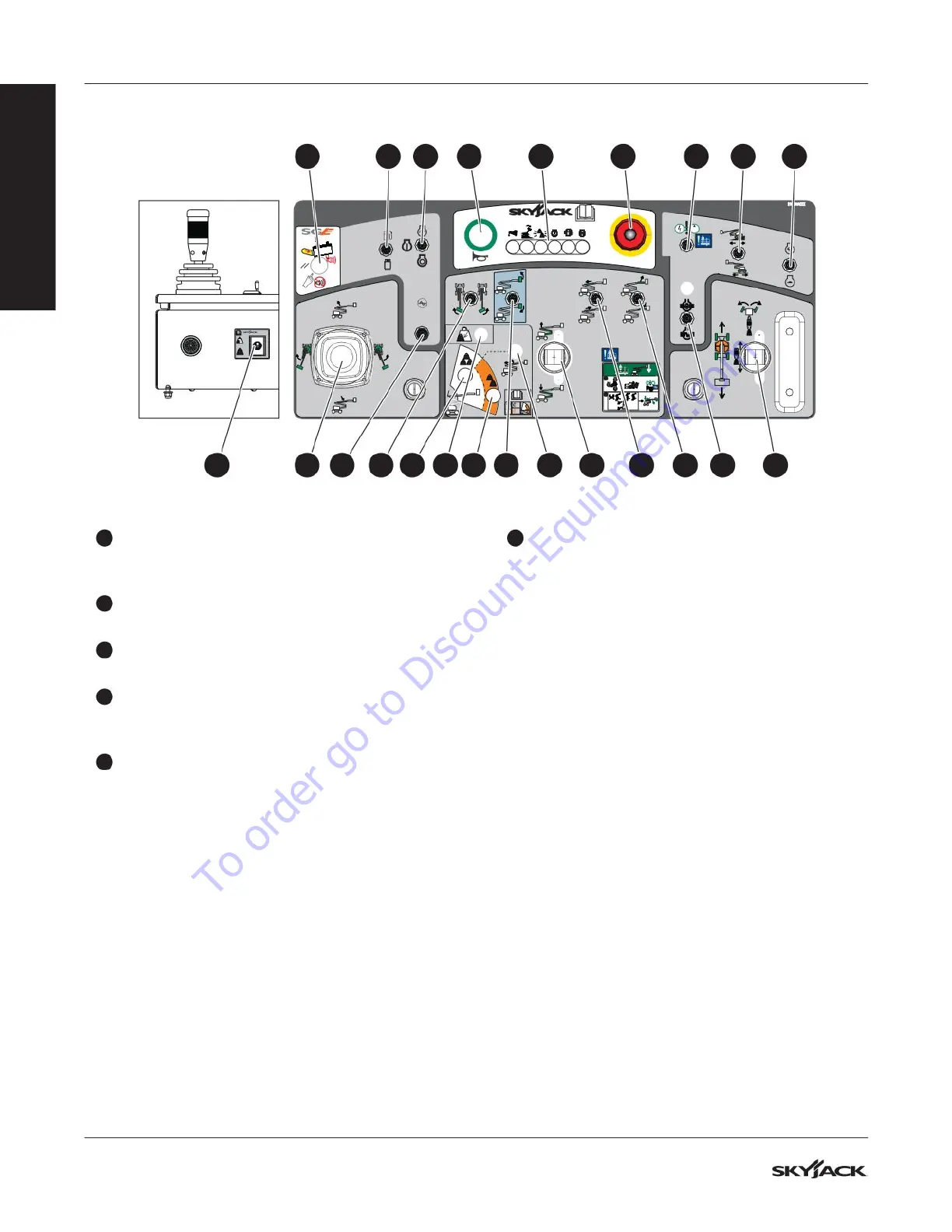

Section 3 – Familiarization Control functions
FAMILIARIZATION
7
18
High-capacity zone indicator: This light shows
the MEWP is in the high platform capacity zone.
Refer to Section 7.7.
7
19
Platform rotation: This switch controls the left or
right rotation of the platform.
7
20
Generator (optional equipment): This switch
turns the generator on or off.
1
21
Boom/turret controller: This dual-axis lever
controls the raise or lower function of the main
boom, and the left or right rotation of the turret.
7
22
Capacity derate switch: This switch controls
the platform capacity. This switch also derates
the platform capacity to adapt to specied
attachments. Refer to section 5.25, section 5.26
for operation, Section 7 for specications and
Section 8 for platform capacity label.
7
23
Capacity derate light: This light illuminates
when the capacity derate switch is selected.
It indicates the reduction in platform capacity.
Refer to section 5.25, section 5.26 for operation,
Section 7 for specications and Section 8 for
platform capacity label.
TM
1
2
+
TM
1 4 5 6 7 8 9
1011121314151617231819202122
2 3
