Technical diagrams Section 7 – Technical Diagrams and Specications

Technical diagrams continued

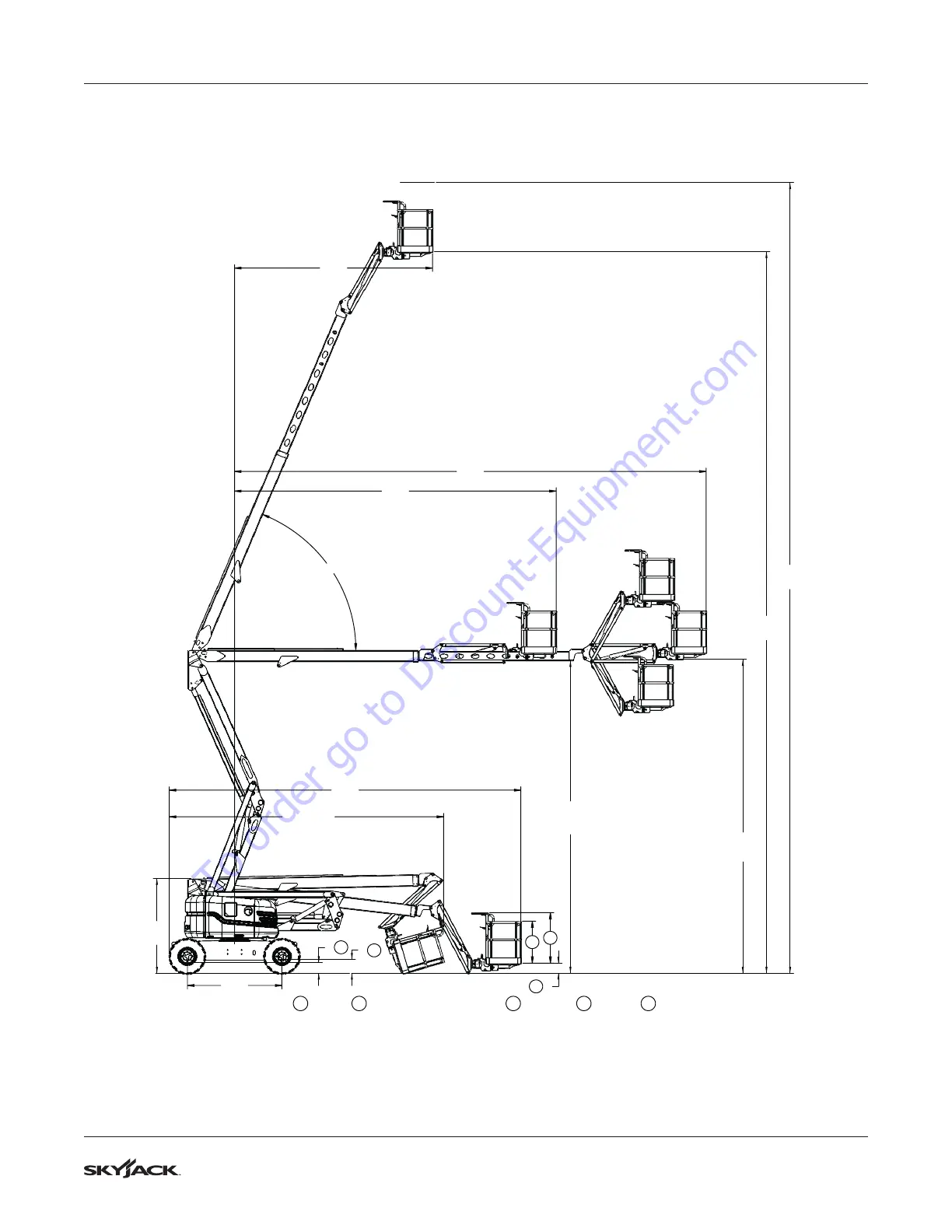

7.1-2 Dimensions - SJ63 AJ+

67°

12.19 m

[40 ft ]

8.33 m

[23 ft 4 in]

4.80 m

[15 ft 9 in]

8.38 m

[27 ft 6 in]

21.21 m

[69 ft 7 in]

19.38 m

[63 ft 7 in]

8.31 m

[27 ft 2 in]

9.14 m

[30 ft ]

10.03 m

[32 ft 11 in]

2.54 m

[8 ft 4 in]

2.44 m

[8 ft ]

A 0.33 m

[13 in]

B 0.37 m

[14.5 in]

C 1.12 m

[44 in]

D 1.35 m

[53 in]

E 0.28 m

[11 in]
