213211AAA
SJ63 AJ+
104

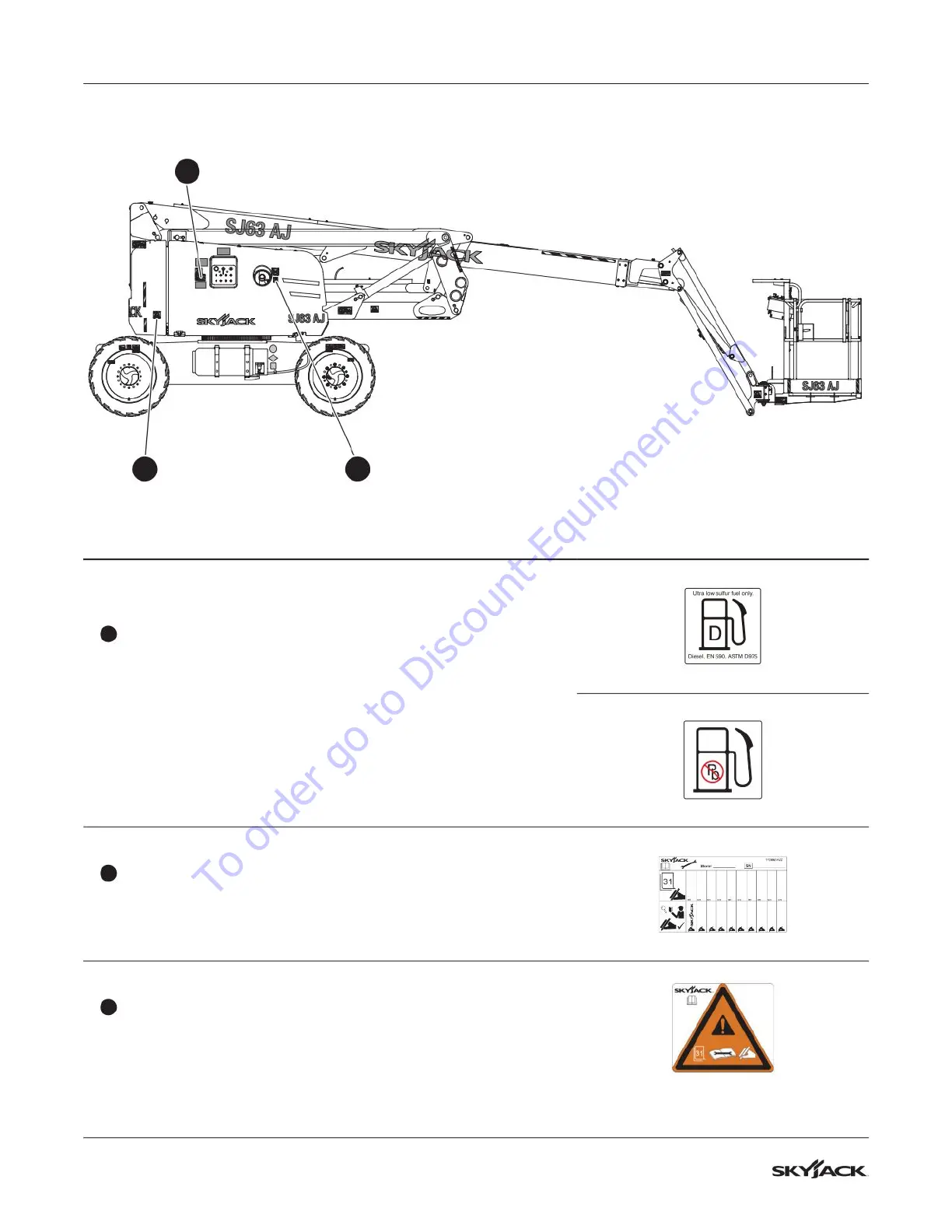

Section 8 – Labels
Controls side
Controls side (continued)
Descrip
tion
Label P
ictorial
15
Diesel
Only use ultra-low sulfur diesel fuel.
OR
Unleaded gasoline
Only use unleaded gasoline fuel.
16
Annual inspection
Make sure the MEWP has received an annual inspection before
operation.
17
W
arning - annual inspection
Refer to the operation manual. Make sure the annual and daily
inspections are done.
17
15
16
To
order
go
to
Discount-Equipment.com
97
99
Table of Contents
Table of Contents
5
Section 1 - about this Mobile Elevating Work Platform (MEWP)
9
Read and Heed
9
Mobile Elevating Work Platform (MEWP) Definition
9
Purpose of Equipment
9
Use of Equipment
9
Operation Manual
9
Operator
9
Service Policy and Warranty
9
Ownership of MEWP
9
Optional Equipment
9
Scope of this Manual
10
Primary Assemblies
11
Serial Number Nameplate
12
Maintenance Responsibility
13
Operator
13
Maintenance and Inspection Schedule
13
Owner
13
Section 2 - General Safety Precautions
14
Electrocution Hazards
14
Minimum Distance from Electrical Conductors
14
Safety Instructions
15
Fall-Protection
18
Worksite Inspection
18
Section 3 - Familiarization
19
Overview of the MEWP
20
Manual Storage Box
21
Control Functions
21
Main Power Disconnect Switch
21
Footswitch
21
Base Control Console
22
Platform Control Console
24
Features and Devices
27
Lowered Travel Position and Elevated Travel Position
27
Drive Speed
28
Drive Direction
28
Tilt Switch
28
Function Restrictions When the MEWP Is Tilted
28
Platform Load Sensing System
29
Overload Status
30
Brake-Release System
31
Secondary Guarding Electrical (SGE)
31
10 Drive-Bypass Valve
32
11 AC Power Socket on the Platform
32
12 Motion Alarm
32
13 Differential Lock Switch
32
14 Turret Transportation Lock
32
Optional Equipment and Attachments
33
Flashing Amber Light
33
Welder
33
Cold or Arctic Weather Package
34
Tool Tray
34
Glazier
34
Pipe Rack
35
Elevate™ Telematics - Access Control Unit
35
Section 4 - Inspections before Operation
37
Operator's Responsibility
37
Visual and Daily Maintenance Inspections
38
Labels
38
Electrical
38
Limit Switches
38
Hydraulic
38
Engine Compartment
39
Control Compartment
41
Base
43
Platform Assembly
45
Boom Assembly
46
10 Optional Equipment
47
Function Tests
48
Do a Test of the Main Power Disconnect Switch
48
Do a Test of the Base Keyswitch and the Emergency-Stop Button and Light
48
Functions
49
Do a Test of the Platform Self-Leveling
49
Do a Test of the Platform Capacity Zone Indicator Lights
49
Do a Test of the Emergency Power Unit
50
Do a Test of the Off/Base/Platform Switch
50
Do a Test of the Positive Air Shut-Off Switch (Optional Equipment)
51
Do a Test of the Emergency-Stop Button and Emergency-Stop Light on the Platform
52
10 Do a Test of the Load Sensing Module Self-Check
52
11 Do a Test of the Footswitch and All the Boom and Platform Functions
53
12 Do a Test of the Platform Capacity Zone Indicator Lights
53
13 Do a Test of the Secondary Guarding Electrical (SGE)
54
14 Do a Test of the Engine Start/On/Off Switch
55
15 Do a Test of the Emergency Power Unit
56
16 Do a Test of the Manual Platform-Leveling
56
17 Do a Test of the Steer Function
56
18 Do a Test of the Drive Function
57
19 Do a Test of the Brakes
57
20 Do a Test of the Horn
57
21 Do a Test of the Elevated Travel Speed
58
22 Do a Test of the Differential Lock Switch
58
23 Do a Test of the Oscillating Cylinders
59
Operator's Checklist
61
Section 5 - Operation
62
Energize the Base Control Console
62
Rotate the Platform with the Base Control Console
63
Rotate the Turret with the Base Control Console
63
Move the Jib up and down with the Base Control Console
63
Raise or Lower the Riser with the Base Control Console
63
Raise or Lower the Main Boom with the Base Control Console
63
Extend or Retract the Boom with the Base Control Console
64
Make the Platform Level with the Base Control Console
64
Operate with the Emergency Power Switch at the Base Control Console
64
Energize the Platform Control Console
64
Drive Forward or Rearward
65
Steer
65
Move the Jib up and down with the Platform Control Console
65
Move the Riser up and down with the Platform Control Console
66
Extend or Retract the Boom with the Platform Control Console
66
Make the Platform Level with the Platform Control Console
66
Rotate the Platform with the Platform Control Console
66
Raise or Lower the Main Boom with the Platform Control Console
66
Operate the Horn
66
Rotate the Turret with the Platform Control Console
66
Operate with the Emergency Power Switch at the Platform Control Console
67
Engage or Disengage the Differential Lock Switch
67
MEWP Shutdown
67
Generator (Optional Equipment)
67
Glazier Tray (Optional Equipment)
67
Pipe Rack (Optional Equipment)
67
Cold or Arctic Weather Package (Optional Equipment)
68
Section 6 - Additional Procedures
69
Use the Emergency-Lowering Function
69
At the Base Control Console
69
At the Platform Control Console
69
Chassis Tilt Recovery
70
Platform Uphill
70
Platform Downhill
70
Release the Brakes Manually
71
Winch and Tow the MEWP
72
Refuel
73
Refuel the MEWP with Diesel or Gasoline
73
Replace the Propane Cylinder (Optional Equipment)
74
Move the MEWP for Transport
75
Lock the Turret
75
Hoist the MEWP
76
Tie down the MEWP
77
Section 7 - Technical Diagrams and Specifications
78
Technical Diagrams
79
Reach Diagram - SJ63 AJ
79
Dimensions - SJ63 AJ
80
Standard and Optional Equipment
82
Owner's Annual Inspection Record
83
Specifications
84
Environment
85
Tire/Wheel Specifications
85
Maximum Platform Capacities (Evenly Distributed)
86
Floor Loading Pressure
86
Section 8 - Labels
87
Engine Side
88
Engine Compartment
91
Front and Rear Sides
93
Controls Side
94
Control Compartment
100
Platform
103
Platform Control Console
109
Section 9 - Unique Skyjack Features
112
