Section 3 – Familiarization Overview of the MEWP
FAMILIARIZATION

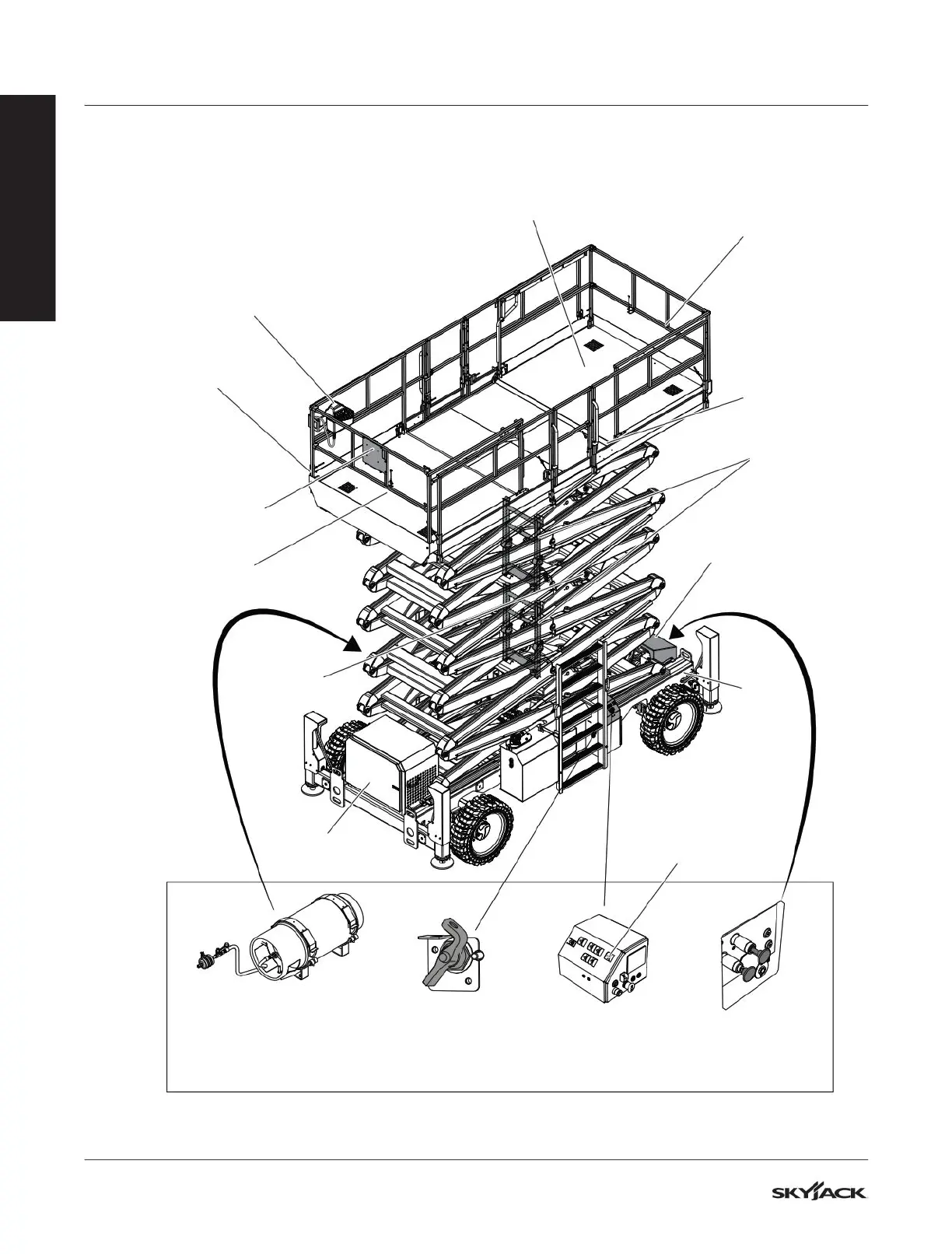

3.1 Overview of the MEWP
Brake-release
system/
freewheeling valve
Base control
console
Main power
disconnect switch
Propane cylinder
Manual
storage box
Base
Lift
mechanism
Extension
platform
Fall-protection
anchorage
Platform control console
Platform
Maintenance
support
AC power
socket
Folding-guardrail
system
Engine
control console
Hydraulic
compartment
Emergency-
lowering switch
