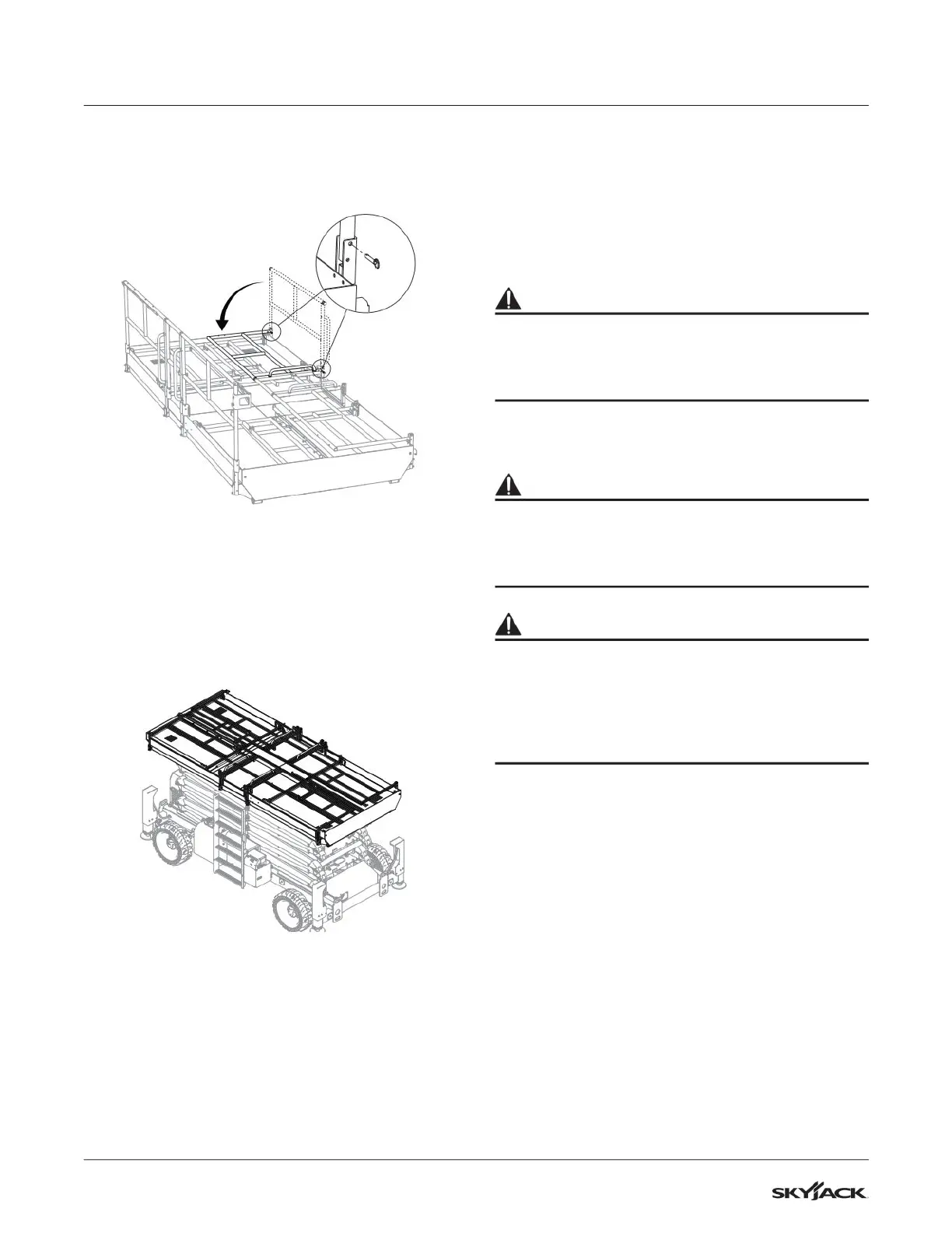

Section 6 – Additional Procedures Fold the guardrail
17. Remove the lock-pins from the rear-left guardrail
and fold it down.
18. Install the lock-pins to lock the rear-left
guardrail.
19. Remove all the lock-pins on the rear-right
guardrail and the right gate.
20. Pull the gate latch, and fold down the rear-right
guardrail along with the right gate.
21. Remove the lock-pins from the front-right
guardrail and fold it down.
22. Install the lock-pins to lock the front-right
guardrail.
23. Use the MEWP ladder to exit the platform.
6.8-2 Unfold the guardrail system
1. Make sure the MEWP is on firm, level ground.
2. Make sure you fully lower the platform.
3. Push the emergency-stop button on the base
control console.
4. Turn the main power disconnect switch to the
off position.
WARNING
Fall Hazard. Use the three points of contact
principle when you use the MEWP ladder to enter
or exit the platform. If you do not obey, there is a
risk of death or serious injury.
5. Use the MEWP ladder to enter the platform.
6. Close the gate.
WARNING
Fall hazard. To prevent a fall, keep away from the
sides of the platform when you fold or unfold the
guardrails. If you do not obey, there is a risk of
death or serious injury.
WARNING
Fall hazard. Install each lock-pin correctly with
the detent ball of each lock-pin fully through the
guardrail. The guardrail system must be in the
vertical position. An incorrectly locked guardrail
can cause a fall, which can cause death or serious
injury.
7. Unfold the front-right guardrail, and install all the
lock-pins.
8. Unfold the rear-right guardrail and the right gate,
and install all the lock-pins. Push the right gate
back into the gate latch.
9. Unfold the rear-left guardrail, and install all the
lock-pins.
10. Unfold the front-left guardrail and the left gate,
and install all the lock-pins. Push the left gate
back into the gate latch.
11. Unfold the rear-right extension guardrail and
install all the lock-pins.
12. Unfold the front-right extension guardrail and
install all the lock-pins.
