SJ9233 RT, SJ9243 RT, SJ9253 RT 221491AAA

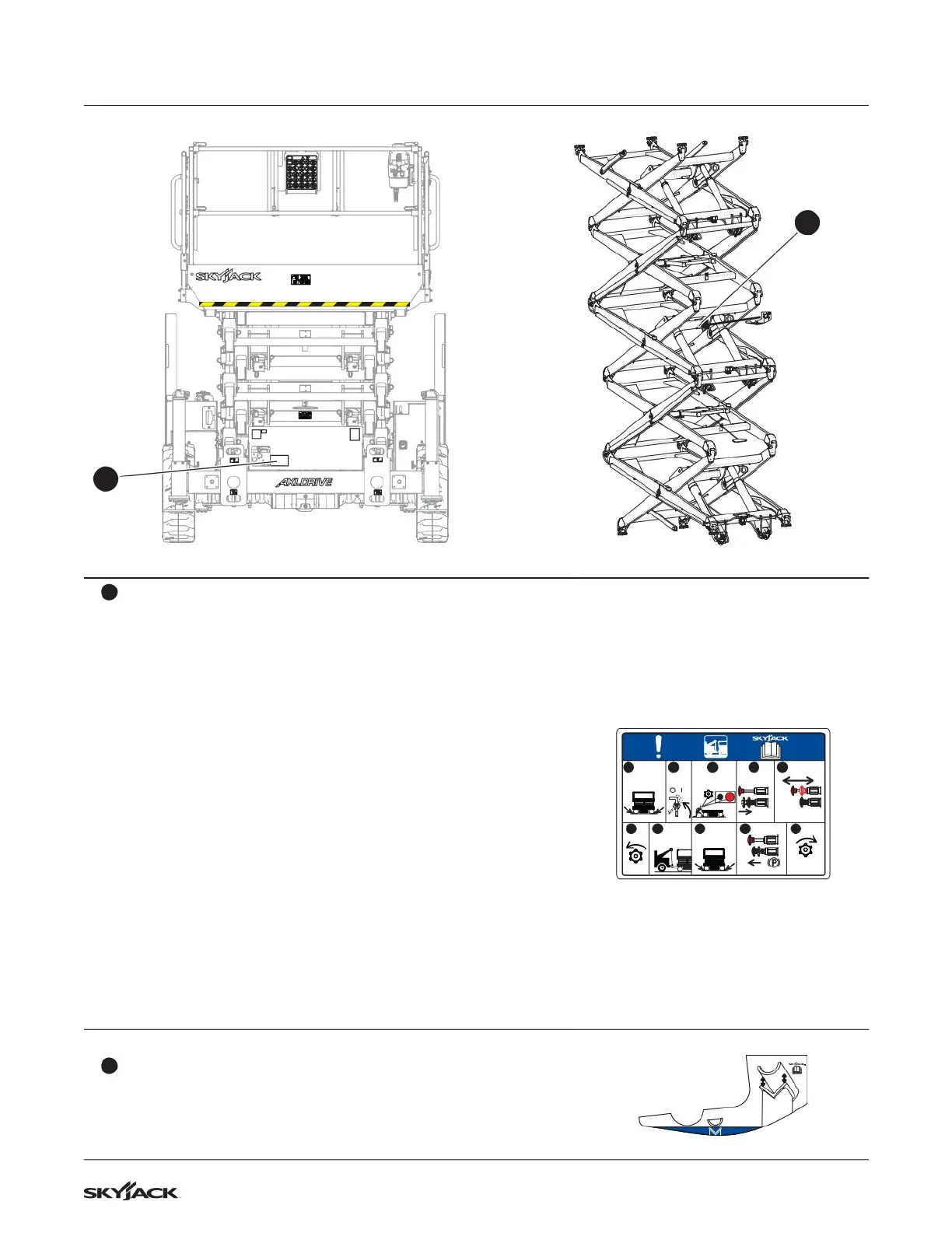

SJ9233 RT, SJ9243 RT, & SJ9253 RT labels Section 8 – Labels
Description Label Pictorial
12
Winch and tow procedure
Refer to the operation manual.
1. Use wheel chocks or blocks at the front of the wheels and
behind them to prevent MEWP movement.
2. Turn the main power disconnect switch to the off position.
3. Find the freewheeling valve and the drive manifold at the
rear of the base.
4. Push the plunger of the brake auto-reset valve.
5. Continuously push and release the knob of the hand pump
until firm resistance is felt or until the pressure gauge
(optional equipment) shows 300 - 350 psi (21 - 24 bar). The
brake is now released to permit wheel rolling.
6. Turn the freewheeling valve counterclockwise to the fully
open position.
7. Push, winch, or tow the MEWP to the necessary location.
8. Use wheel chocks or blocks at the front of the wheels and
behind them to prevent MEWP movement.
9. Pull out the plunger of the brake auto-reset valve to re-
engage the brakes.
10. Turn the freewheeling valve knob clockwise to a fully close
position.
173227ABZZ
10-30
5
6 7
8
4
1
2
3
TM
9
10
13
Distance mark for the lower maintenance support
(SJ9253 RT)
Make sure the top of the lower maintenance support is below
the blue mark found on the cylinder mount.
Rear side (continued)
13
12
