Skyjack SJ9253 RT - 18 Do a Test of the Auto-Level (Optional Equipment)

54
221491AAA SJ9233 RT, SJ9243 RT, SJ9253 RT
Section 4 – Inspections Before Operation Function tests
10. Squeeze the function-enable switch
4
and
push the controller handle
5
to deploy all
four outriggers. When the first outrigger hits the
ground (observed as the initial movement), stop
lowering the outriggers, and observe all four
outriggers.
▪
Result: All four legs have moved more than
5 cm (2 in) and all the pads are near the
ground.
11. Resume the deployment of the outriggers until
the platform has leveled itself.
▪
Result: All four outriggers extend until they
hold the MEWP weight and put the MEWP
in a level position. The outriggers stop
automatically when the platform is level. The
outrigger light goes on
8b
.
4.3-18 Do a test of the auto-level (optional
equipment)
Refer to Section 5.9 for the auto-level operation.
NOTE
Make sure that you:
▪
Park the MEWP on a firm, level surface. Remove
all obstructions.
▪
Fully lower the platform.
▪
Fully retract the outriggers.
WARNING
If the outrigger interlocks fail to operate correctly,
lock and tag the MEWP. Remove the MEWP for
servicing. Only a qualified service technician must
repair the MEWP. If you do not obey, there is a risk
of death or serious injury.

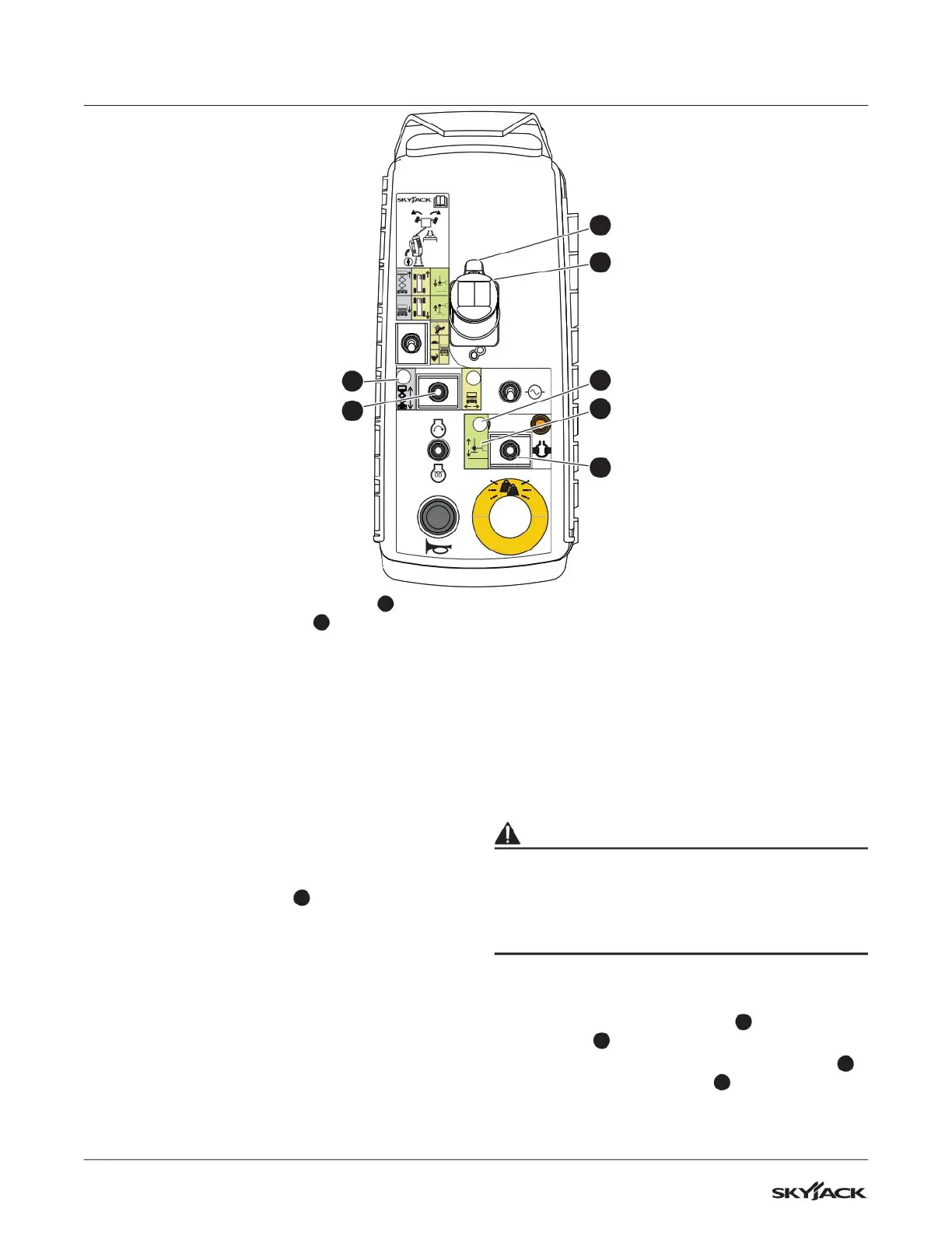

1. Use the MEWP ladder to enter the platform.
2. Start the engine. Refer to Figure 06.
3. Move the lift/off/drive switch
3
to the lift
position
3b
.
4. Move the auto-level/differential lock switch
8
to the auto-level position
8a
.
TM
4
5
3
3b
8a
8
8b
