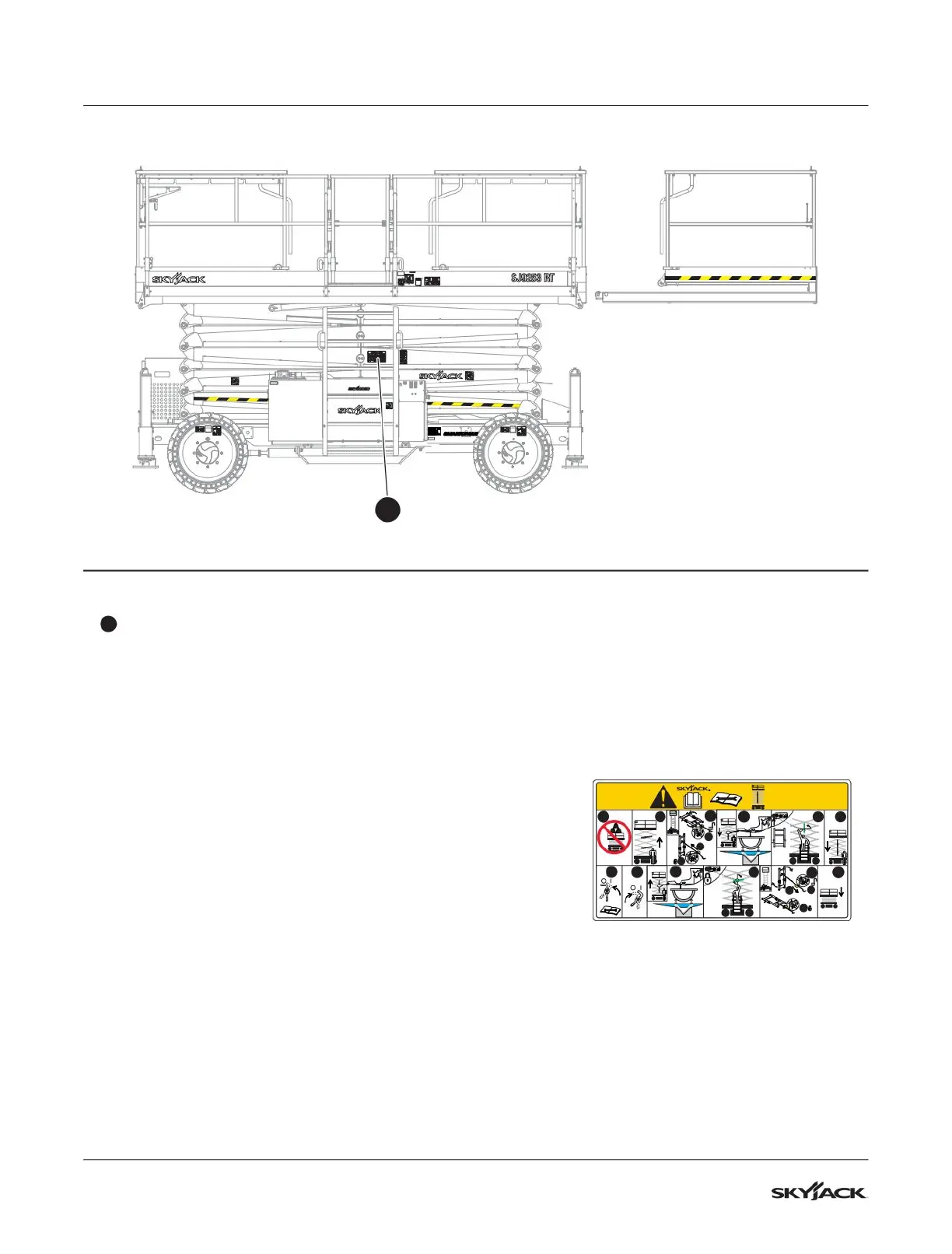

Section 8 – Labels SJ9233 RT, SJ9243 RT, & SJ9253 RT labels
Description Label Pictorial
8b
Maintenance supports procedure (SJ9253 RT)
Refer to the operation manual.
1. Remove all personnel and material from the platform.
2. Raise the platform until there is adequate clearance to deploy
the maintenance supports.
3. Deploy the lower maintenance support:
a. Remove the maintenance support rod from the keyhole
at the rear side of the MEWP.
b. Push the rod handle so that the maintenance support is
in a vertical position. Align the lower maintenance support
with the pipes on the cross member.
c. Put the rod back into the keyhole.
4. Lower the platform until the top of the support is just below
or at the blue mark found on the top cylinder mount.
5. Deploy the top maintenance support:
▪
Go up the MEWP ladder.
▪
Turn the latch on the scissor assembly to deploy the top
maintenance support. Make sure that it is in a vertical
position. Align the top maintenance support with the pipes
on the cross member.
▪
Go down the MEWP ladder.
Continue to next page.
