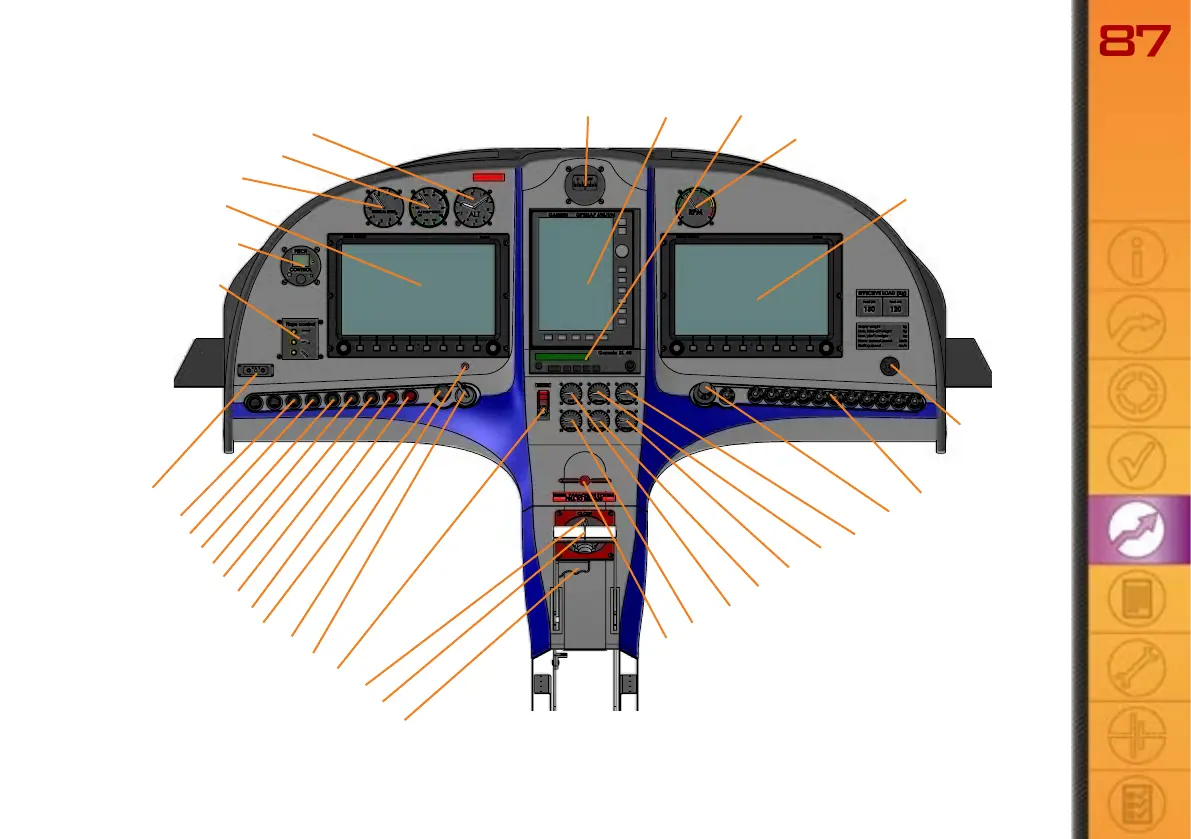

7.5. Instrument panel
Flap position display
Airspeed indicator
Emergency Parachute System handle
Dynon EFIS
Altimeter
Throttle lever
GPS
Engine speed indicator
Socket 12V/10A
Dynon EMS
Starter button
Fuse switches
HEATING P ON - handle
Ventilation P ON - handle
Transciever
Fuel cock
Propeller control panel
Avionics switch
Choke handle
Fuel pump switch
Magneto B switch
Magneto A switch
Master switch
Head light switch
Position light switch
ELT control
Oil temp. indic.
Compass
Water temp. indic.
Intercom switch
Charging LED indicator
Water press. indic.
Oil press. indic.
CHT indic.
Fuel press. indic.
Variometer
