Assembly
- Clean all parts before assembly. If Tefl on assembly head washer is worn down, so
that piston rod touches case, it is necessary to replace it.
- Lubricate upper body chamber between tefl on washers with BR 2 plus
- Lubricate piston rod with BR2 plus
- Hold lower body of the shock absorber in a bench vise with soft jaws. Put on rubber
springs (10 pieces) and duralumin washers (9 pieces) alternately.
- Insert upper body of the shock absorber
- Screw M6 bolt in to have adjusted axis distance 320 ± 0,2 mm (12.5980.0079 in)
- Screw bolt by self-locking M6 nut and LOCTITE 246

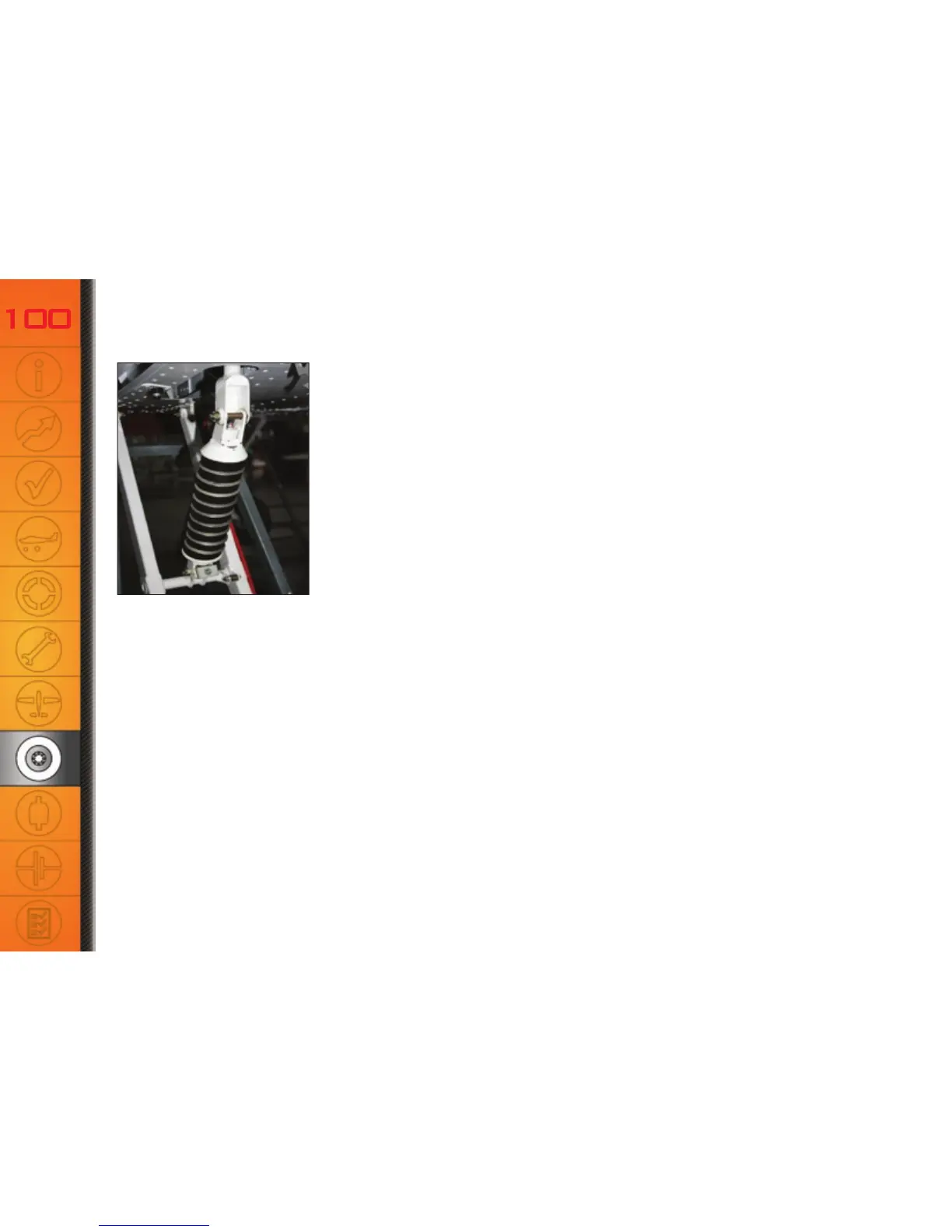

Disassembly and assembly of main xed LG shock absorber3.3.
Disassembly:
- clean up shock absorber
- remove self-locking nut from upper attach point of absorber (in the middle of absorber)
- slide off the M8 screw and the spacing tube
- unscrew two M3 screw from upper stop
- expand both parts of the absorber
- unscrew the M5 screw from the plastic top of the bottom part the absorber
- remove plastic top and plastic bearing
- remove upper stop – this will lose the rubber spring and metal fi llers
