Assembly

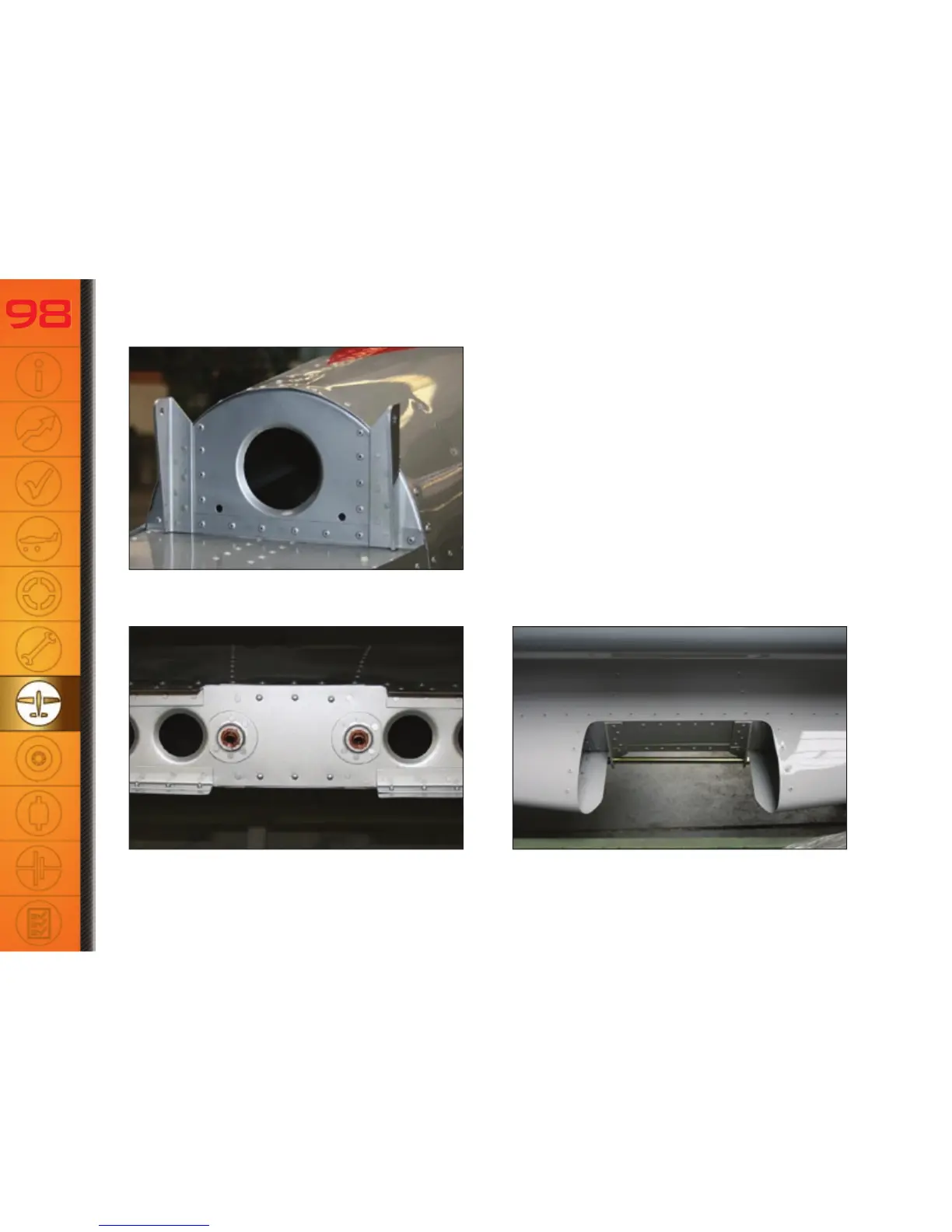

- Clean up attachment points and lubricate using BR-2plus
- Insert the rear attachment points into attachment bolts on
the fi n
- Insert the bolt through the spacing tube placed between
the front attachment points
- Put a washer on, screw the M6 nut and tighten it a bit
- Tighten the nut of the stabilizer bolt (9,5 Nm (7.01 lbf.ft)) and
secure with new split pin
- Take the trim cable and maintain original position and fi x
the cables to stabilizer by the clip
- Put the fi ber glass “boot” and secure by M4 screws
