Page 26
ERGON SERVICE • REV0
CAUTION
RemovalofbothStopPinscouldresult
in damage to internal cables and to
equipment.

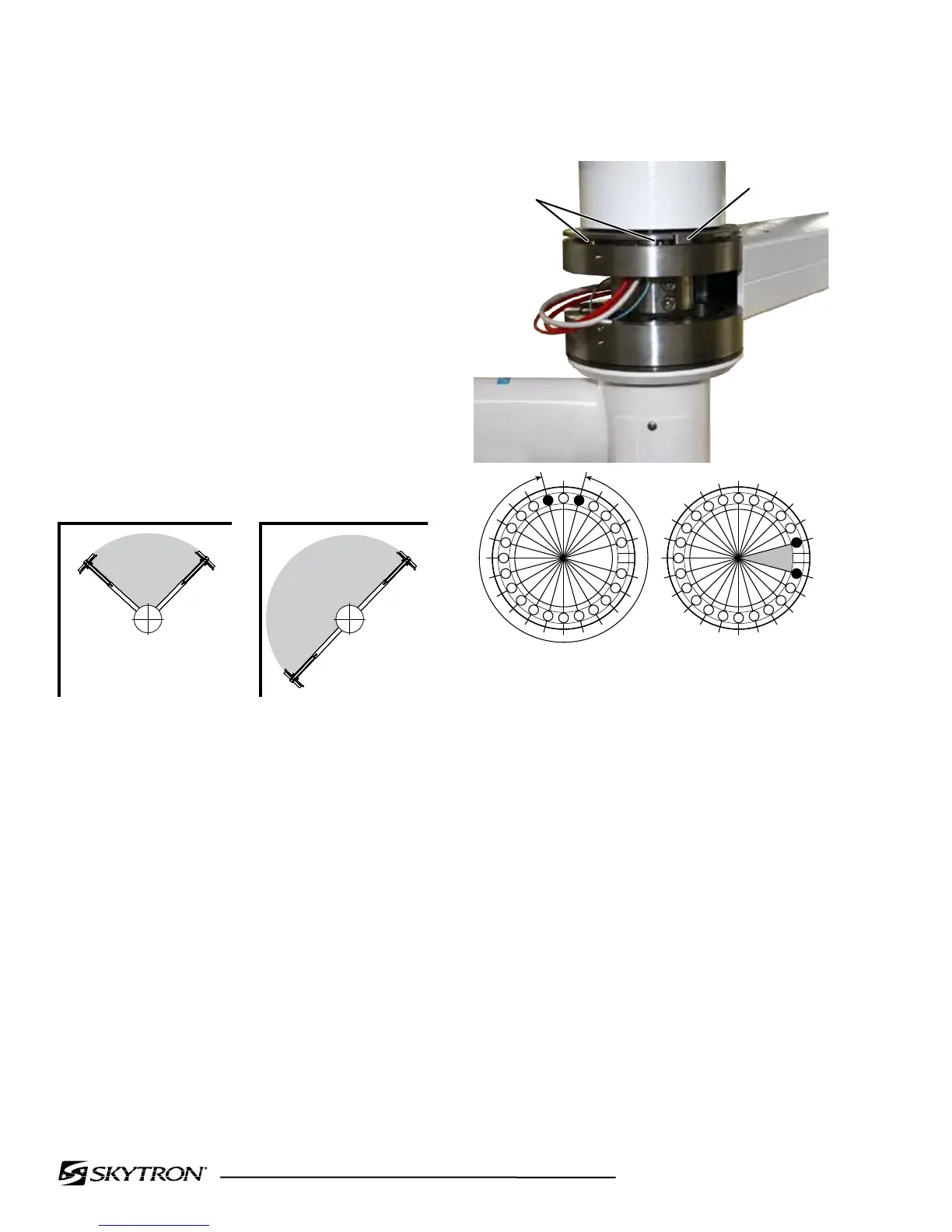

a. Upper Radial Arm Rotation Position
Adjustment
The degree of rotation provided by the upper
bearingstopscanbepositionedasdesiredforthe
relationshipofthearmassemblytotheroom.Refer
togure5-21.Itisrecommendedthattheupper
armsrotateawayfromthesurgicaleldandthat
the lower arms rotate underneath the upper arm.
STOP
AREA
DESIRED
STOP
AREA
5-7. AFC Lightweight Utility Arm Series Adjustments
Figure 5-21.
To alter the position of the rotation stops for the
mountinghub,usethefollowingprocedure.
1. Rotate the appropriate arm in the
directionofthestoptobeadjusteduntilitcontacts
the stop.
2. RemovetheboltthatsecurestheStop
PlateandremoveStopPin.Refertogure5-22.
Figure 5-22.
3. Rotate the arm to the new stop position.
Replace the Stop Pin, Stop Plate and secure with
bolt.
4. Repeat steps 2 & 3 to adjust other stop
if desired.
STOP
PINS
upper arm rotation adjustment
15°
STOP
PLATE
