ERGON SERVICE • REV0
4. Loosentheretainingboltontheopposite
sideoftheEccentricCamAdjuster.Refertogure
5-32.

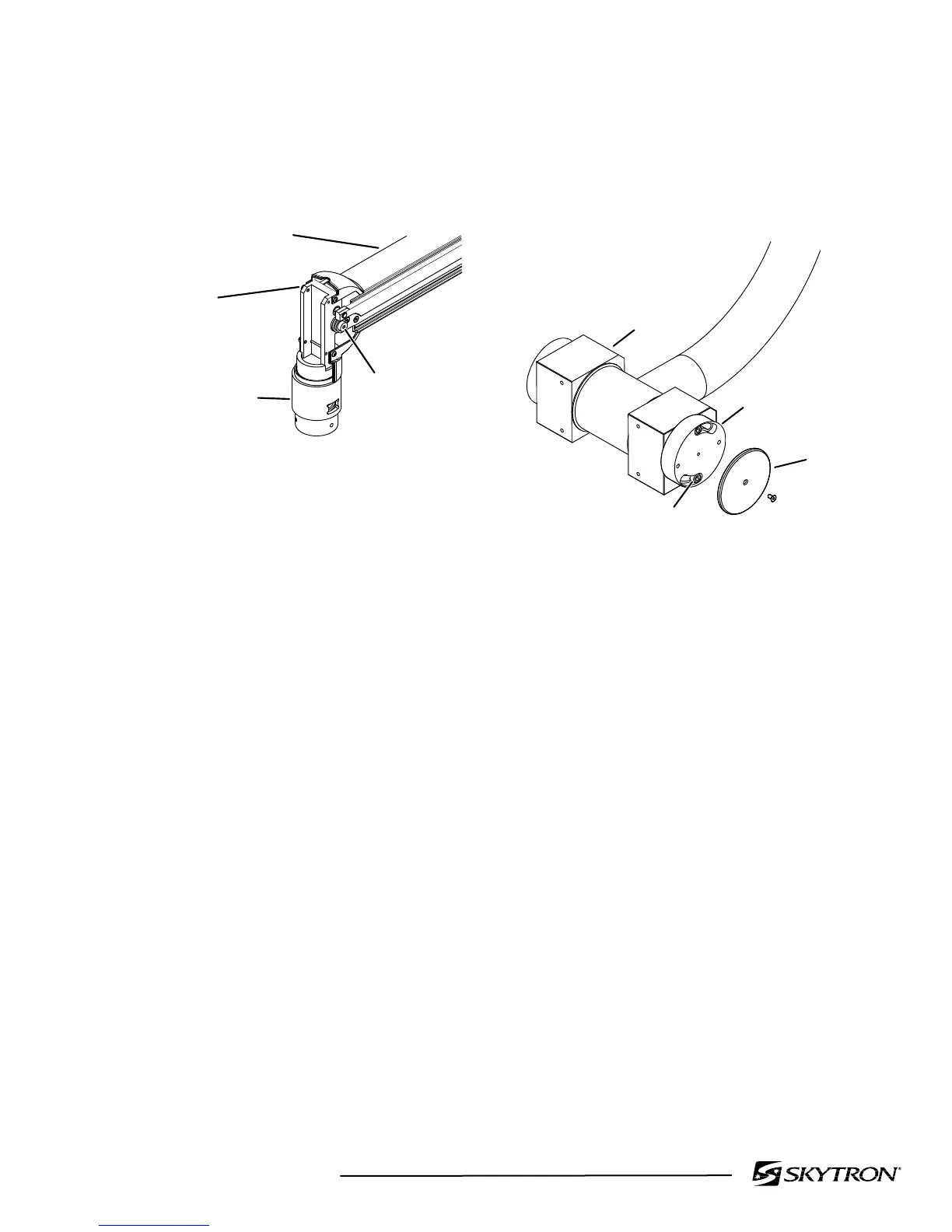

Figure 5-32. Eccentric Cam Adjuster
5. Using an open end wrench, adjust the
eccentric cam until the level on the Vertical Support
Tubeindicatesthetubeisplumb.
6. Tighten the locking bolt and test the
arm through its full range of motion. The Vertical
SupportTubeshouldremainplumb.
7. Replace all covers.
LEVEL PLACED
ON THIS SURFACE
PLUMB
ADJUSTMENT
ECCENTRIC
CAM
PLUMB
ADJUSTMENT
ALLEN BOLT
LEVEL PLACED
ON THIS SURFACE
eccentric cam adjuster
c. FC Monitor Mount
The tension for the FC Monitor Mount can be
adjustedtoachieveproperbalanceforthemonitor.
Use the following procedure to adjust the tension.
Refertogure5-33.
Figure 5- 33.
CAUTION
Do not adjust the set screw located on
backsideofthemonitorbracketasthis
willinternallydamagethebracketand
thebracketwillneedtobereplaced.
1. With the monitor installed, remove the 2
DecorativeCoverCapsontheMonitorArmBracket
to expose the Tension Adjuster.
2. Slightlyloosen,butdonotremove,the
4allenbolts(2oneachside).
3. Turn the Spring Tension Adjuster
clockwisefortherightsideandcounterclockwise
for the left side to increase tension (both sides
shouldbeadjustedevenly).Tightentheallenbolts
to prevent the tension from decreasing.
4. Once the tension has been adjusted
and the bolts tightened, install the Decorative
Cover Caps.
SPRING TENSION
ADJUSTER
ALLEN BOLT
DECORATIVE
CAP
SET
SCREW
FC1 decorative cap
