ERGON SERVICE • REV0

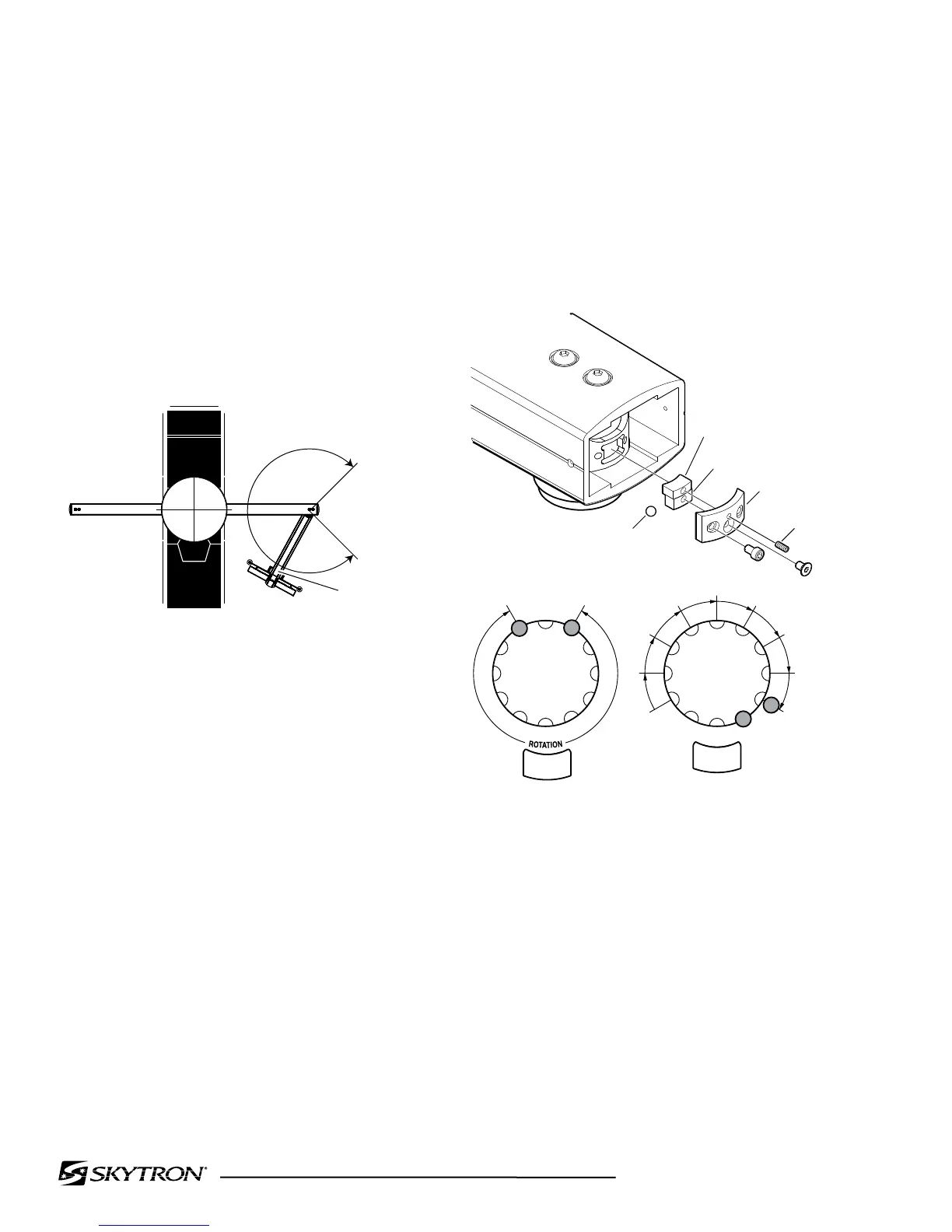

Figure 5-26.
CAUTION
It is necessary to support the arm
assembly prior to removal of any
hardware. Failure to do so will result
in the inadvertent release of the arm.
d. Lower Radial Arm Rotation Position Adjustment
Figure 5-27.
LOWER
ARM
lower arm rotation
SET
SCREW
BALL STOP
DEGREE OF ROTATION
15° TO 255° IN 15° INCREMENTS
15
45
75
105
135
165
195
225
255
ROTATION POSITION
BRAKE KEY
STOP
KEY
BRAKE
MOUNTING
PLATE
*
ONE BALL ALLOWS 270° ROTATION
*
NOTICE
TheBrassBrakekeyisusedtosecure
the lower arm to the upper arm.
Determine Stop Ball placement for lower radial arm.
Thestopareashouldbeasshowningure5-26.
CAUTION
Do not rotate Radial Arms more than
360°withoutsettingthestops.Damage
to the equipment could occur.
