Page 6
The Stellar ST19 series surgical lighting system
from SKYTRON features fully adjustable position-
ing control for its cool, color-corrected, multiple
bulb, light source. Combinations of vertical posi-
tioning and multiple rotational capabilities allow the
single or dual lighthead models virtually limitless
positioning.
The fixtures are single point ceiling mounted with a
continuous 360 degree rotation capability at the
ceiling mount end of the radial support arm. See
figure 1-1. The balance mechanism which is at-
tached to the radial arm by a vertical support tube,
provides the lighthead an additional continuous 360
degree rotation point. The balance mechanism is
an enclosed spring tension system. This allows
vertical movement of the lighthead while maintain-
ing the lighthead position without drifting. The yoke
provides additional 360 degree rotation points for
lighthead pitch and roll.
The ST19 fixtures have a lighthead vertical travel
capability of 110°.
The standard ST19 series has a lighthead mounted
ON/OFF/Intensity control switch and the fixture
fuse is located in the Ceiling Cover. The ST19WC
series utilizes a Wall Control which contains the
Main Power switch, Intensity control and fuses.
All lightheads have a removable, sterilizable, posi-
tioning handle. This allows all final positioning ad-
justments or changes to be precisely done by the
surgeon. Non-sterile handles are also provided for
Nurse positioning. See figure 1-2.

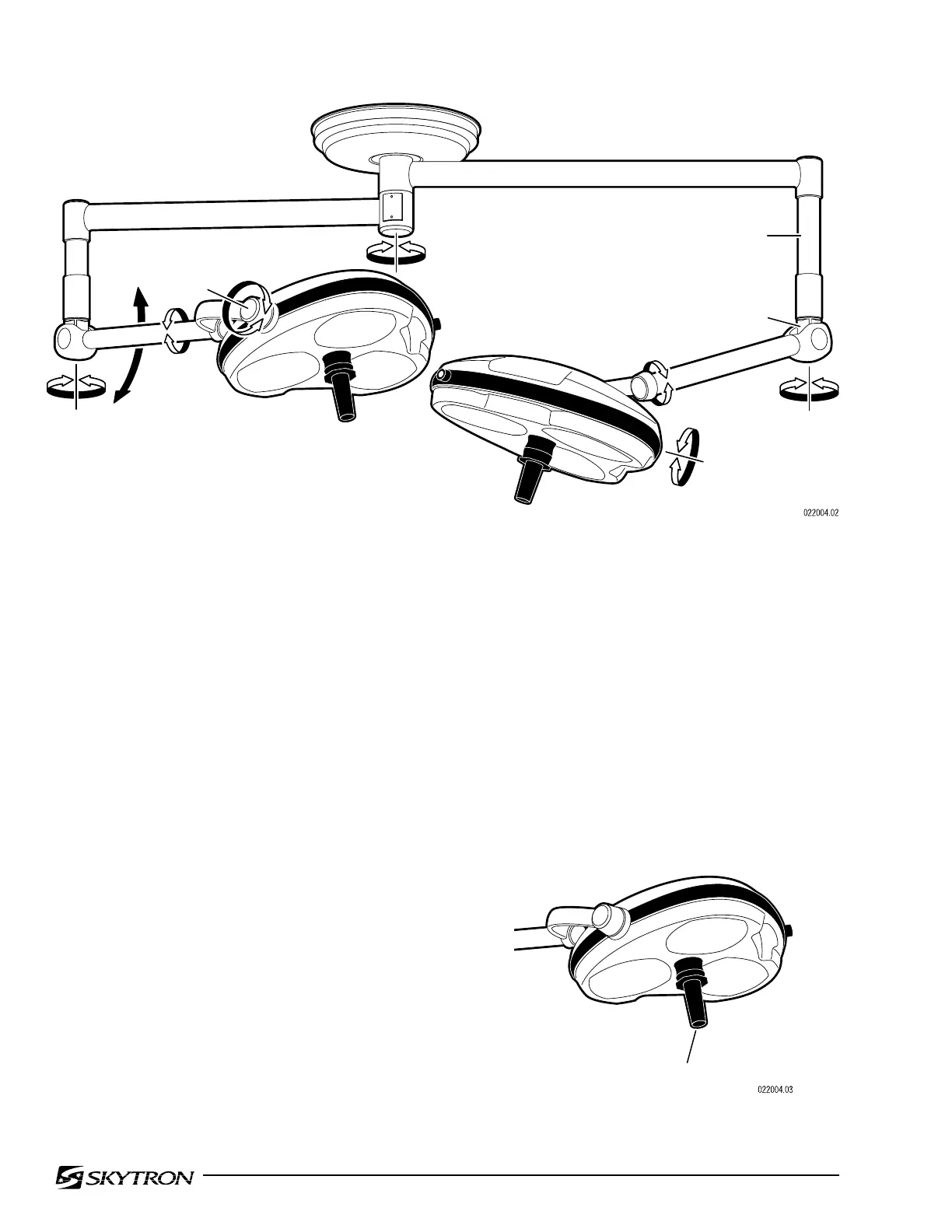

Figure 1-1. Light Fixture Rotation Capabilities
SECTION I INTRODUCTION
Figure 1-2. Positioning Adjustments
360˚
360˚ 360˚
PITCH
360˚
VERTICAL SUPPORT TUBE
PITCH
360˚
ROLL
360˚
ROLL 360˚
BALANCE MECHANISM
110˚
VERTICAL
TRAVEL
STERILIZABLE POSITIONING HANDLE
