3.4.2 Input and status display
This AOI displays the cyclic objects of VLC-2-EIP and a selection of statusword bits relevant for
in the context of PLC programming. Note that statusword bits that are associated with drive
faults are part of the Fault Management AOI. Meanwhile, the digital inputs can be monitored in
the Digital I/O AOI.

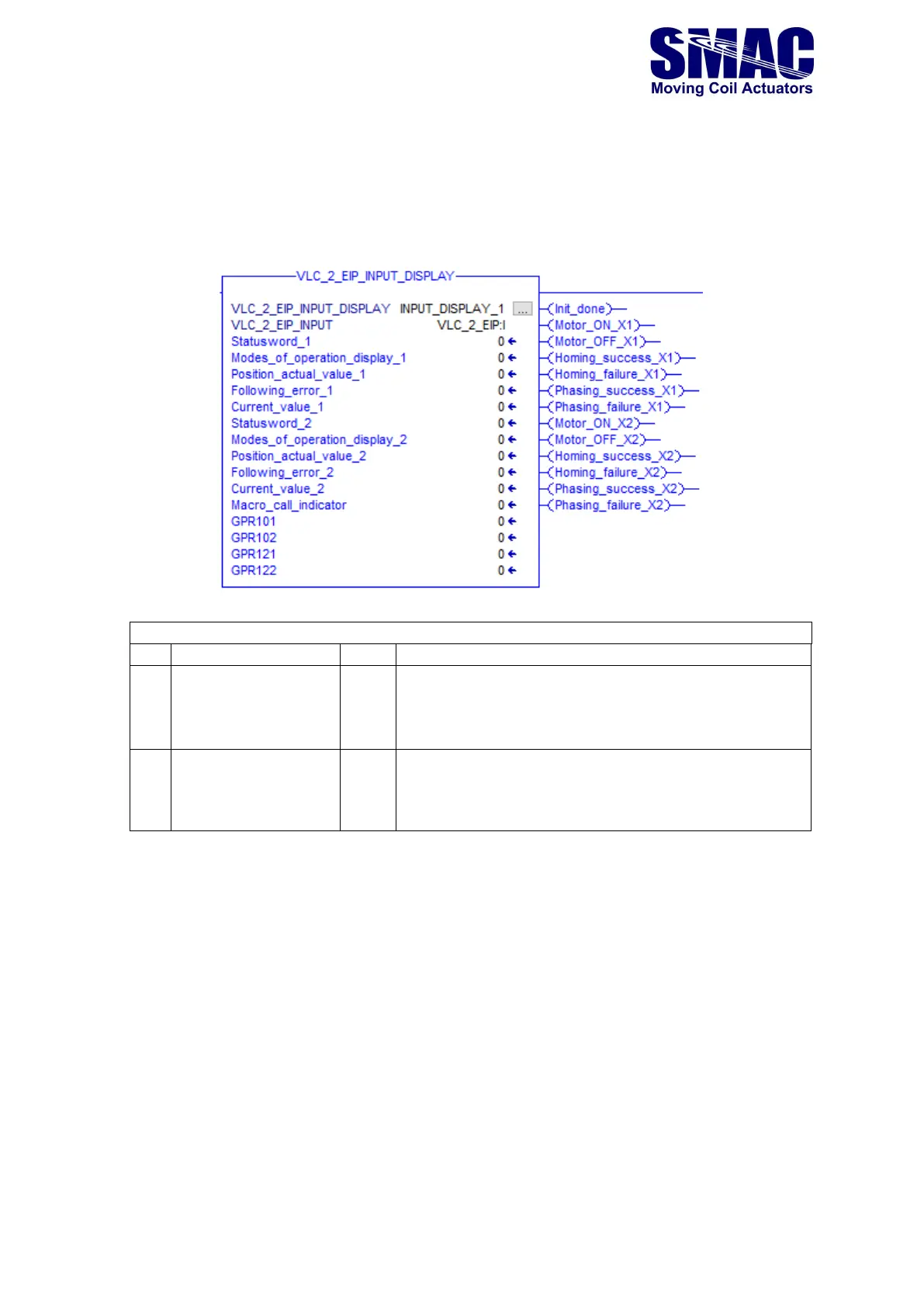

Input and Status Display AOI: input and output parameters
Parameter
Unit
Description
INPUT
VLC_2_EIP_INPUT
N/A
The input data of the VLC-2-EIP as they appear in the
‘Controller Tags’. Typically, under the name of
‘VLC_2_EIP:I’
OUTPUT
(shown in the AOI
picture above)
See section 3.1.2 of this manual for explanations of the
various cyclic objects incl. statusword.
