3.4.3 Digital I/O
This AOI controls the digital outputs and displays the digital inputs status.
Digital I/O AOI: input and output parameters
Parameter
Unit
Description
INPUT
VLC_2_EIP_INPUT
N/A
The input data of the VLC-2-EIP as they appear in the
‘Controller Tags’. Typically under the name of
‘VLC_2_EIP:I’
DIGITAL_OUTPUT_X
N/A
Where X = 0, 1, 2, 3 ; indicates the state of digital output
channel of VLC-2-EIP. By setting this parameter with a bit
value: 1, the digital output turns ON, and vice-versa.
OUTPUT
VLC_2_EIP_OUTPUT
N/A
The output data of the VLC-2-EIP as they appear in the
‘Controller Tags’. Typically, under the name of
‘VLC_2_EIP:O’
DIGITAL_INPUT_X
Where X = 0, 1, 2, 3 ; indicates the state of digital input
channel of VLC-2-EIP.

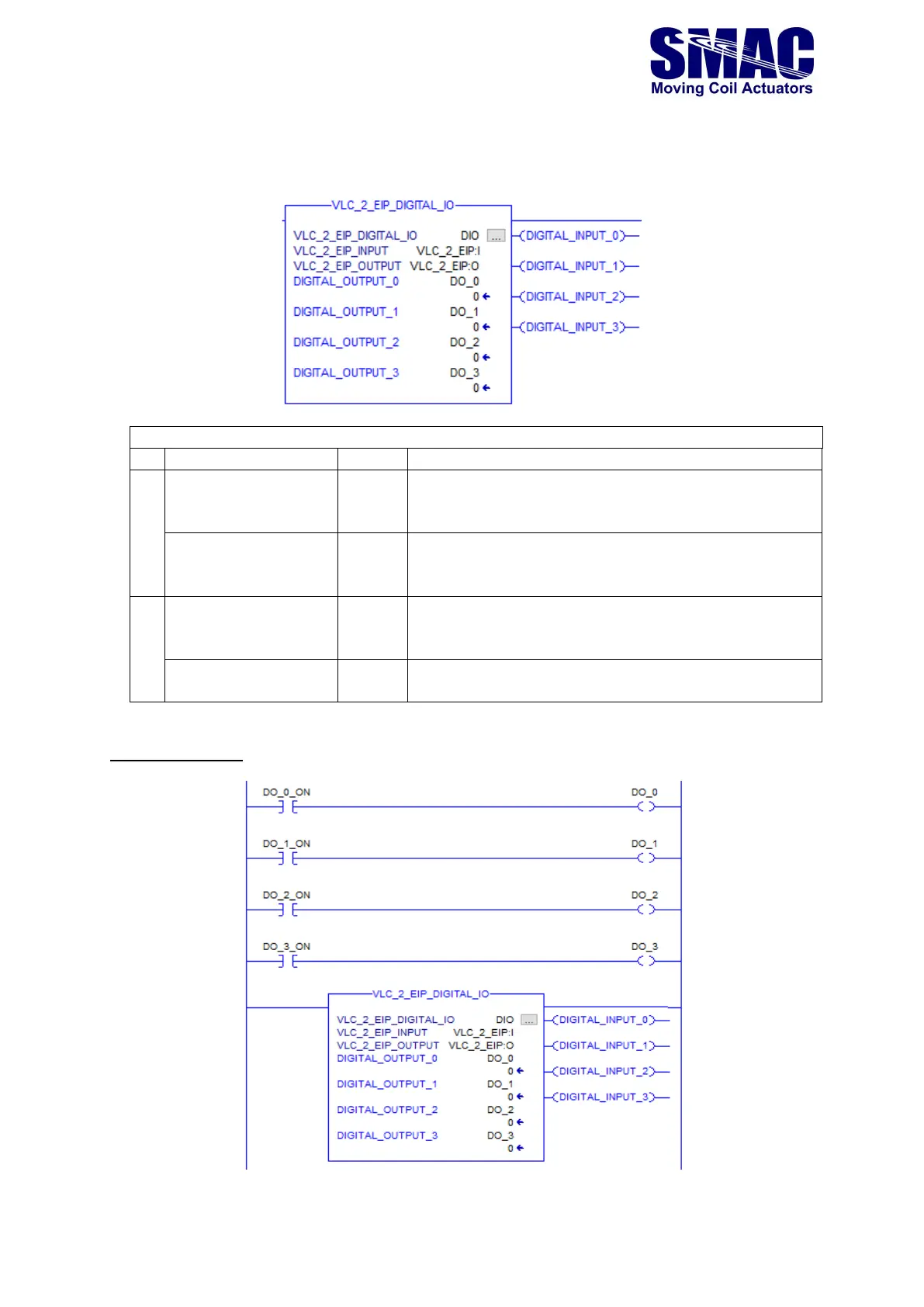

AOI usage example:
