3.4.4 Fault management
This AOI displays the type of fault that has occurred in the VLC-2-EIP and allows the fault to be
cleared.
Fault Management AOI: input and output parameters
Parameter
Unit
Description
INPUT
VLC_2_EIP_INPUT
N/A
The input data of the VLC-2-EIP as they appear in the
‘Controller Tags’. Typically under the name of
‘VLC_2_EIP:I’
Clear_fault_X1
N/A
This bit clears the indicated fault of axis 1. This is also used
to clear the STO fault.
Clear_fault_X2
N/A
This bit clears the indicated fault of axis 2. This is also used
to clear the STO fault.
OUTPUT
VLC_2_EIP_OUTPUT
N/A
The output data of the VLC-2-EIP as they appear in the
‘Controller Tags’. Typically, under the name of
‘VLC_2_EIP:O’
(fault indications
shown in the AOI)
See table 3.3 in this manual for more information on the
faults.

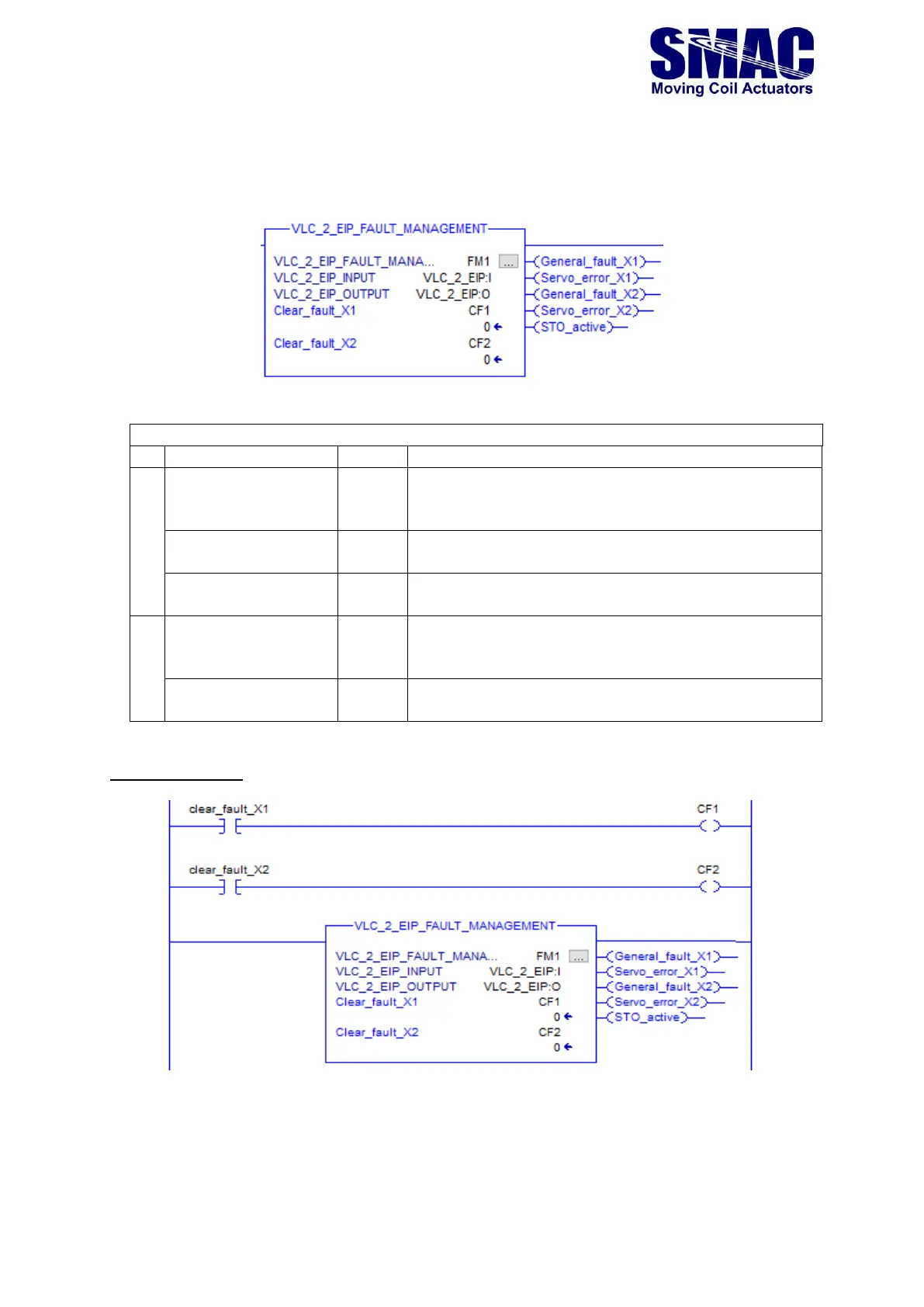

AOI usage example:
