SMAC VLC-2-EIP User Manual

9

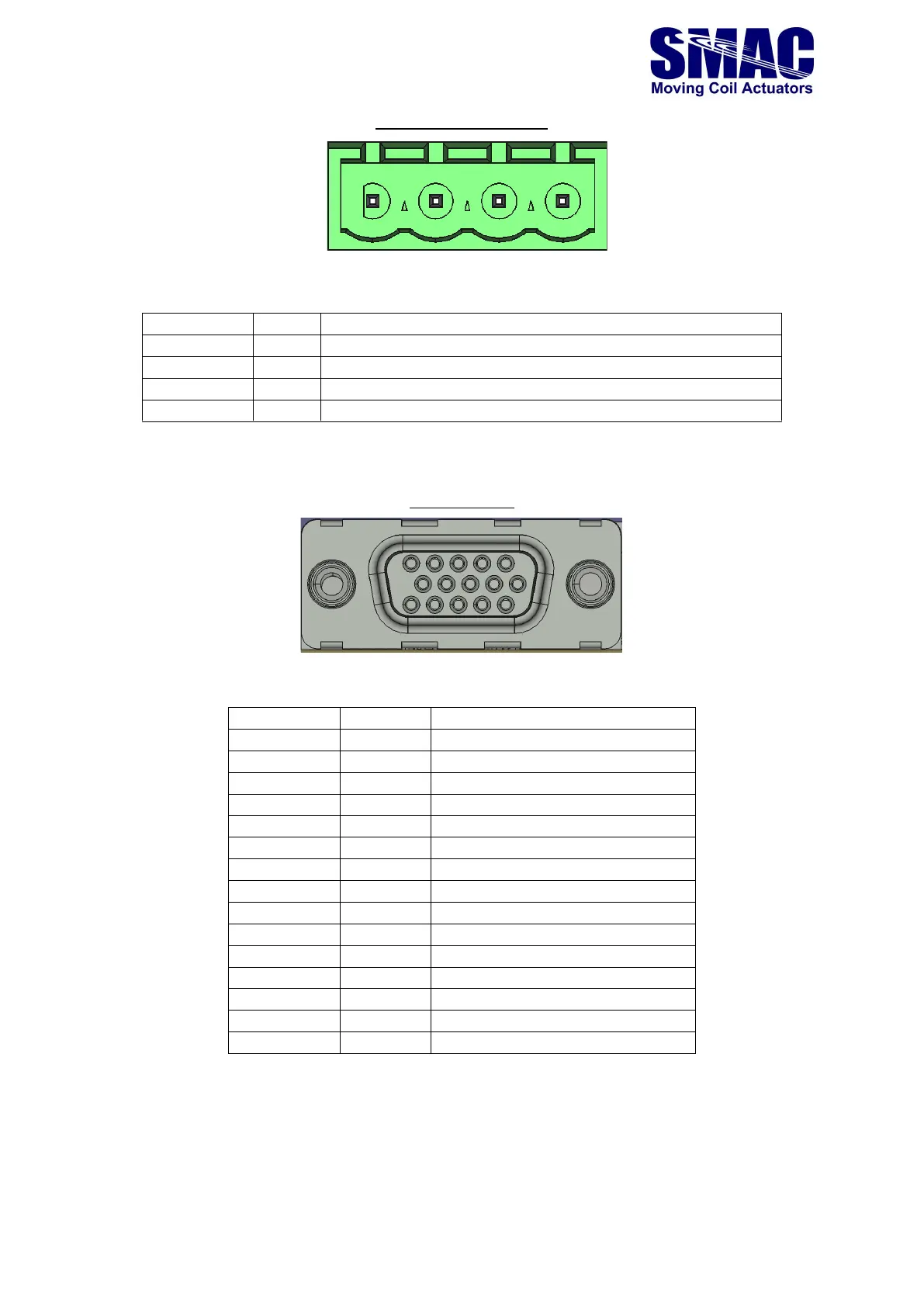

J3 – Axis 2 Motor Output
4 pin terminal block header, 5.08 mm pitch.
Pin number
Signal
Description
1
2MA
Axis 2 motor phase A/U (positive for single-phase actuators)
2
2MB
Axis 2 motor phase B/V (negative for single-phase actuators)
3
2MC
Axis 2 motor phase C/W
4
GND
Ground
J4 – Analog I/O
D-SUB 15 connector, high-density, female.
Pin number
Signal
Description
1
AN_IN2
Analog input 2, single-ended
2
AN_OUT0
Analog output 0
3
AN_OUT1
Analog output 1
4
AN_IN0+
Analog input 0, differential input +
5
AN_IN1+
Analog input 1, differential input +
6
AN_IN3
Analog input 3, single-ended
7
GND
Ground
8
GND
Ground
9
AN_IN0-
Analog input 0, differential input -
10
AN_IN1-
Analog input 1, differential input -
11
AN_IN4
Analog input 4, single-ended
12
+5V
+5V power for external circuitry
13
+5V
+5V power for external circuitry
14
GND
Ground
15
GND
Ground
1
2
3
4
1
6
5
10
11
15
