1 INTRODUCTION
• ENCODER EVALUATION SLIDE (EES): The EES is a mechanical setup comprising a movable
rail system onto which a METIRIO A1 can be mounted and a standard measuring scale. It
is intended to be used to visualize the working principle and the alignment tolerances of a
motion system comprising a METIRIO Encoder. It can be used to quickly attach a METIRIO
A1 for diagnosis since the optomechanical setup corresponds to the standard setup for ME-
TIRIO A1 encoders.
• ENCODER EVALUATION KIT (EEK): The EEK is a complete starter-kit comprising the METIRIO
A1 , the EES, the EEM and the EEP.

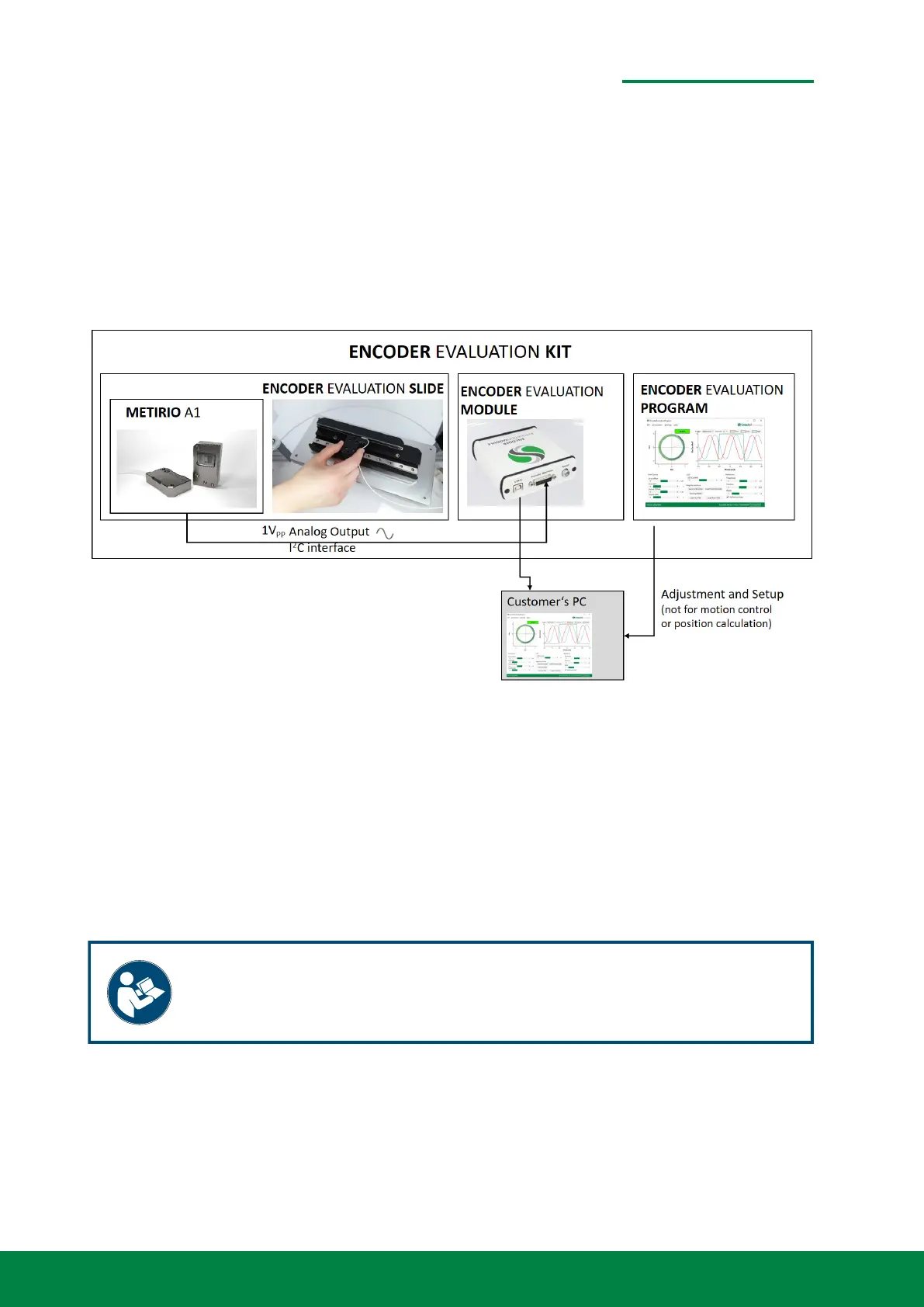

Figure 1.3: ENCODER EVALUATION KIT
1.3 Preface
This manual will help you to install and operate the METIRIO Encoder safely in its intended use
scenario. Please read this manual carefully before installing and using any METIRIO product.
This user manual supersedes all previous editions, which thereby become invalid.
NOTICE
Read this manual carefully before operating the METIRIO for the first time.
Special attention should be given to chapter 2 "Product Safety".
Any information provided to you regarding custom modifications to standard products or the com-
bination of standard products takes precedence over the general instructions.
