9| INSTALLING YOUR SMART BOARD 685IX PREMIUM INTERACTIVE
WHITEBOARD SYSTEM (APPLIANCE-BASED)
3. Connect the dual RCA audio cable from the hub to the main speaker.
4. Connect a USB cable from the hub to the main speaker.
5. Coil up and secure any excess cable inside the wall mount’s frame.
Installing additional cables
If you want to connect your interactive whiteboard system to a network, a room control
system or other peripheral audio-visual devices, connect them now using the
techniques outlined in the previous procedures and ensure that all cables are routed
through openings in the sides or bottom of the wall mount frame.
Installing the UX60 projector
WARNING
Two people are required to safely mount your UX60 projector on the wall mount
because it could be too heavy for one person to safely maneuver.

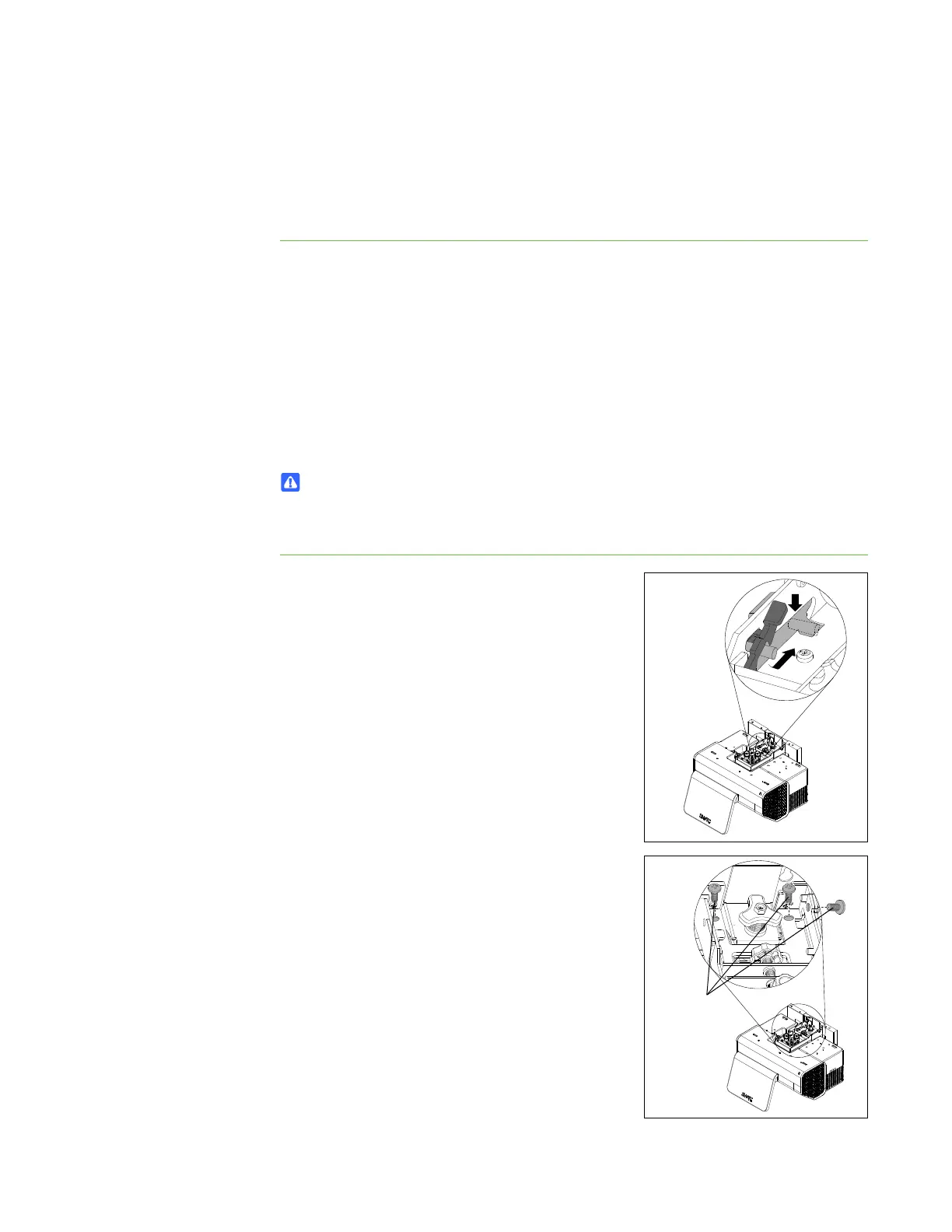

To install the UX60
projector
1. With the help of another person, fully insert the
projector adjustment module into the wall
mount bracket guide pins.
You hear a click when the adjustment module is
fully inserted and the spring is locked.
2. Using a Phillips No. 2 screwdriver, safely
secure the system using three locking screws.
3. Remove the cover from the left side of the
projector.
