Chapter 3 Connecting computers and other devices
smarttech.com/kb/171555 49
No. Connector Connects to Notes
3 USB 3.0 Type-B
connector
HDMI 3 input (touch)
See page36 and USB cables and
connectors.
4 USB 2.0 Type-A Supported USB drives,
peripherals, and other
devices
See page43 and USB cables and
connectors.
5 USB 2.0 Type-A
connector
Supported USB drives Connect a USBdrive to update the
display’s firmware.
SMARTBoard MX (V2 and V2-C) series
Connector panel

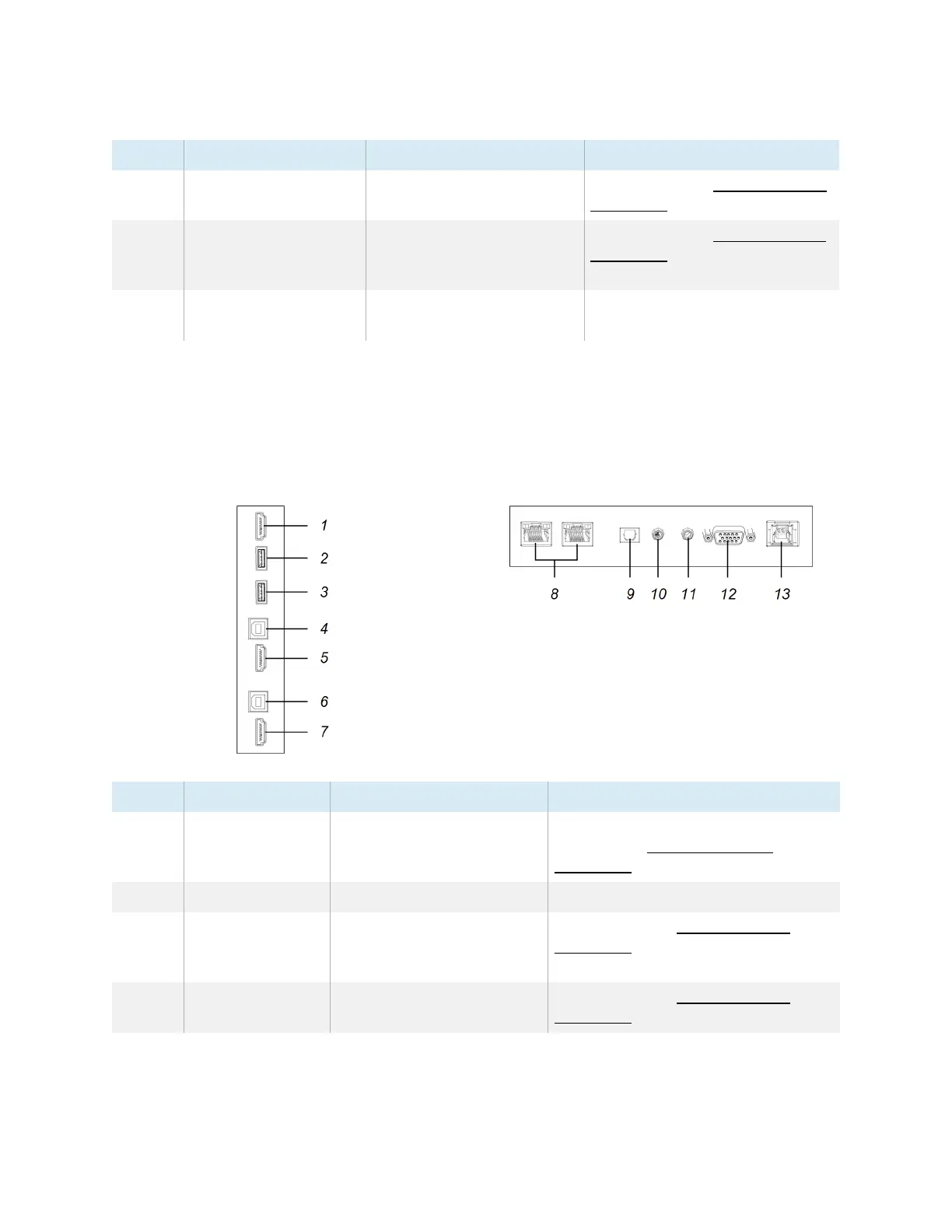

The following diagram and table present the connectors on the display’s connector panel:
Side Bottom
No. Connector Connects to Notes
1 HDMI 2.0 out External display See Connecting an external display on
page45 and HDMI cables and
connectors.
2 USB 2.0 Type-A [N/A] This connector is a service port.
3 USB 3.0 Type-A Supported USB drives,
peripherals, and other
devices
See page43 and USB cables and
connectors.
4 USB 3.0 Type-B HDMI 1 input (touch) See page36 and USB cables and
connectors.
