No. Connector Connects to Notes
2 USB 2.0 Type-A
connector
Supported USB drives Connect a USBdrive to update the
display’s firmware.
3 USB 2.0 Type-B
connector
HDMI 3 input (touch)
See page36 and USB cables and
connectors.
4 HDMI 3 input connector HDMI 3 input
(videoandaudio)
See page36 and Analog audio
cables and connectors.
5 USB Type-C input
source connector
USB Type-C input See page36 and USB cables and
connectors.
SMARTBoard MX series
Connector panel

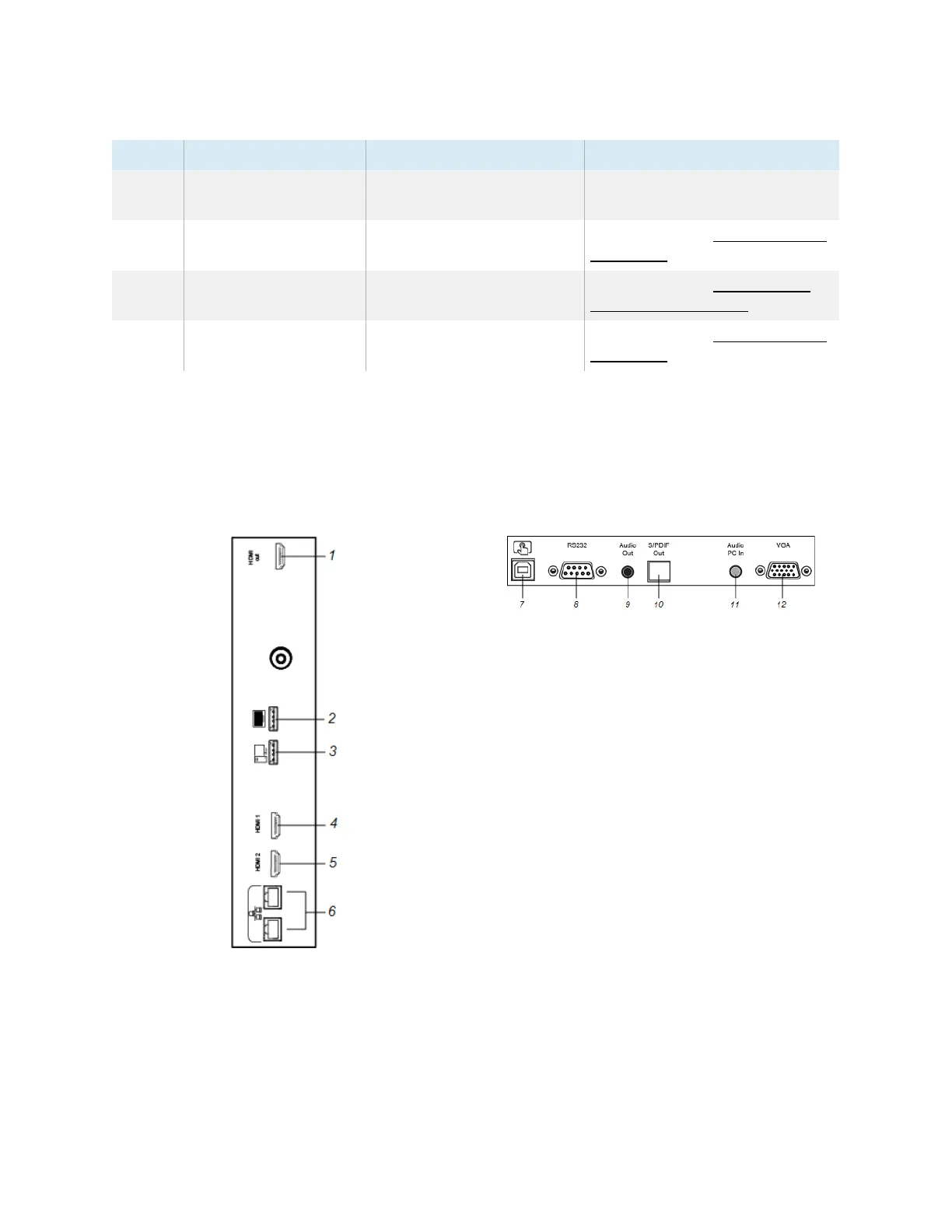

The following diagram and table present the connectors on the display’s connector panel:
